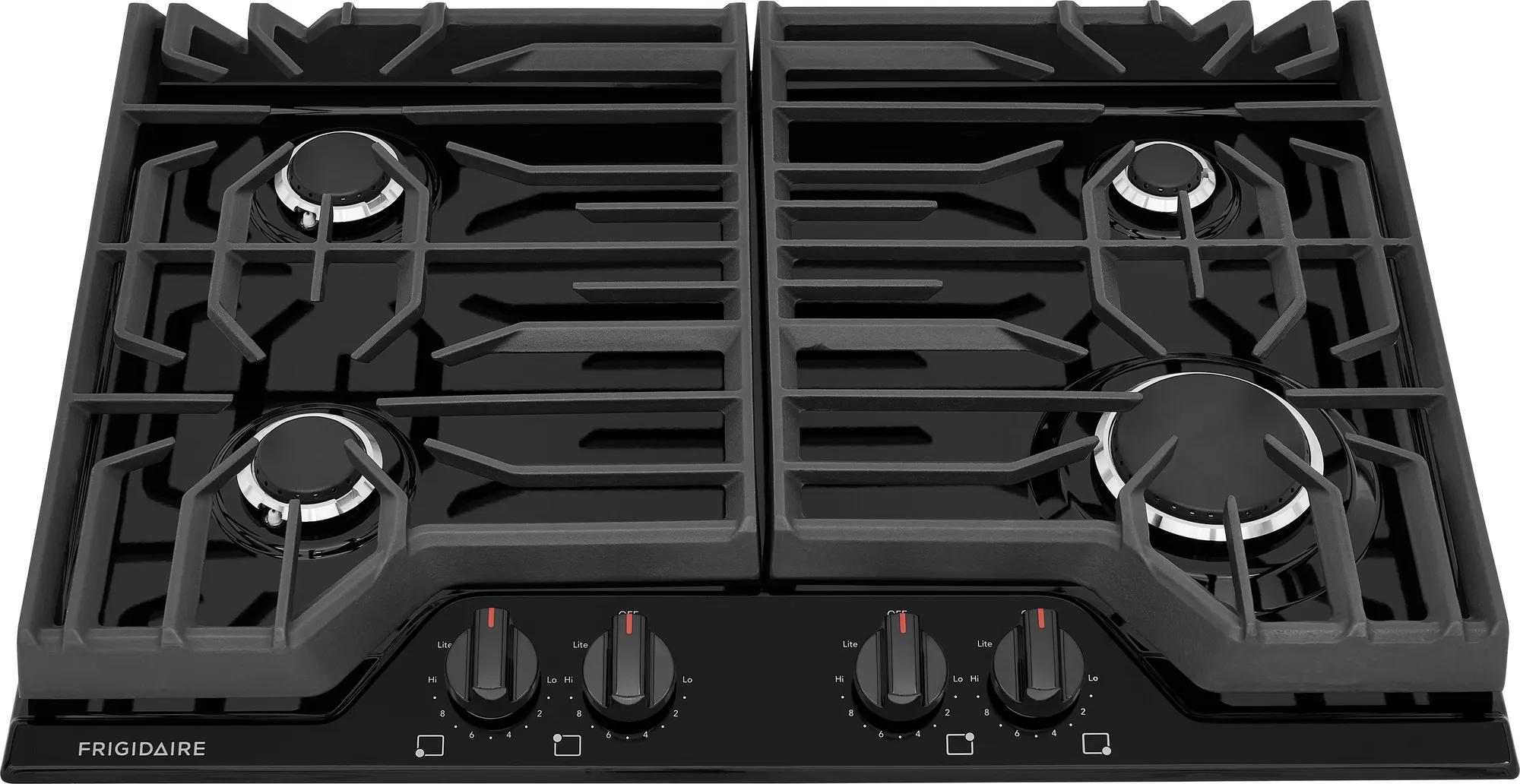

30" Gas Cooktop — Black
SKU FCCG3027AB · Model FCCG3027AB · Black
Color: Black
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire
Features in detail

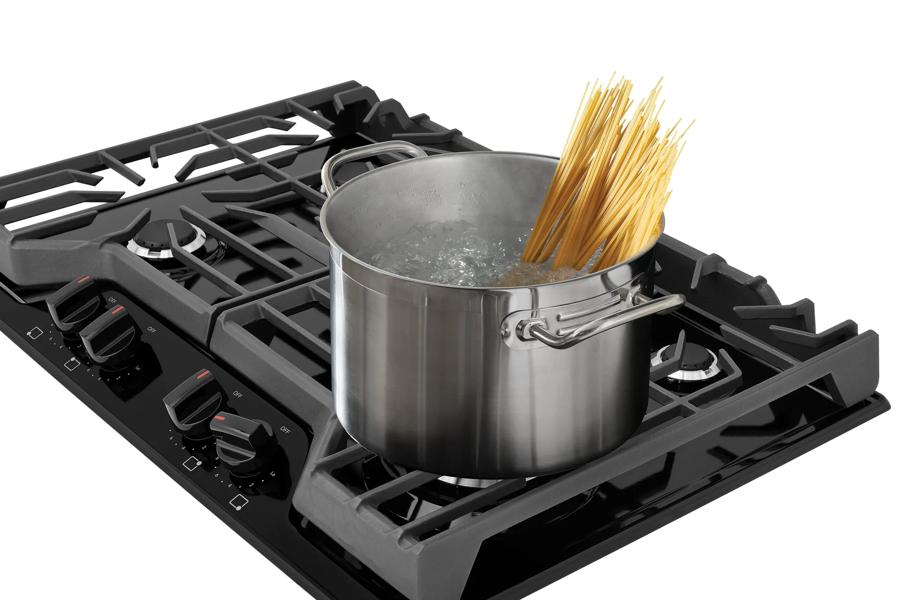

Quick Boil Burner
This powerful 16,000-BTU burner delivers high heat to help get meals on the table faster.
Multiple Burners for Flexibility
From boil to simmer, get the job done right with the 16,000 BTU power burner and the 5,000 BTU burner, perfect for delicate sauces.

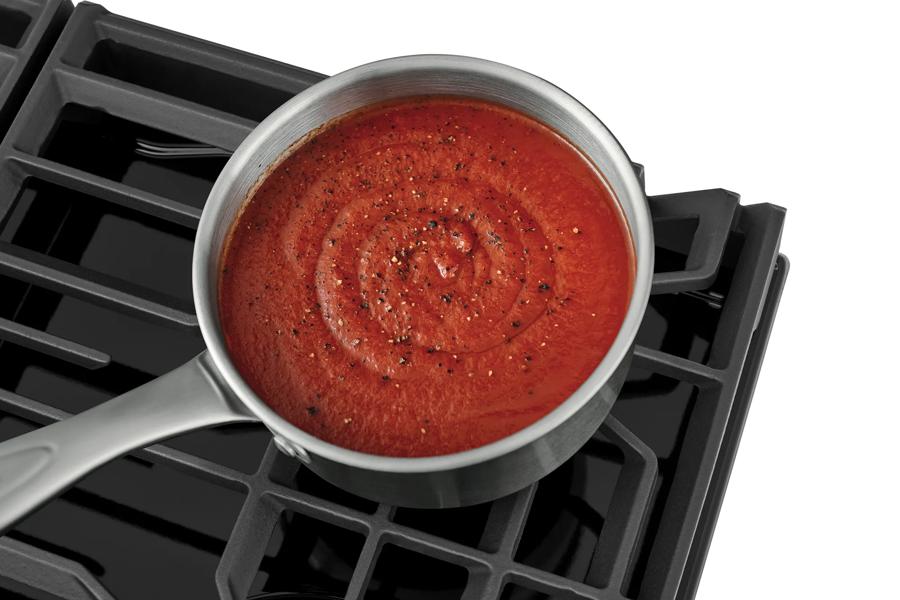

Simmer Burner
Delivers a low heat that allows you to prepare delicate foods or sauces without burning or scorching the bottom.

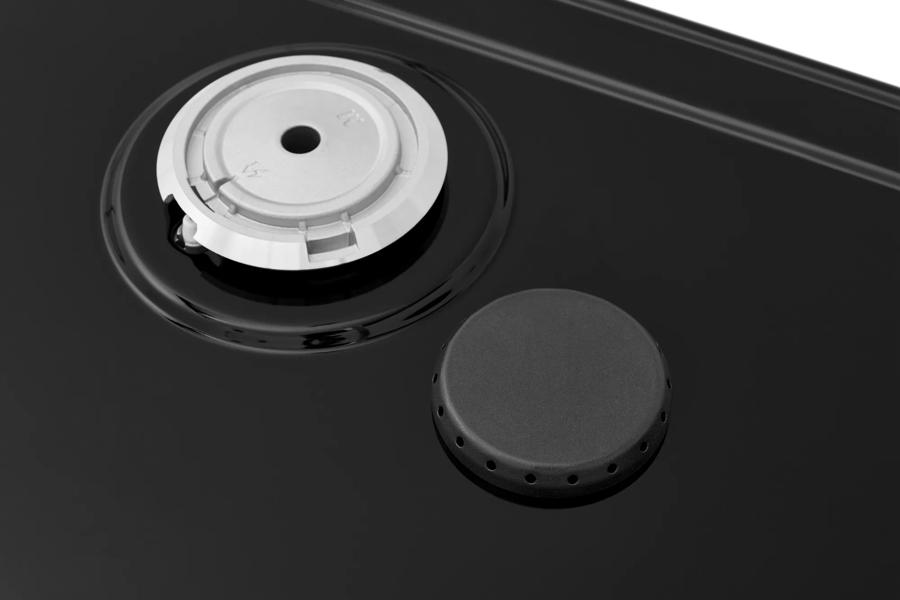

Dishwasher Safe Burner Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.

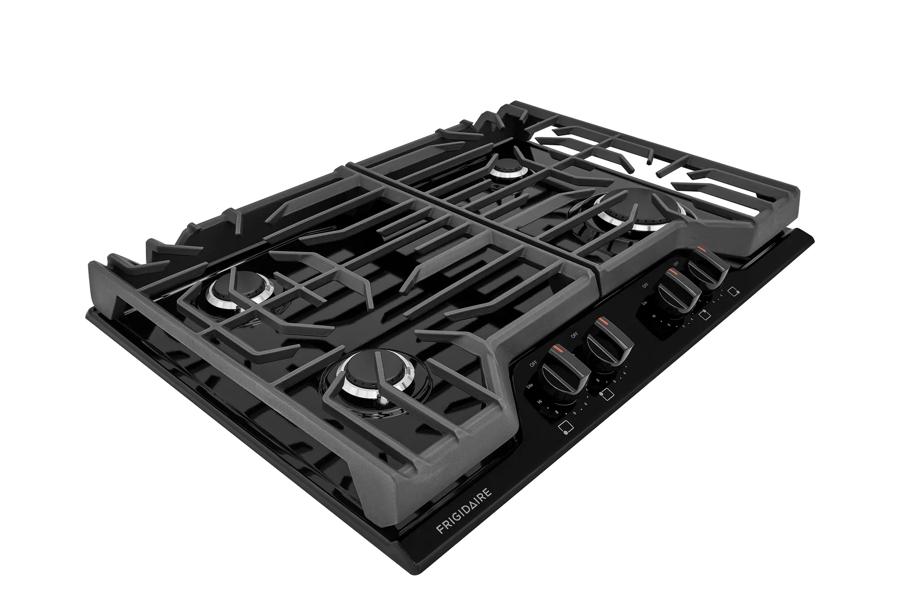

Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
Spill Safe® Cooktop
Clean-up is less of a hassle with the recessed cooktop that contains spills and common cooking messes.
Frigidaire® Fit Promise
We promise that your new 30" Frigidaire gas cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
Installation over Wall Oven Approved
Cooktops are approved for installation above any of our Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
Description
This gas cooktop is backed by our Frigidaire Fit Promise - we promise it will fit your existing cutout or we will reimburse you up to $100 for modifications.
Specifications
Configuration
- Color / Finish
- Black
Dimensions
- Cutout Depth
- 19 in
- Cutout Height
- 7.5 in
- Cutout Width
- 27.3 in
- Depth
- 21 in
- Height
- 2.4 in
- Weight
- 37 lb
- Width
- 30 in
- Maximum Cutout Depth
- 20"
- Maximum Cutout Width
- 29 5/16"
- Minimum Cutout Depth
- 19"
- Minimum Cutout Width
- 27 1/4"
Features
- ADA Compliant
- Yes
- Cooking Zones
- 4
- Cooktop Technology
- Gas
Electrical
- Amperage
- 5 A
- Voltage
- 120 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- CSA Listed
- Yes
- UL Listed
- Yes
Cooktop
- Cooking Surface Type
- Gas
- Grate Material
- Cast Iron
- Grate Quantity
- 2
- Grate Style
- Continuous
- Sealed Burners
- Yes
- Total Number of Burners
- 4
Cooktop Performance
- Left Front Element Burner
- 9500 BTU
- Left Rear Element Burner
- 9500 BTU
- Right Front Element Burner
- 16000 BTU
- Right Rear Element Burner
- 5000 BTU
Display
- Display Type
- Mechanical
Electrical Specifications
- Amps @ 120 Volts
- 5 Amps
- Voltage Rating
- 120 V
General Specifications
- Frigidaire Fit Promise
- Yes
- Product Weight
- 37 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Gas Supply Connection Location
- Top Right
- Installed Over a Wall Oven
- Yes
- LP Conversion Kit Included
- Yes
- Power Cord Included
- Yes
- Power Supply Connection Location
- Top Right
Will it fit?
The product
- Width
- 30"
- Height
- 2.44"
- Depth
- 21"
Cutout
- Cutout width
- 27¼"
- Cutout height
- 7½"
- Cutout depth
- 19"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
