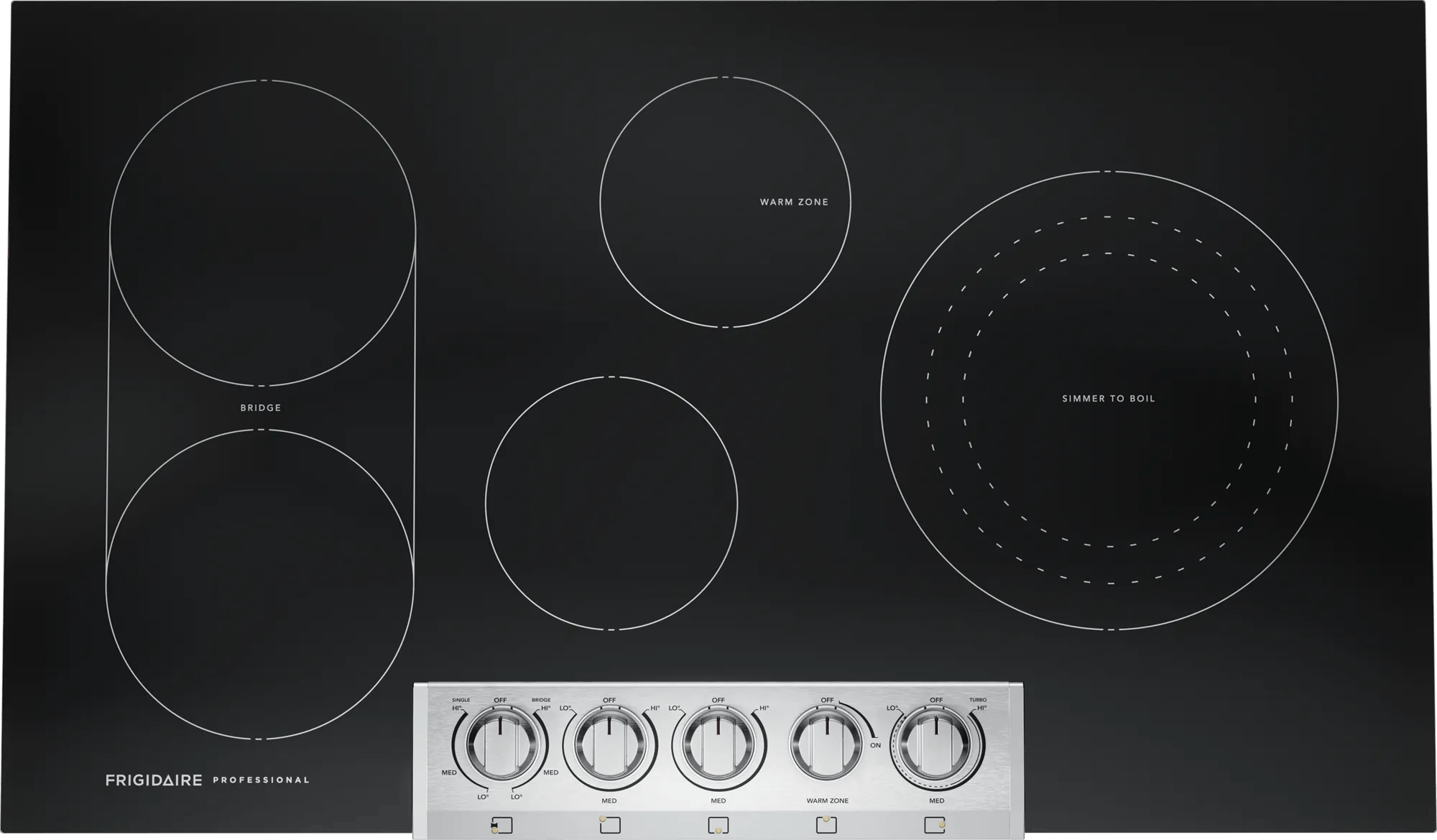

36" Electric Cooktop with PowerPlus®
SKU PCCE3680AF · Model PCCE3680AF · Stainless Steel
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire Professional
Features in detail
PowerPlus® Element
The 3,200-watt PowerPlus® Element brings water to a boil faster, while EvenTemp™ technology helps create consistently delicious meals.
Bridge Element
Connect two elements to create a larger cooking surface, perfect for griddles or large pans.
Frigidaire® Fit Promise
We promise that your new 36" Frigidaire Professional radiant cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100(1)
Keep Warm Zone
Keeps dishes warm while the rest finish so that your entire meal is ready when you are.
Backlit LED Knobs
Backlit LED knobs look great and provide visual heat awareness. White glows while cooking. Red glows after shutoff while the surface remains hot.
Front Control Design
Adjust the cooking temperature without having to reach over hot items on the cooktop
Easy-to-Clean Glass Cooktop
Wipe away spills easier the smooth ceramic glass cooktop
Installation over Wall Oven Approved
Cooktops are approved for installation above any of our Frigidaire electric wall ovens.
Smudge-Proof® Stainless Steel
Resists fingerprints and cleans easily.
ADA Compliant
Product complies with the Americans with Disabilities Act.
Description
This electric cooktop delivers the ultimate cooking flexibility with five cooktop elements, including a convenient bridge element.
Specifications
Configuration
- Color / Finish
- Stainless Steel
Dimensions
- Cutout Depth
- 19.1 in
- Cutout Height
- 5 in
- Cutout Width
- 33.9 in
- Depth
- 21.4 in
- Height
- 2.6 in
- Weight
- 39 lb
- Width
- 36.8 in
- Maximum Cutout Depth
- 20 1/2"
- Maximum Cutout Width
- 36 1/8"
- Minimum Cutout Depth
- 19 1/8"
- Minimum Cutout Width
- 33 7/8"
Features
- ADA Compliant
- Yes
- Cooktop Technology
- Radiant
Electrical
- Voltage
- 240 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- CSA Listed
- Yes
- UL Listed
- Yes
Cooktop
- Bridge Element
- Yes
- Bridge Element Location
- Left
- Cooking Surface Type
- Smooth
- Hot-Surface Indicator Light
- Yes
Cooktop Performance
- Center Front Element Burner
- 1200 Watts
- Center Front Element Burner Size
- 6"
- Center Rear Element Burner
- 100 Watts
- Keep Warm Burner Location
- Center Rear
- Left Front Element Burner
- 1800 Watts
- Left Front Element Burner Size
- 7"
- Left Rear Element Burner
- 1800 Watts
- Left Rear Element Burner Size
- 7"
- Right Front Element Burner
- 3200 Watts
- Right Front Element Burner Size
- 9"
Display
- Display Type
- Mechanical
Electrical Specifications
- Connected Load @ 240V
- 8.1 kW
- Minimum Circuit Required
- 40 Amps
- Voltage Rating
- 240 V
General Specifications
- Frigidaire Fit Promise
- Yes
- Product Weight
- 39 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Installed Over a Wall Oven
- Yes
Will it fit?
The product
- Width
- 36¾"
- Height
- 2⅝"
- Depth
- 21⅜"
Cutout
- Cutout width
- 33⅞"
- Cutout height
- 5"
- Cutout depth
- 19⅛"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
