30" Electric Range with Steam Clean — White (FCFE3062AW)
SKU FCFE3062AW · Model FCFE3062AW · White
Color: White
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire
Features in detail
PowerPlus® Element
The 3,200-watt PowerPlus® Element brings water to a boil faster, while EvenTemp™ technology helps create consistently delicious meals.

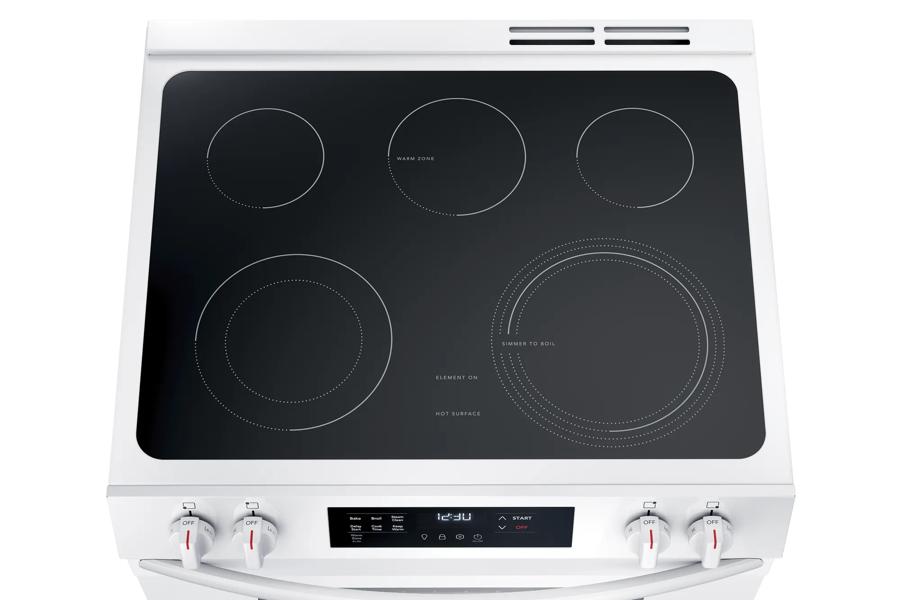

Five Element Cooktop
Designed to meet all of your cooking needs with a 3,200-watt PowerPlus® Element, Dual Expandable Element, and convenient Keep Warm Zone.
Even Baking Technology
Designed to deliver even baking results, every time.
30-Minute Steam Clean
A light, 30-minute oven cleaning that's chemical-free, odor-free and fast.
SpaceWise® Dual Expandable Element
Our convenient 2-in-1 element expands from 6" for smaller pots to 9" for larger cookware, providing more cooktop flexibility.
Extra Wide Store-More™ Storage Drawer
Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
Extra-Large Oven Capacity
Cook more at once with our extra-large 5.3 cu.ft. capacity oven.
Built-in Design
Get the look of a built-in range, without the remodel. This Front Control Range easily fits the space of your existing 30" range.
Frigidaire® Fit Promise
We promise that your new 30" Frigidaire front control range will fit your existing range cutout of the same width and configuration, or we will reimburse you up to one hundred dollars for professionally modifying the countertop.
Hidden Bake Element
Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
Cooktop Keep Warm Zone
Keep food warm until everything - and everyone - is ready.
Description
Features a 30-minute Steam Clean cycle that is chemical-free, odor-free and fast.
Specifications
Configuration
- Built-In
- Yes
- Color / Finish
- White
- Installation Type
- Built-In
Capacity
- Oven Capacity
- 5.3 cu. ft.
Dimensions
- Depth
- 28.5 in
- Depth (door open)
- 47.3 in
- Depth (without door)
- 26 in
- Height
- 35.4 in
- Weight
- 149 lb
- Width
- 30 in
- Depth (as published)
- 26"
- Depth With Door 90° Open
- 47 5/16"
- Depth With Handle
- 28 1/2"
- Maximum Height
- 36 3/8"
- Minimum Height
- 35 3/8"
- Oven Interior Depth
- 19 7/8"
- Oven Interior Height
- 18 1/8"
- Oven Interior Width
- 25 3/16"
Features
- ADA Compliant
- Yes
- Cooktop Technology
- Radiant
- Sabbath Mode
- No
Energy
- ENERGY STAR Certified
- Yes
Electrical
- Amperage
- 50 A
- Voltage
- 240 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- cUL Listed
- Yes
- UL Listed
- Yes
Controls
- Control Lock
- No
Cooking Controls
- Bake
- Yes
- Broil
- Yes
- Cancel
- Yes
- Clear Off
- Yes
- Clock
- Yes
- Cook Time
- Yes
- Delay Start
- Yes
- Keep Warm
- Yes
- Kitchen Timer
- Yes
- Lockout
- Yes
- On / Off (for each element)
- Yes
- Oven Light
- Yes
- Preheat
- Yes
- Probe
- No
- Steam Clean
- Yes
- Temperature Display
- Yes
- Timed Bake
- Yes
- Timer On / Off
- Yes
- Warm Zone
- Yes
Cooking Controls Function
- Delayed Bake
- Yes
- Program Fahrenheit or Celsius
- Yes
- Silent Control Panel
- Yes
Cooktop
- Cooking Surface Type
- Smooth
- Element On Indicator Light
- Yes
- Hot-Surface Indicator Light
- Yes
Cooktop Performance
- Center Rear Element Burner
- 100 Watts
- Left Front Element Burner (Large)
- 3000 Watts
- Left Front Element Burner (Small)
- 1400 Watts
- Left Front Element Burner Size (Large)
- 9"
- Left Front Element Burner Size (Small)
- 6"
- Left Rear Element Burner
- 1200 Watts
- Left Rear Element Burner Size
- 6"
- Right Front Element Burner
- 3200 Watts
- Right Front Element Burner Size
- 9"
- Right Rear Element Burner
- 1200 Watts
- Right Rear Element Burner Size
- 6"
Display
- Display Interface Color
- White
- Display Type
- Capacitive Touch
Drawer
- Drawer Handle Style
- Integrated
- Drawer Type
- Storage
Electrical Specifications
- Connected Load @ 240V
- 12 kW
- Minimum Circuit Required
- 40 Amps
- Voltage Rating
- 240 V
General Specifications
- AB-1200
- Information available at frigidaire.com/en/ab1200
- Frigidaire Fit Promise
- Yes
- Product Weight
- 149 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Oven
- Bake Element
- 2500 Watts
- Bake Element Pass
- 8
- Bake Element Type
- Hidden
- Bake System
- Yes
- Broil Element
- 3000 Watts
- Broil Element Pass
- 4
- Broil System
- Yes
- Cleaning System
- Yes
- Number of Rack Positions
- 6
- Oven Interior Color
- Midnight Black
- Oven Light Quantity
- 1
- Oven Light Type
- Halogen
- Oven Light Watts
- 40 Watts
- Rack Position Type
- Embossed
- Rack Type 1
- Flat
- Rack Type 1 Quantity
- 2
Will it fit?
The product
- Width
- 30"
- Height
- 35⅜"
- Depth
- 28½"
- Depth without doorhow far it sits into the room
- 26"
Installed, with the door open
- Depth, door openhow far it projects in use
- 47.31"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
