30" Gas Range with Steam Clean — Black (FCFG3062AB)
SKU FCFG3062AB · Model FCFG3062AB · Black
Color: Black
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire
Features in detail
PowerPlus® Burner
This powerful 18,000-BTU PowerPlus® Burner delivers rapid heat for quick boils, while EvenTemp™ technology helps keep heat evenly distributed for consistent results - ideal for everyday cooking.

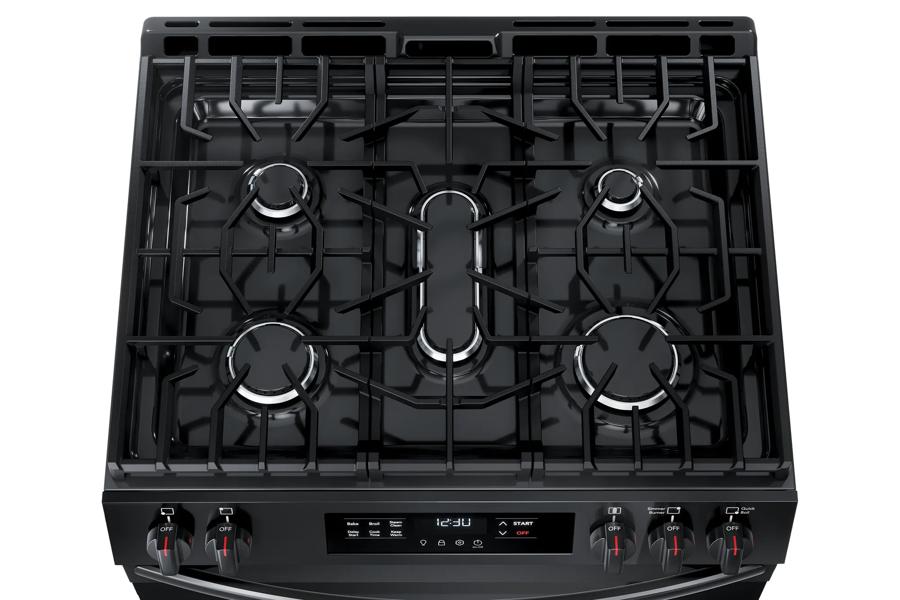

Five Burner Cooktop
Designed to meet all of your cooking needs with a 5,000-BTU simmer burner, 10,000-BTU center oval burner, and 18,000-BTU PowerPlus® Burner.
Even Baking Technology
Designed to deliver even baking results, every time.
30-Minute Steam Clean
A light, 30-minute oven cleaning that's chemical-free, odor-free and fast.

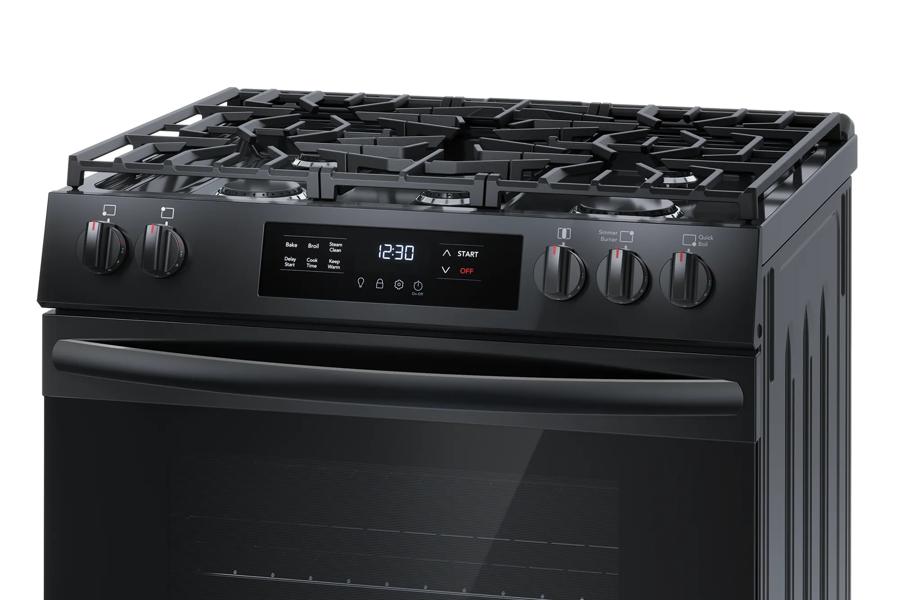

Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.

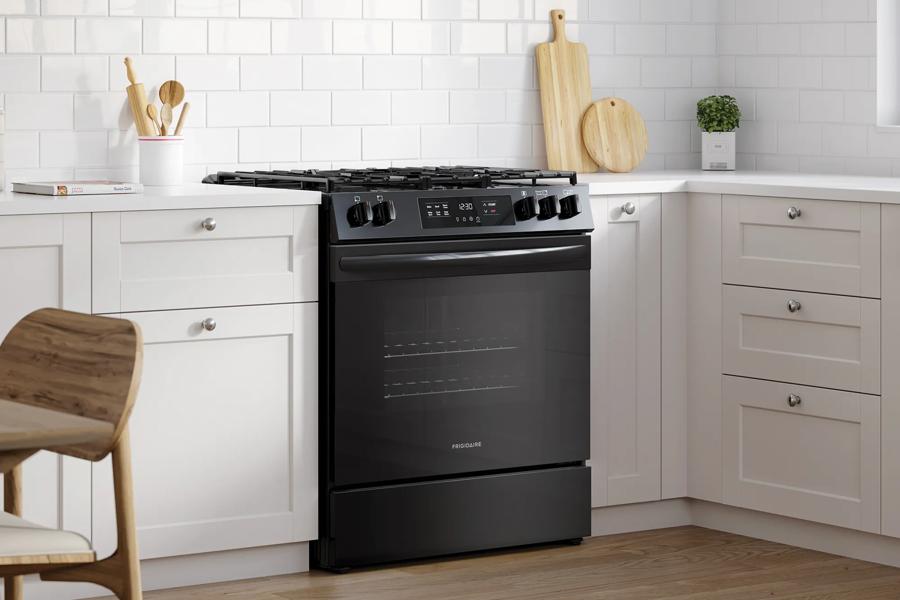

Built-in Design
Get the look of a built-in range, without the remodel. This Front Control Range easily fits the space of your existing 30" range.
Frigidaire® Fit Promise
We promise that your new 30" Frigidaire front control range will fit your existing range cutout of the same width and configuration, or we will reimburse you up to one hundred dollars for professionally modifying the countertop.
Extra Wide Store-More™ Storage Drawer
Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
5.1 Cu. Ft. Oven Capacity
Cook more at once with our large oven capacity.
Dishwasher Safe Burner Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
Hidden Bake Element
Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
Description
This gas range features five cooktop burners, including a powerful 18,000-BTU PowerPlus® Burner.
Specifications
Configuration
- Color / Finish
- Black
Capacity
- Oven Capacity
- 5.1 cu. ft.
Dimensions
- Depth
- 28.5 in
- Depth (door open)
- 47.3 in
- Depth (without door)
- 26 in
- Height
- 35.6 in
- Weight
- 175 lb
- Width
- 30 in
- Depth (as published)
- 26"
- Depth With Door 90° Open
- 47 1/4"
- Depth With Handle
- 28 1/2"
- Maximum Height
- 36 3/8"
- Minimum Height
- 35 5/8"
- Oven Interior Depth
- 19 7/8"
- Oven Interior Height
- 17 5/8"
- Oven Interior Width
- 25 3/16"
Features
- ADA Compliant
- Yes
- Child Lock
- Yes
- Cooking Zones
- 5
- Cooktop Technology
- Gas
Electrical
- Amperage
- 12 A
- Voltage
- 120 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- CSA Listed
- Yes
Cooking Controls
- Bake
- Yes
- Broil
- Yes
- Clock
- Yes
- Cook Time
- Yes
- Delay Start
- Yes
- Keep Warm
- Yes
- Kitchen Timer
- Yes
- Off
- Yes
- Oven Light
- Yes
- Preheat
- Yes
- Start
- Yes
- Steam Clean
- Yes
- Temperature Display
- Yes
- Timer On / Off
- Yes
- Up / Down Arrow
- Yes
Cooking Controls Function
- Change between Continuous Bake Setting or 12-Hour Energy Saving Feature
- Yes
- Delayed Bake
- Yes
- Program Fahrenheit or Celsius
- Yes
- Silent Control Panel
- Yes
Cooktop
- Cooking Surface Type
- Gas
- Grate Material
- Cast Iron
- Grate Quantity
- 3
- Grate Style
- Continuous
- Sealed Burners
- Yes
- Total Number of Burners
- 5
Cooktop Performance
- Center Rear Element Burner
- 10000 BTU
- Left Front Element Burner
- 14000 BTU
- Left Rear Element Burner
- 10000 BTU
- Right Front Element Burner
- 18000 BTU
- Right Rear Element Burner
- 5000 BTU
Display
- Display Interface Color
- White
- Display Type
- Capacitive Touch
Drawer
- Drawer Type
- Storage
Electrical Specifications
- Amps @ 120 Volts
- 12 Amps
- Voltage Rating
- 120 V
General Specifications
- AB-1200
- Information available at frigidaire.com/en/ab1200
- Frigidaire Fit Promise
- Yes
- Product Weight
- 175 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Adjustable Leveling Legs
- Yes
Oven
- Bake Element
- 17000 BTU
- Broil Element
- 1400 Watts
- Cleaning System
- Yes
- Number of Rack Positions
- 6
- Oven Interior Color
- Midnight Black
- Oven Light Quantity
- 1
- Oven Light Type
- Halogen
- Oven Light Watts
- 40 Watts
- Rack Position Type
- Embossed
- Rack Type 1
- Flat
- Rack Type 1 Quantity
- 2
Will it fit?
The product
- Width
- 30"
- Height
- 35⅝"
- Depth
- 28½"
- Depth without doorhow far it sits into the room
- 26"
Installed, with the door open
- Depth, door openhow far it projects in use
- 47¼"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
