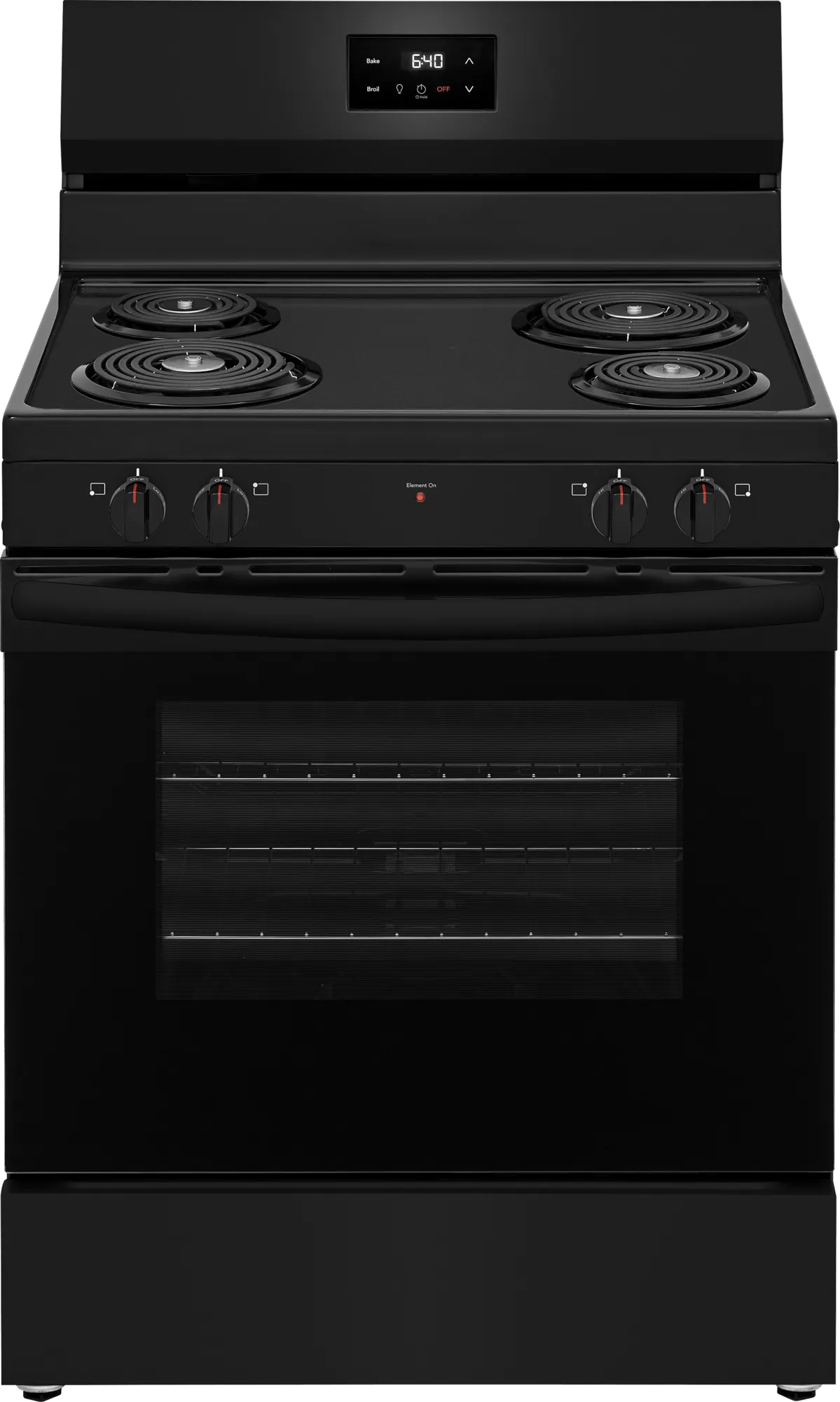

30" Electric Range — Black (FCRC3012BB)
SKU FCRC3012BB · Model FCRC3012BB · Black
Color: Black
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire
Features in detail
Even Baking Technology
Designed to deliver even baking results, every time.
Hi/Lo Broil Options
Offers two-position broiling and variable temperature control.
5.3 Cu. Ft. Oven Capacity
Large oven capacity allows you to cook more at once.
Four Cooktop Elements
Cooktop features two 8" coils and two 6" coils to handle all of your cooking needs.
Store-More™ Storage Drawer
For storage of your unused oven racks, baking trays and more
Large Oven Window
Our large oven window makes it easier to check on the status of your dish without having to open the oven door
Cooktop Indicator Lights
Indicator lights let you know when the cooktop is still hot.
Description
Features a large, 5.3 cu. ft. capacity oven and a 4-element electric cooktop.
Specifications
Configuration
- Color / Finish
- Black
Capacity
- Oven Capacity
- 5.3 cu. ft.
Dimensions
- Depth
- 28.5 in
- Depth (door open)
- 47.3 in
- Depth (without door)
- 26 in
- Height
- 46.8 in
- Weight
- 128.3 lb
- Width
- 30 in
- Depth (as published)
- 26"
- Depth With Door 90° Open
- 47 5/16"
- Depth With Handle
- 28 1/2"
- Maximum Height
- 47 3/4"
- Minimum Height
- 46 3/4"
- Oven Interior Depth
- 19 7/8"
- Oven Interior Height
- 18 1/8"
- Oven Interior Width
- 25 3/16"
Features
- ADA Compliant
- No
- Cooktop Technology
- Coil
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- UL Listed
- Yes
Cooking Controls
- Bake
- Yes
- Broil
- Yes
- Kitchen Timer
- Yes
- Off
- Yes
- Oven Light
- Yes
- Preheat
- Yes
- Temperature Display
- Yes
- Timer On / Off
- Yes
- Up / Down Arrow
- Yes
Cooktop
- Cooking Surface Type
- Coil
- Drip Bowl Type
- Porcelain
Cooktop Performance
- Left Front Element Burner
- 2400 Watts
- Left Front Element Burner Size
- 8"
- Left Rear Element Burner
- 1500 Watts
- Left Rear Element Burner Size
- 6"
- Right Front Element Burner
- 1500 Watts
- Right Front Element Burner Size
- 6"
- Right Rear Element Burner
- 2400 Watts
- Right Rear Element Burner Size
- 8"
Display
- Display Interface Color
- White
- Display Type
- Tactile
Drawer
- Drawer Handle Style
- Integrated
- Drawer Type
- Storage
General Specifications
- Product Weight
- 128.25 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Adjustable Leveling Legs
- Yes
Oven
- Bake Element
- 2600 Watts
- Bake Element Pass
- 4
- Bake Element Type
- Raised
- Broil Element
- 3000 Watts
- Broil Element Pass
- 4
- Number of Rack Positions
- 6
- Oven Interior Color
- Midnight Black
- Oven Light Quantity
- 1
- Oven Light Type
- Halogen
- Oven Light Watts
- 40 Watts
- Rack Position Type
- Embossed
- Rack Type 1
- Flat
- Rack Type 1 Quantity
- 2
Will it fit?
The product
- Width
- 30"
- Height
- 46¾"
- Depth
- 28½"
- Depth without doorhow far it sits into the room
- 26"
Installed, with the door open
- Depth, door openhow far it projects in use
- 47.31"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
