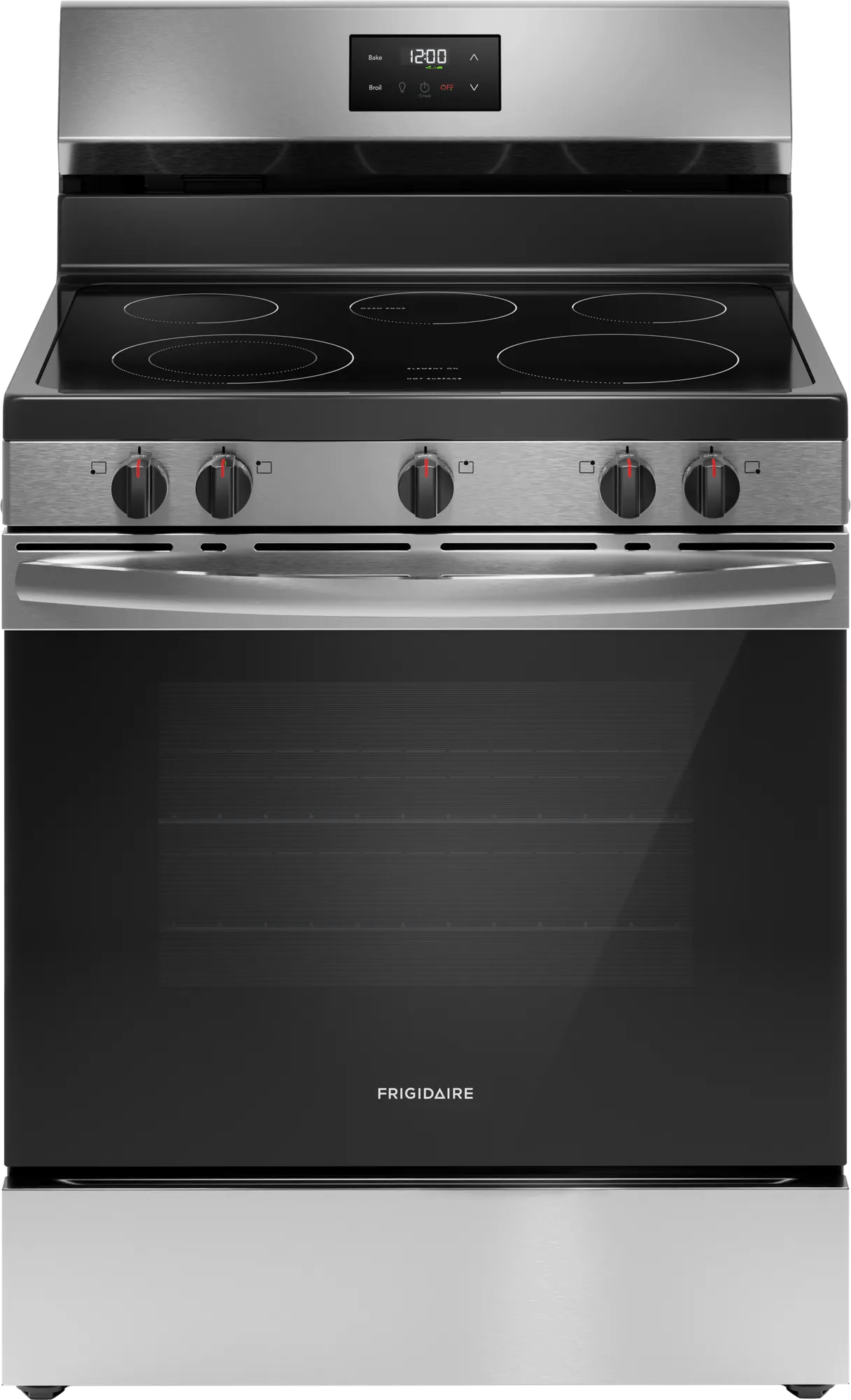

30" Electric Range — Stainless Steel (FCRE3052BS)
SKU FCRE3052BS · Model FCRE3052BS · Stainless Steel
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire
Features in detail
Quick Boil Element
Get meals to the table faster with the powerful 3,000W Quick Boil element.
Five Element Cooktop
Experience ultimate cooking flexibility with a cooktop that has five elements designed to handle all of your cooking needs.
Even Baking Technology
Designed to deliver even baking results, every time.
SpaceWise® Dual Expandable Element
Get two elements in one with the Dual Expandable element - a 6" inner ring for smaller pots and pans and a 9" outer ring for larger cookware.
5.3 Cu. Ft. Oven Capacity
Large oven capacity allows you to cook more at once.
Extra Wide Store-More™ Storage Drawer
Redesigned to be even wider - allowing you to store any unused oven racks, baking trays and more!
Cooktop Keep Warm Zone
Keep food warm until everything - and everyone - is ready.
Proudly Assembled in the USA
Description
This electric range features a versatile cooktop, including a powerful Quick Boil Element and 2-in-1 Dual Expandable element.
Specifications
Configuration
- Color / Finish
- Stainless Steel
Capacity
- Oven Capacity
- 5.3 cu. ft.
Dimensions
- Depth
- 28.5 in
- Depth (door open)
- 47.3 in
- Depth (without door)
- 26 in
- Height
- 46.8 in
- Weight
- 160 lb
- Width
- 30 in
- Depth (as published)
- 26"
- Depth With Door 90° Open
- 47 5/16"
- Depth With Handle
- 28 1/2"
- Maximum Height
- 47 3/4"
- Minimum Height
- 46 3/4"
- Oven Interior Depth
- 19 7/8"
- Oven Interior Height
- 18 1/8"
- Oven Interior Width
- 25 3/16"
Features
- Cooktop Technology
- Radiant
Electrical
- Voltage
- 240 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- RoHS
- Yes
- UL Listed
- Yes
Cooking Controls
- Bake
- Yes
- Broil
- Yes
- Kitchen Timer
- Yes
- Off
- Yes
- Oven Light
- Yes
- Preheat
- Yes
- Up / Down Arrow
- Yes
- Warm Zone
- Yes
Cooking Controls Function
- Program Fahrenheit or Celsius
- Yes
Cooktop
- Cooking Surface Type
- Smooth
- Element On Indicator Light
- Yes
- Hot-Surface Indicator Light
- Yes
Cooktop Performance
- Center Rear Element Burner
- 100 Watts
- Keep Warm Burner Location
- Center Rear
- Left Front Element Burner (Large)
- 3000 Watts
- Left Front Element Burner (Small)
- 1400 Watts
- Left Front Element Burner Size (Large)
- 9"
- Left Front Element Burner Size (Small)
- 6"
- Left Rear Element Burner
- 1200 Watts
- Left Rear Element Burner Size
- 6"
- Right Front Element Burner
- 3000 Watts
- Right Front Element Burner Size
- 9"
- Right Rear Element Burner
- 1200 Watts
- Right Rear Element Burner Size
- 6"
Display
- Display Interface Color
- White
- Display Type
- LED
Drawer
- Drawer Handle Style
- Integrated
- Drawer Type
- Storage
Electrical Specifications
- Connected Load @ 240V
- 12 kW
- Minimum Circuit Required
- 40 Amps
- Voltage Rating
- 240 V
General Specifications
- AB-1200
- Information available at frigidaire.com/en/ab1200
- Frigidaire Fit Promise
- Yes
- Product Weight
- 160 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Adjustable Leveling Legs
- Yes
Oven
- Bake Element
- 2600 Watts
- Bake Element Pass
- 4
- Bake Element Type
- Raised
- Broil Element
- 3000 Watts
- Broil Element Pass
- 4
- Number of Rack Positions
- 6
- Oven Interior Color
- Midnight Black
- Oven Light Quantity
- 1
- Oven Light Type
- Halogen
- Oven Light Watts
- 40 Watts
- Rack Position Type
- Embossed
- Rack Type 1
- Flat
- Rack Type 1 Quantity
- 2
Will it fit?
The product
- Width
- 30"
- Height
- 46¾"
- Depth
- 28½"
- Depth without doorhow far it sits into the room
- 26"
Installed, with the door open
- Depth, door openhow far it projects in use
- 47.31"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
