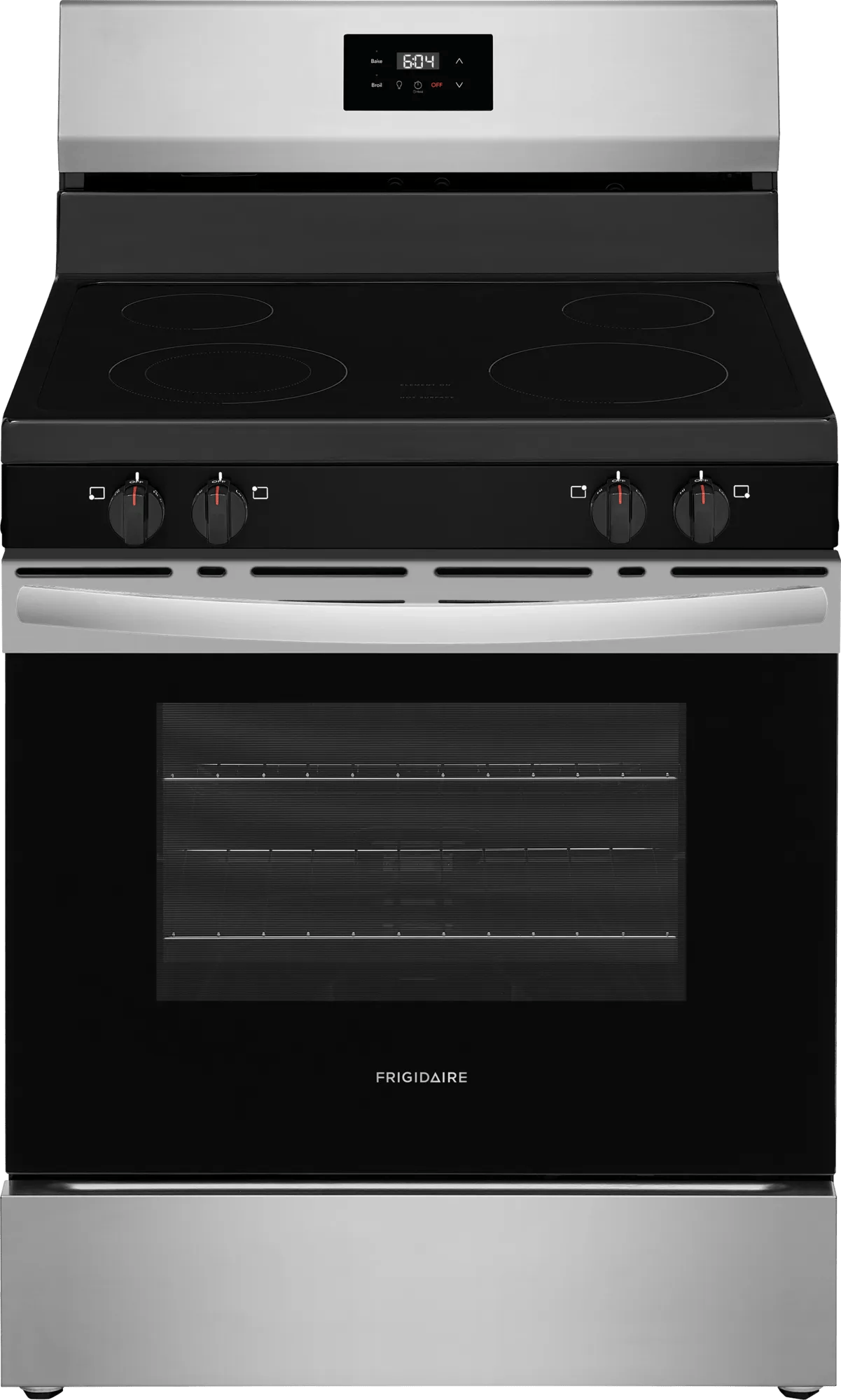

30" Rear Control Electric Range — Stainless Steel (FCREH050BS)
SKU FCREH050BS · Model FCREH050BS · Stainless Steel
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire
Features in detail
Four Cooktop Elements
This cooktop is designed to handle all of your cooking needs - includes our powerful 3,000-Watt Quick Boil Element and Dual Expandable Element.
Even Baking Technology
Designed to deliver even baking results, every time.
Large Oven Capacity
Cook more at once with our large, 5.3 cu.ft. capacity oven.
Quick Boil Element
Get meals to the table faster with the powerful 3,000W Quick Boil element.
2-in-1 Dual Element
Get two elements in one with the Dual Expandable element. Features a 6" inner ring for smaller pots and pans and a 9" outer ring for larger cookware.
Store-More™ Storage Drawer
Full-width storage drawer allows you to store baking pans or unused oven racks.
Sleek Edge-to-Edge Design
Features a sleek and modern edge-to-edge glass design with a stainless-steel top trim.
Description
Features our Even Baking Technology for consistent results, every time.
Specifications
Configuration
- Color / Finish
- Stainless Steel
Capacity
- Oven Capacity
- 5.3 cu. ft.
Dimensions
- Depth
- 28.5 in
- Depth (door open)
- 47.3 in
- Depth (without door)
- 26 in
- Height
- 46.8 in
- Weight
- 160 lb
- Width
- 30 in
- Depth (as published)
- 26"
- Depth With Door 90° Open
- 47 5/16"
- Depth With Handle
- 28 1/2"
- Maximum Height
- 47 3/4"
- Minimum Height
- 46 3/4"
- Oven Interior Depth
- 19 7/8"
- Oven Interior Height
- 18 1/8"
- Oven Interior Width
- 25 3/16"
Features
- Cooktop Technology
- Radiant
Electrical
- Voltage
- 240 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- UL Listed
- Yes
Cooking Controls
- Bake
- Yes
- Broil
- Yes
- Kitchen Timer
- Yes
- Off
- Yes
- Oven Light
- Yes
- Preheat
- Yes
- Up / Down Arrow
- Yes
Cooking Controls Function
- Program Fahrenheit or Celsius
- Yes
Cooktop
- Cooking Surface Type
- Smooth
- Element On Indicator Light
- Yes
- Hot-Surface Indicator Light
- Yes
Cooktop Performance
- Left Front Element Burner (Large)
- 3000 Watts
- Left Front Element Burner (Small)
- 1400 Watts
- Left Front Element Burner Size (Large)
- 9"
- Left Front Element Burner Size (Small)
- 6"
- Left Rear Element Burner
- 1200 Watts
- Left Rear Element Burner Size
- 6"
- Right Front Element Burner
- 3000 Watts
- Right Front Element Burner Size
- 9"
- Right Rear Element Burner
- 1200 Watts
- Right Rear Element Burner Size
- 6"
Electrical Specifications
- Connected Load @ 240V
- 12 kW
- Minimum Circuit Required
- 40 Amps
- Voltage Rating
- 240 V
General Specifications
- Product Weight
- 160 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Adjustable Leveling Legs
- Yes
Oven
- Bake Element
- 2600 Watts
- Bake Element Pass
- 4
- Bake Element Type
- Raised
- Broil Element
- 3000 Watts
- Broil Element Pass
- 4
- Number of Rack Positions
- 6
- Oven Interior Color
- Midnight Black
- Oven Light Quantity
- 1
- Oven Light Type
- Halogen
- Oven Light Watts
- 40 Watts
- Rack Position Type
- Embossed
- Rack Type 1
- Flat
- Rack Type 1 Quantity
- 2
Will it fit?
The product
- Width
- 30"
- Height
- 46¾"
- Depth
- 28½"
- Depth without doorhow far it sits into the room
- 26"
Installed, with the door open
- Depth, door openhow far it projects in use
- 47.31"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
