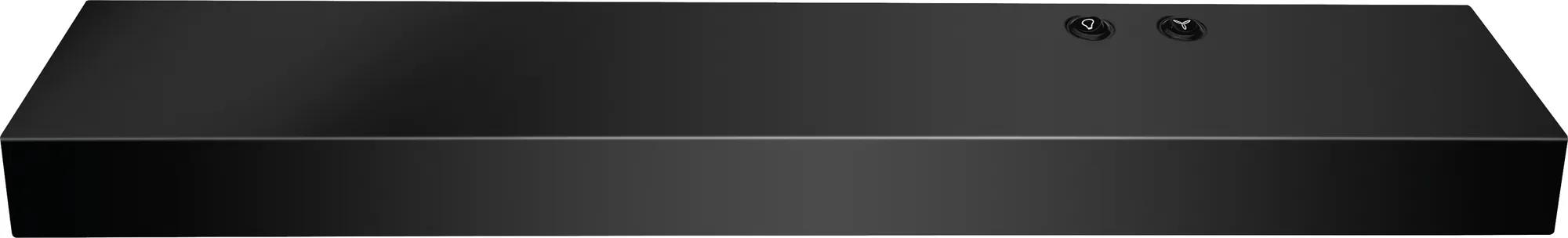

30" Overhead Range Hood — Black (FCVW3025AB)
SKU FCVW3025AB · Model FCVW3025AB · Black
Color: Black
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire
Features in detail
Two Speed Ventilation Fan
Quickly move odors and steam away from the cooktop's surface with two levels of ventilation that recirculate air up to 220 CFM.
Incandescent Lighting
Incandescent lighting helps with cooktop visibility.
Charcoal Filter Included
Enjoy fresher air with the replaceable carbon charcoal recirculation filter, which captures odors and helps filter recirculated air from the exhaust fan.
Dishwasher Safe Grease Filter
Easily clean the aluminum grease filter by putting it in the dishwasher.
Convertible Exhaust System
Designed to fit a variety of installation needs, it can be configured for ducted or ductless venting.
Specifications
Configuration
- Color / Finish
- Black
Dimensions
- Depth
- 18.6 in
- Height
- 5 in
- Weight
- 13 lb
- Width
- 30 in
Features
- ADA Compliant
- Yes
Electrical
- Voltage
- 120 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- UL Listed
- Yes
Controls
- Control Type
- Rocker Switch
Electrical Specifications
- Voltage Rating
- 120 V
General Specifications
- Product Weight
- 13 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Duct Exit Location
- Top
- Hardwired
- Yes
- Power Supply Connection Type
- Hard Wired
Surface Light System
- Lighting Type
- Incandescent
- Number of Light Settings
- 1
- Number of Lights
- 1
Ventilation System
- Charcoal Filter Included
- Yes
- Charcoal Filter Quantity
- 1
- Ducted Vent
- Optional (See Manual)
- Ductless Vent
- Yes - Out of the Box
- Exhaust Fan Speeds
- 2
- Grease Filter Dishwasher Safe
- Yes
- Grease Filter Included
- Yes
- Grease Filter Quantity
- 1
- Grease Filter Type
- Aluminum Mesh
- Maximum Air Flow Capacity
- 230 CFM
- Maximum Sones Rating
- 4.3 sone
- Minimum Air Flow Capacity
- 170 CFM
- Minimum Sones Rating
- 1.7 sone
- Ventilation Options
- Convertible
Will it fit?
The product
- Width
- 30"
- Height
- 5"
- Depth
- 18⅝"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
