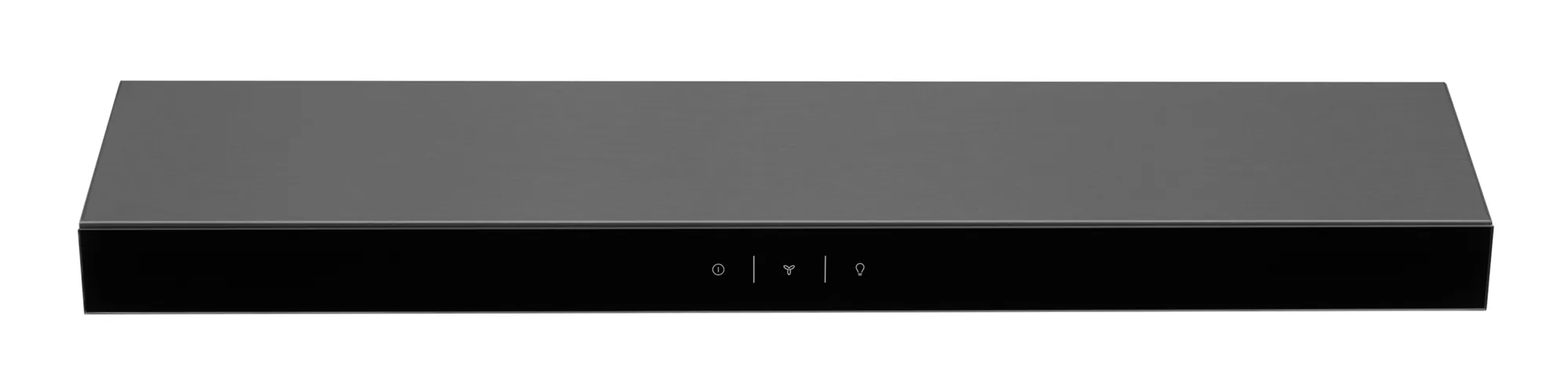

Undercabinet 30" Ventilation Hood — Black Stainless Steel (FCVW3062AD)
SKU FCVW3062AD · Model FCVW3062AD · Black Stainless Steel
Color: Black Stainless Steel
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire
Features in detail
Filter Indicator Light
Let's you know when it's time to change your filter.
Carbon Charcoal Filter Included
Enjoy fresher air with the replaceable carbon charcoal recirculation filter, which captures odors and helps filter recirculated air from the exhaust fan.
Powerful Three Speed Ventilation Fan
Quickly move odors and steam away from the cooktop's surface with three levels of ventilation that recirculate air up to 330 CFM.
Bright LED Lighting
Get a clearer view of your cooktop with two LED lighting modes that illuminate the cooking surface.
Dishwasher Safe Grease Filter
Easily clean the aluminum grease filter by putting it in the dishwasher.
Capacitive Touch Control Panel
Easily adjust fan speed and lighting with responsive capacitive touch controls.
Convertible Design for Installation
Designed to fit a variety of installation needs, this convertible range hood can be configured for ducted or ductless venting.
Power Button
Easily turn on/off the fan and light with the press of a button.
Stylish Built-in Look
Achieve a built-in look with this undercabinet vent made to coordinate with your existing range or cooktop.
AHAM Certified
Description
This undercabinet ventilation hood has a three speed fan that recirculates air at 330 CFM.
Specifications
Configuration
- Color / Finish
- Black Stainless Steel
Dimensions
- Depth
- 19.8 in
- Height
- 4.9 in
- Weight
- 13 lb
- Width
- 30 in
Features
- Control Type
- Touch
Electrical
- Voltage
- 120 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- cUL Listed
- Yes
- HVI Listed
- Yes
- UL Listed
- Yes
Controls
- Control Type
- Glass Touch
- Filter Change Indicator
- Yes
Electrical Specifications
- Voltage Rating
- 120 V
- Watts @ 120 Volts
- 114 Watts
General Specifications
- Product Weight
- 13 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Duct Exit Location
- Top
- Hardwired
- Yes
- Power Supply Connection Type
- Hard Wired
Surface Light System
- Lighting Type
- LED Strip
- Number of Light Settings
- 3
- Number of Lights
- 1
Ventilation System
- Charcoal Filter Included
- Yes
- Charcoal Filter Quantity
- 2
- Ducted Vent
- Optional (See Manual)
- Ductless Vent
- Yes - Out of the Box
- Exhaust Fan Speeds
- 3
- Grease Filter Dishwasher Safe
- Yes
- Grease Filter Included
- Yes
- Grease Filter Quantity
- 2
- Grease Filter Type
- Aluminum Mesh
- Maximum Air Flow Capacity
- 330 CFM
- Maximum Sones Rating
- 10.1 sone
- Minimum Air Flow Capacity
- 110 CFM
- Minimum Sones Rating
- 1.7 sone
- Ventilation Options
- Convertible
Will it fit?
The product
- Width
- 30"
- Height
- 4.94"
- Depth
- 19¾"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
