24" Built-In Dishwasher
SKU FDPH431LAF · Model FDPH431LAF · Stainless Steel
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire
Features in detail

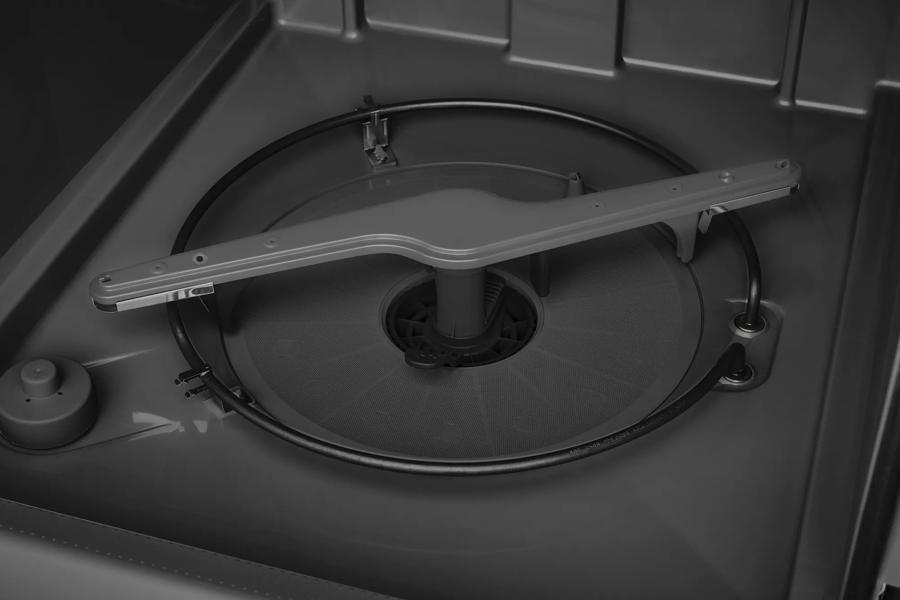

Triple the cleaning power
Give your dishes a more effective clean with our three spray arms, which achieve better water coverage during the cleaning cycle.

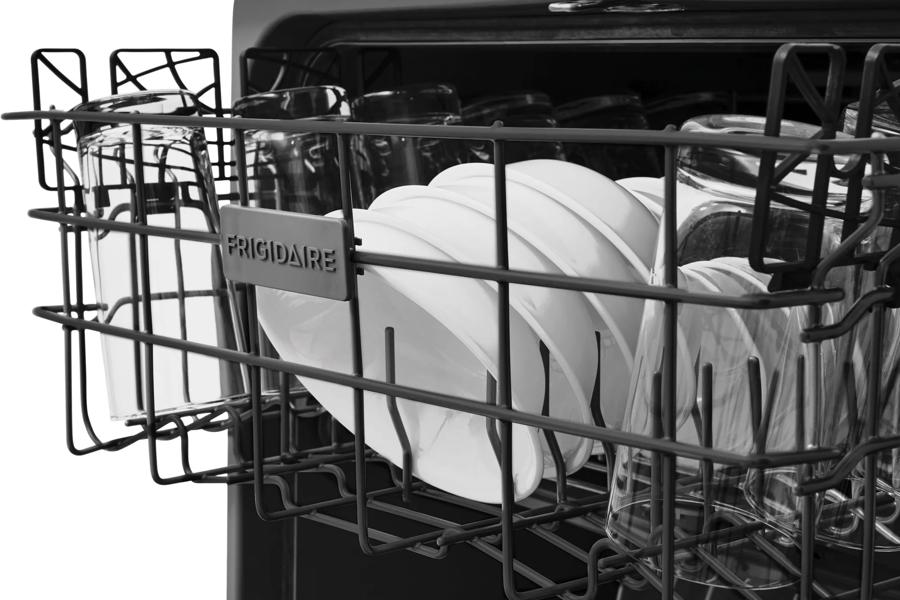

Enhanced drying results with MaxDry™
Get an enhanced dry with the MaxDry™ option, which raises the temperature and delivers better results reducing the need for towel drying.

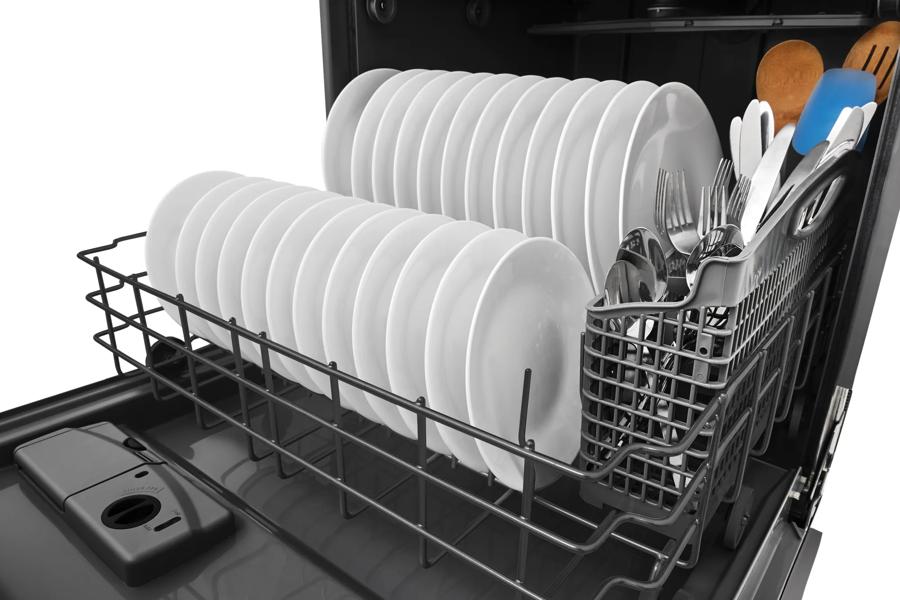

Skip Pre-rinsing with DishSense® Sensor Technology
Get better cleaning results with our sensor technology that adjusts cleaning performance based on the soil level of your dishes.

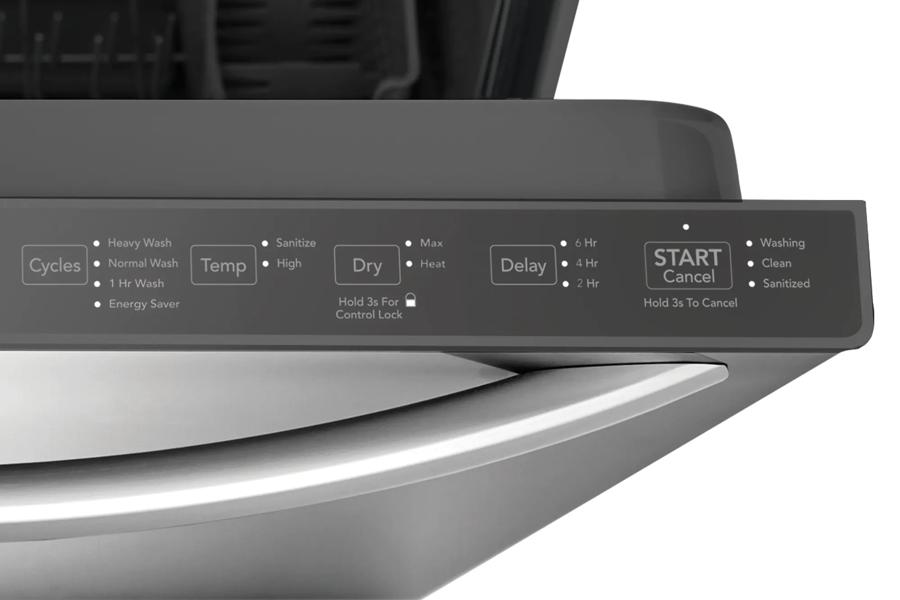

Remove household bacteria with Sanitize Option
Remove 99.9% of common household bacteria with NSF-Certified Sanitize Option.
ENERGY STAR® Certified
Maximize your energy and dollar savings with ENERGY STAR® Certified appliances.

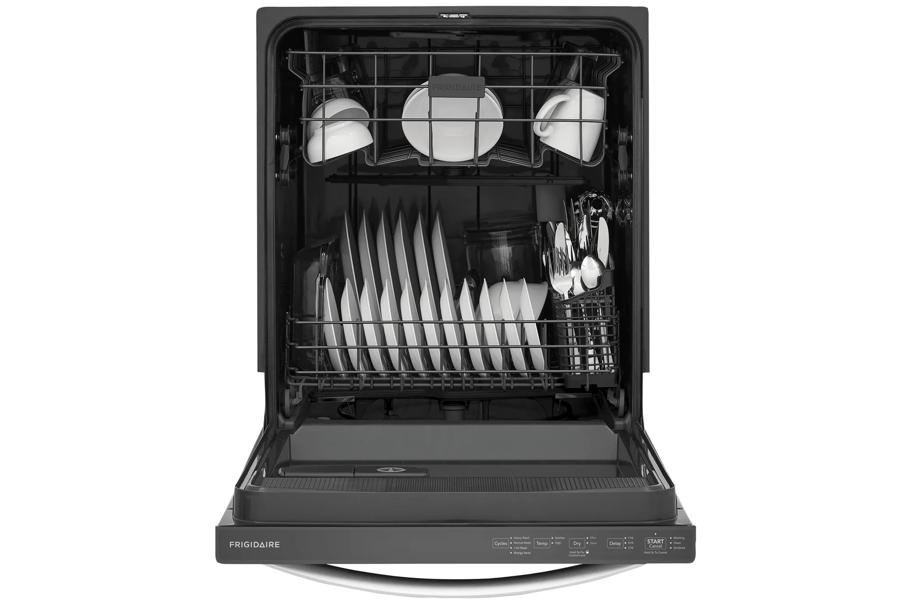

Quick with 60-minute wash
Quickly clean your dishes in our 60-minute wash cycle.
Keep your kitchen quiet with 52 dBA
Enjoy a quiet performance of 52 dBA with a noise insulation system that reduces noise while the dishwasher is in use.
EasyCare™ Stainless Steel Finish
Resists fingerprints and is easy to clean.
Sleek bar handle
Sleek bar handle design upgrades the look of your kitchen.
Time saving delay start
Set your dishwasher to run on your schedule with our delay start option.
Open the door at any angle
Reduce door slamming and dishes clinking with our stay-put door that allows you to open the door at any angle to load and unload dishes.
Description
The Frigidaire 24 in. built-in dishwasher offers triple the cleaning power giving your dishes a more effective clean with our three spray arms that achieve better water coverage. Plus, enjoy an enhanced dry with MaxDry™, which delivers better results reducing the need for towel drying. This quiet dishwasher (52 dBA) also includes DishSense® Sensor Technology, a sanitize option and is Energy Star® certified.
Specifications
Configuration
- Color / Finish
- Stainless Steel
Capacity
- Place Settings
- 14
Dimensions
- Depth
- 25 in
- Depth (door open)
- 49.3 in
- Height
- 33.5 in
- Weight
- 56 lb
- Width
- 24 in
- Depth With Door Open
- 49 1/4"
- Maximum Height
- 35"
- Minimum Height
- 33 1/2"
Features
- Sound Level
- 52 dBA
- Tub Material
- Plastic
Energy
- Annual Energy Use
- 240 kWh/yr
- ENERGY STAR Certified
- Yes
Electrical
- Amperage
- 10 A
- Voltage
- 120 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- CEE Tier
- Tier 1
- cUL Listed
- Yes
- Meets ASSE 1006 Requirements
- Yes
- NSF Certified
- Yes
- UL Listed
- Yes
Controls
- Control Lock
- Yes
- Delay Start Hours
- 2-4-6 Hours
- Rinse Aid Indicator
- Yes
Dishwasher
- Detergent Dispenser
- Yes
- Filter Material
- Plastic
- Filter Trap
- Removable
- Filtered Water
- 100 %
- Hard Food Disposer or Filtration
- Yes
- Lower Spray Arm
- Bi-Beam
- Middle Spray Arm
- Bi-Beam
- Motor Speeds
- Single-Speed
- Place Setting Capacity
- 14
- Rinse Aid Dispenser
- Yes
- Smart Soil Sensor
- Yes
- Tub Color
- Midnight Ink
- Tub Design
- Tall Tub
- Upper Spray Arm
- Spray Arm
- Wash Levels
- 5
- Wash System
- Direct Feed
- Water Pressure
- 120 psi
- Water Usage
- 3.2 Gallons
Dishwasher Cycles
- Energy Saver
- Yes
- Heavy
- Yes
- Normal
- Yes
- Number of Cycles
- 4
- Quick
- Yes
Dishwasher Options
- Air Dry
- Yes
- Dry - Heat
- Yes
- Dry - Max
- Yes
- Drying System
- Static Vent
- Heated Dry
- Yes
- High Temperature
- Yes
- Start/Cancel
- Yes
- Washing Temperature - High
- Yes
- Washing Temperature - Sanitize
- Yes
Electrical Specifications
- Amps @ 120 Volts
- 10 Amps
- Connected Load @ 120V
- 1.2 kW
- Voltage Rating
- 120 V
Exterior
- Door Latch
- Pull
- Door Type
- StayPut
- Exterior Finish
- Smudge-Proof® Stainless Steel
General Specifications
- Annual Energy
- 240 kWh
- Product Weight
- 56 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Connection Location
- Right Bottom
- Number of Leveling Legs
- 4
- Water Inlet Location
- Left Bottom Front
Lower Rack
- Maximum Height Clearance
- 13"
- Minimum Height Clearance
- 11"
- Number of Silverware Basket
- 1
- Number of Silverware Basket Lids
- 2
- Rack Coating
- PVC
- Rack Type
- Standard
Upper Rack
- Cup Shelf
- Yes
- Minimum Height Clearance
- 8"
- Rack Coating
- PVC
- Rack Spacer
- Yes
- Rack Type
- Standard
Will it fit?
The product
- Width
- 24"
- Height
- 33½"
- Depth
- 25"
Installed, with the door open
- Depth, door openhow far it projects in use
- 49¼"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
