24" Panel Ready Built-In Dishwasher
SKU FDSR4501AP · Model FDSR4501AP
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire
Features in detail

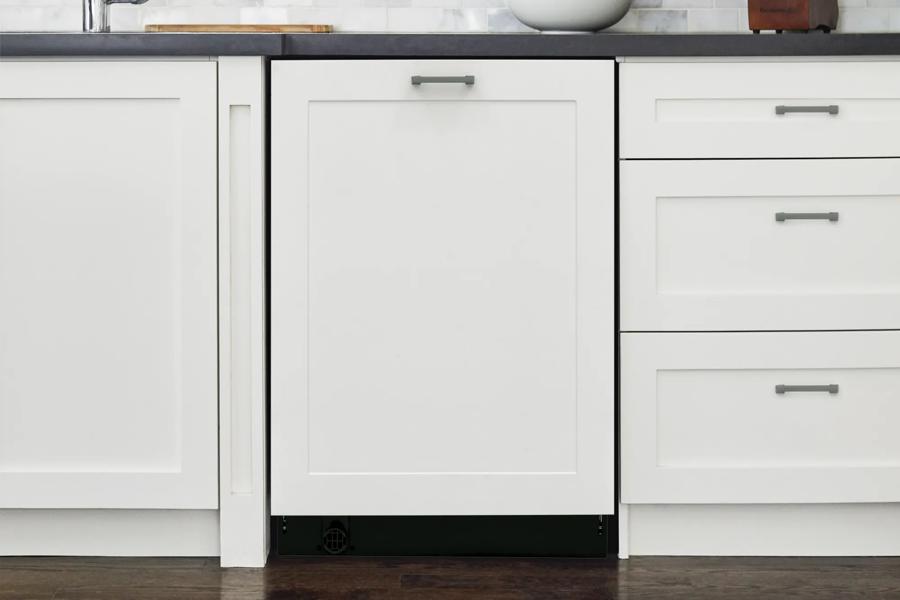

Panel-Ready Design
Install a custom front panel and handle (not included) over the dishwasher door to effortlessly create a built-in look that blends into your kitchen cabinetry.

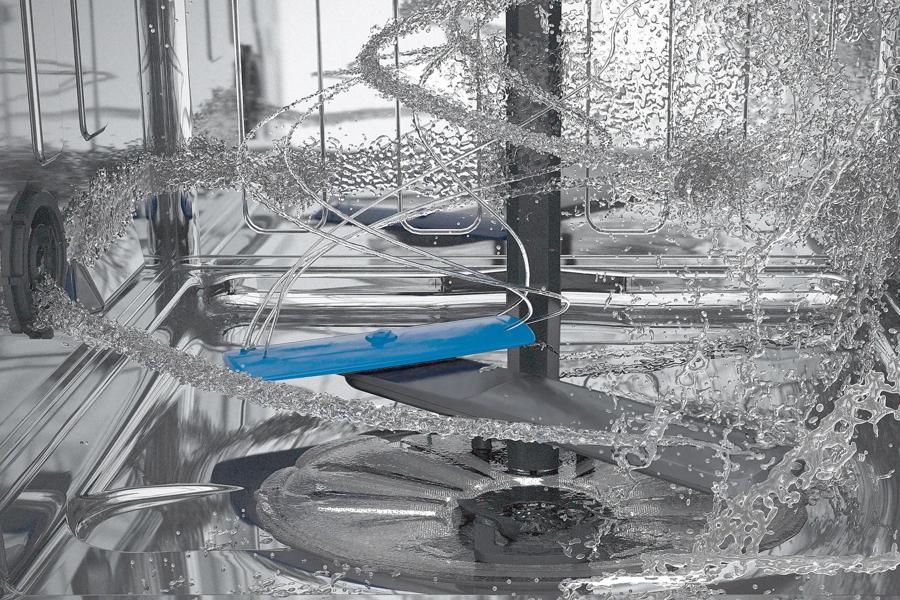

A Thorough Clean Every Time
Unlike traditional spray arms, our BladeSpray® arm rotates in two directions, so you get better water coverage that reaches every corner.

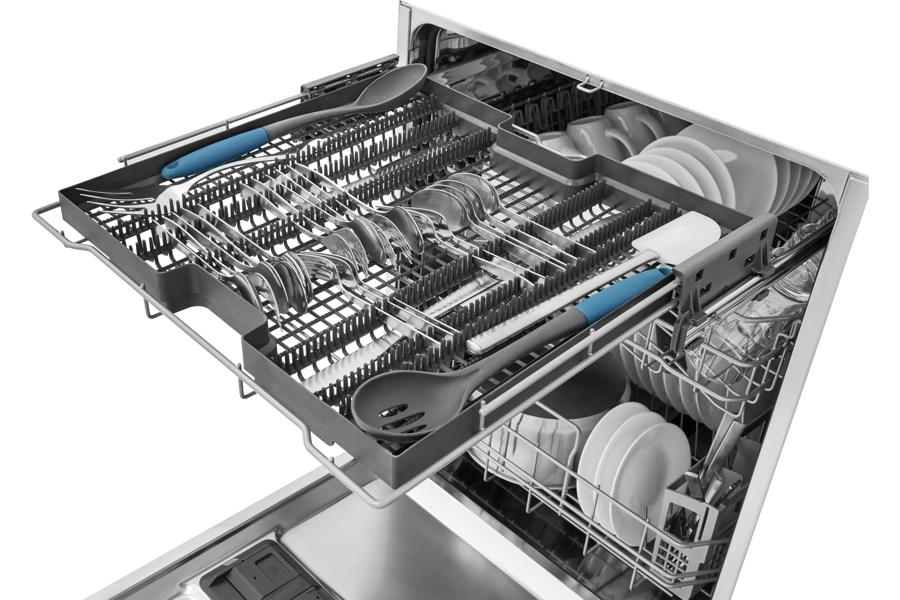

Third-Level Rack
Save time loading and unloading and fit more with a third level rack that easily fits silverware, cooking utensils and tools.

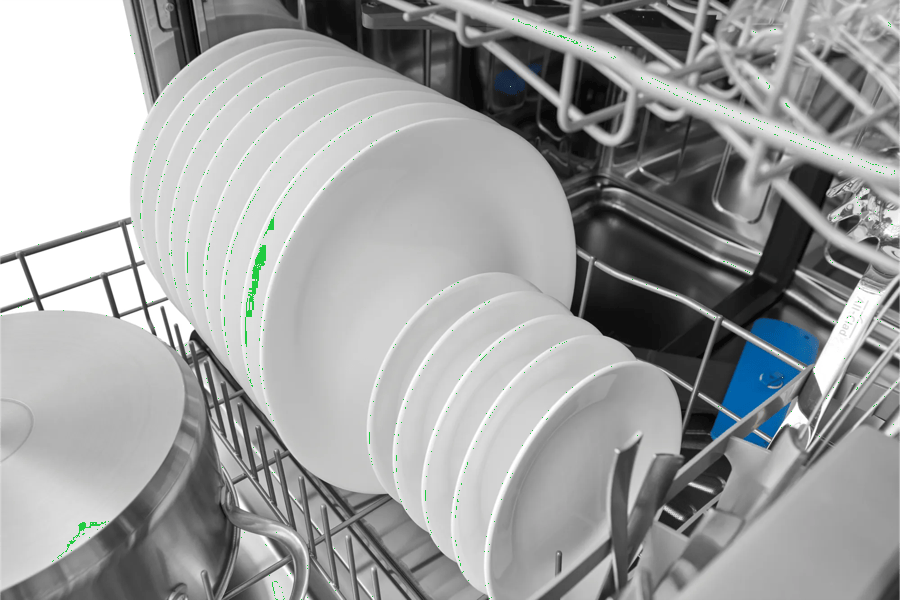

EvenDry™ System
With the fan assisted EvenDry™, air flow is evenly circulated and moisture is removed for clean, spot-free dishes.

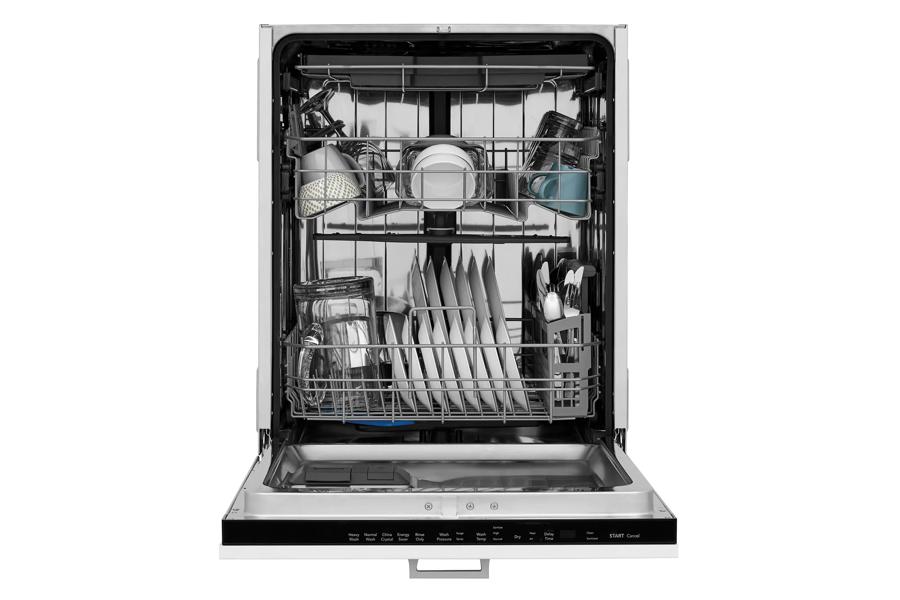

DishSense® Sensor Technology
Skip pre-rinsing with our DishSense® sensor technology that adjusts cleaning performance based on the soil level of your dishes.
NSF® Certified Sanitize Option
Sanitize option removes 99.9% of common household bacteria.
Clean Dishes of All Sizes
Clean even your largest dishes and bakeware with an adjustable upper level rack that lets you fit more in the bottom rack.
Quiet Operation
So quiet your dishwasher won't disturb you, even if you run it while you're in the room--runs at 49 dBA.
ENERGY STAR® Certified
Save money and maximize energy efficiency.
Zero Waste to Landfill Factory
This dishwasher was assembled in a certified zero waste to landfill facility. Electrolux's goals is for all of our production facilities to be certified by 2025.
Description
This 24" Stainless Steel Tub Dishwasher blends into your kitchen by allowing you to attach a separately sold custom panel that matches your cabinetry.
Specifications
Capacity
- Place Settings
- 14
Dimensions
- Depth
- 24.3 in
- Depth (door open)
- 50.3 in
- Height
- 33.8 in
- Weight
- 85 lb
- Width
- 24 in
- Depth With Door Open
- 50 1/4"
- Maximum Height
- 35 3/4"
- Minimum Height
- 33 3/4"
Features
- ADA Compliant
- No
- Sound Level
- 49 dBA
- Tub Material
- Stainless Steel
Energy
- Annual Energy Use
- 240 kWh/yr
- ENERGY STAR Certified
- Yes
Electrical
- Amperage
- 15 A
- Voltage
- 120 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- CEE Tier
- Tier 1
- cUL Listed
- Yes
- ETL Listed
- Yes
- NSF Certified
- Yes
- UL Listed
- Yes
Controls
- Delay Start Hours
- 1-24 Hours
- Digital Display
- No
Dishwasher
- Detergent Dispenser
- Yes
- Filter Material
- Stainless Steel
- Filter Trap
- Removable
- Filtered Water
- 100 %
- Hard Food Disposer or Filtration
- Yes
- Lower Spray Arm
- Blade
- Middle Spray Arm
- Bi-Beam
- Motor Speeds
- Multi-Speed
- Place Setting Capacity
- 14
- Rinse Aid Dispenser
- Yes
- Smart Soil Sensor
- Yes
- Tub Color
- Stainless Steel
- Tub Design
- Tall Tub
- Upper Spray Arm
- Spray Arm
- Wash Levels
- 5
- Wash System
- Direct Feed
- Water Pressure
- 120 psi
Dishwasher Cycles
- China Crystal
- Yes
- Energy Saver
- Yes
- Heavy
- Yes
- Normal
- Yes
- Number of Cycles
- 5
- Rinse Only
- Yes
Dishwasher Options
- Dry - Air
- Yes
- Dry - Heat
- Yes
- Dry - Max
- No
- Drying System
- Even Dry
- High Temperature
- No
- Start/Cancel
- Yes
- Washing Temperature - High
- Yes
- Washing Temperature - Normal
- Yes
- Washing Temperature - Sanitize
- Yes
Electrical Specifications
- Amps @ 120 Volts
- 15 Amps
- Voltage Rating
- 120 V
Exterior
- Panel Ready
- Yes
General Specifications
- Annual Energy
- 240 kWh
- Product Weight
- 85 lbs
- Prop 65 Label
- No
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Number of Leveling Legs
- 3
Lower Rack
- Number of Silverware Basket
- 1
- Number of Silverware Basket Lids
- 2
- Rack Coating
- Nylon
- Rack Type
- Deluxe
Panel Installation Information
- Maximum Height
- 29 7/8"
- Maximum Thickness
- 7/8"
- Maximum Weight
- 17.6 lbs
- Minimum Thickness
- 5/8"
- Minimum Weight
- 4.4 lbs
- Width
- 23 7/8"
Third Level Rack
- Third Level Rack
- Yes
Upper Rack
- Cup Shelf
- Yes
- Rack Coating
- Nylon
- Rack Type
- Deluxe
- Stemware Holder
- Yes
- Targeted Wash Zone
- No
Will it fit?
The product
- Width
- 24"
- Height
- 33¾"
- Depth
- 24¼"
Installed, with the door open
- Depth, door openhow far it projects in use
- 50¼"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
