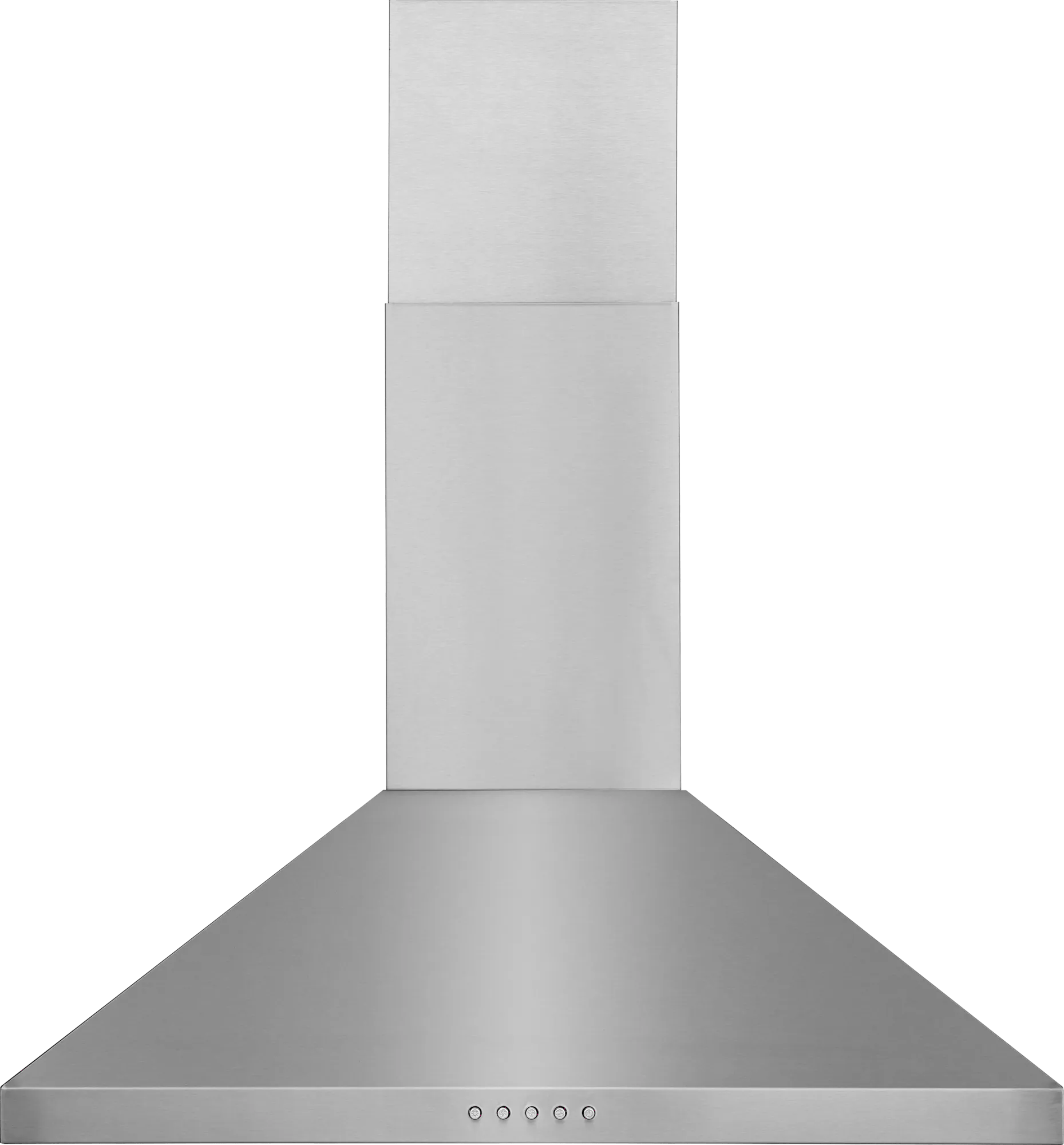

30" Stainless Canopy Wall-Mounted Hood — Stainless Steel (FHWC3075LS)
SKU FHWC3075LS · Model FHWC3075LS · Stainless Steel
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire
Features in detail
Powerful Three Speed Ventilation Fan
Quickly move odors and steam away from the cooktop's surface with three levels of ventilation that recirculate air up to 350 cubic feet per minute (CFM).
Lower Noise Operation
When using the fans to circulate air, on the lower setting the sones rating is 3.0, equivalent to a face-to-face conversation. The maximum fan sones rating is 5.5, equivalent to busy restaurant.
Convertible Exhaust Duct
Designed for outdoor (ducted) or indoor (non-ducted) vented installations
LED Lighting
Get a clearer view of your cooktop with two LED lights that illuminate the cooking surface.
Dishwasher Safe Grease Filters
Easy to remove, dishwasher safe aluminum mesh filters trap particles and helps reduce odors
Push Button Controls
Easily select fan speed or lighting level with simple push button controls
Professional Design
Features a sleek, stainless steel finish and professional-looking design.
Charcoal Filter
Enjoy fresher air with the replaceable carbon charcoal recirculation filter, which captures odors and helps filter recirculated air from the exhaust fan.
Ready for Installation
Includes all necessary components for installation, such as a damper, mounting hardware, and flexible ductwork.
Optional 10 Ft. Chimney Extension
For kitchens that require more height, you can purchase an additional 10' chimney extension.
Description
Three fan speeds allow you to recirculate air up to 350 cubic feet per minute (CFM).
Specifications
Configuration
- Color / Finish
- Stainless Steel
Dimensions
- Depth
- 17.7 in
- Height
- 30 in
- Weight
- 47 lb
- Width
- 29.5 in
- Duct Diameter
- 6"
- Height With Flue Extension
- 45"
Electrical
- Amperage
- 1.8 A
- Voltage
- 120 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- ETL Listed
- Yes
Electrical Specifications
- Amps @ 120 Volts
- 1.75 Amps
- Voltage Rating
- 120 V
- Watts @ 120 Volts
- 210 Watts
General Specifications
- Product Weight
- 47 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Surface Light System
- Lighting Type
- LED
- Number of Lights
- 2
Ventilation System
- Charcoal Filter Included
- Yes
- Ductless Vent
- Yes - Out of the Box
- Exhaust Fan Speeds
- 3
- Maximum Air Flow Capacity
- 350 CFM
- Maximum Sones Rating
- 5.5 sone
- Minimum Air Flow Capacity
- 240 CFM
Will it fit?
The product
- Width
- 29½"
- Height
- 30"
- Depth
- 17.72"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
