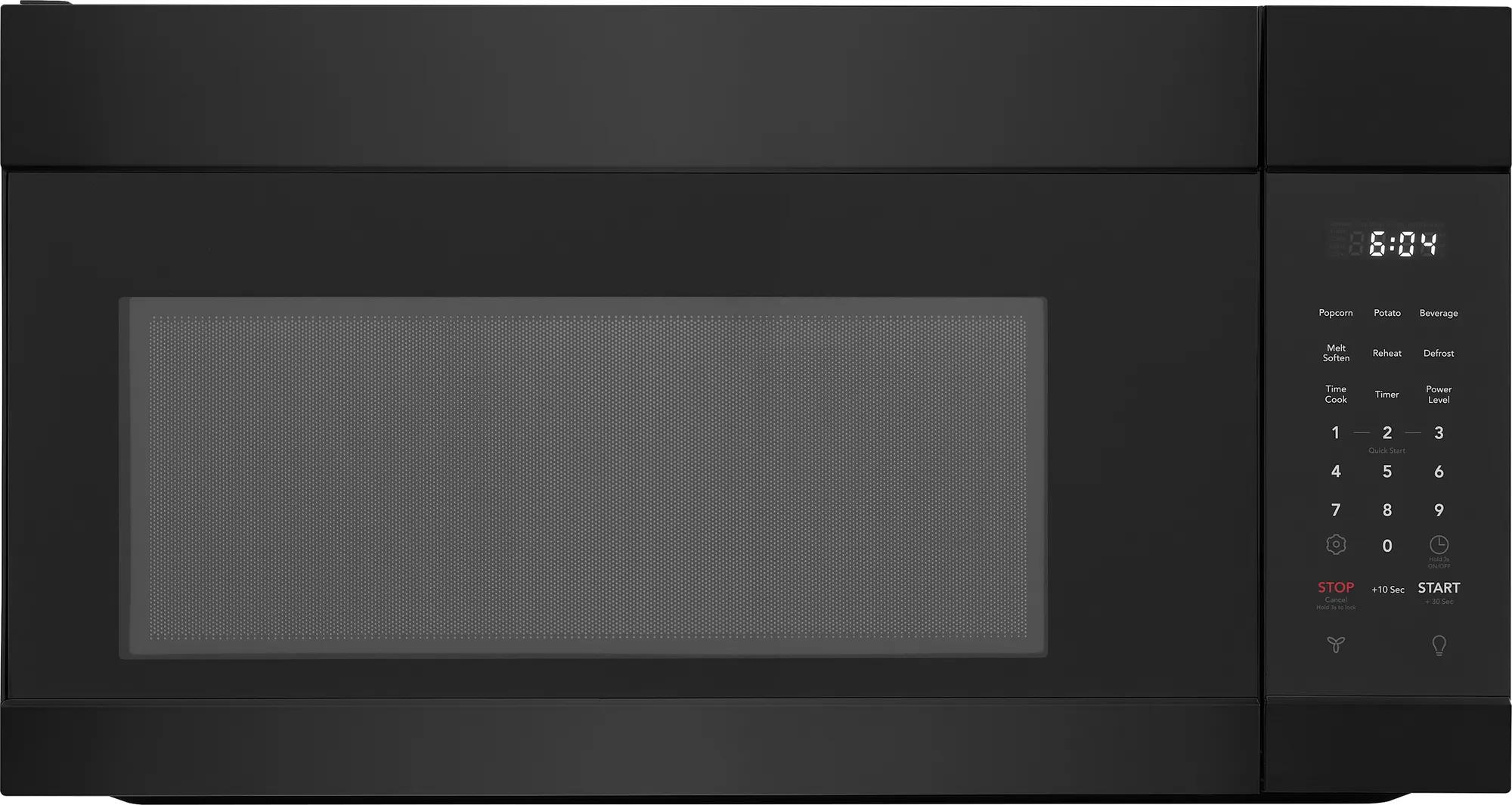

1.7 Cu. Ft. Over-The-Range Microwave — Black (FMOS1746BB)
SKU FMOS1746BB · Model FMOS1746BB · Black
Color: Black
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire
Features in detail
Quick Start Options
Get meals on the table in minutes with three different Quick Start options that allow you to make meals, faster.
Two Speed Ventilation
Over-the-range microwave doubles as a hood offering ventilation with two fan speeds.
Auto Cook Setting
Adjust cook time and power levels based on the food type and weight.
1.7 cu. ft. of cooking space
Accommodates your larger dishes and bowls.
12-3/8" Diameter Glass Turntable
Big bowls and large casserole dishes are no problem with an extra-large glass turntable.
Dishwasher Safe Grease Filter
Easily clean the aluminum grease filter by putting it in the dishwasher.
Defrost Setting
Easily defrost frozen foods by selecting defrost time or food weight.
Additional Cook Time Buttons
Quickly add on cook time by pressing the +30 or +10 second buttons.
Interior and Exterior lighting
Gives you more visibility to see inside your microwave and on your cooktop.
Specifications
Configuration
- Color / Finish
- Black
- Fuel Type
- Electric
Dimensions
- Depth
- 15.4 in
- Depth (door open)
- 38.8 in
- Height
- 16.4 in
- Weight
- 50 lb
- Width
- 29.9 in
- Depth With Door 90° Open
- 38 13/16"
- Microwave Capacity
- 1.7 Cu. Ft.
- Microwave Interior Depth
- 14 9/16"
- Microwave Interior Height
- 9 7/8"
- Microwave Interior Width
- 20 7/8"
Features
- Child Lock
- Yes
Electrical
- Amperage
- 13.5 A
- Voltage
- 120 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Additional Settings
- Clock Display On / Off
- Yes
- Clock Settings
- Yes
- Demo On / Off
- Yes
- Setting Weight Lb / Kg
- Yes
- Surface Cooking Light
- Yes
- Timer On / Off
- Yes
- Vent Fan
- Yes
Certifications and Approvals
- UL Listed
- Yes
Controls
- Control Lock
- Yes
Cooking Controls
- Clock
- Yes
- Cooking Power
- 1000 Watts
- Defrost Time
- Yes
- Defrost Weight
- Yes
- Number of Power Levels
- 10
Display
- Display Interface Color
- White
- Display Type
- Membrane
Electrical Specifications
- Amps @ 120 Volts
- 13.5 Amps
- Connected Load @ 120V
- 1.55 kW
- Voltage Rating
- 120 V
- Watts @ 120 Volts
- 1500 Watts
Exterior
- Door Swing
- Side-Swing Door
General Specifications
- Product Weight
- 50 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Power Supply Connection Location
- Right Top
Internal Specifications
- Interior Color
- White
- Interior Light Quantity
- 1
- Interior Light Type
- Incandescent
- Interior Light Wattage
- 20 Watts
- Turntable Diameter
- 12 2/5"
- Turntable Material
- Glass
Microwave Control Features
- + 10 Seconds
- Yes
- + 30 Seconds
- Yes
- Quick Start
- Yes
Microwave Cooking
- Beverage
- Yes
- Melt / Soften
- Yes
- Popcorn
- Yes
- Potato
- Yes
- Reheat
- Yes
Surface Light System
- Lighting Type
- Incandescent
Ventilation System
- Charcoal Filter Included
- Yes
- Ducted Vent
- Yes
- Ductless Vent
- Yes
- Exhaust Fan Speeds
- 2
- Grease Filter Dishwasher Safe
- Yes
- Grease Filter Included
- Yes
- Grease Filter Quantity
- 2
- Maximum Air Flow Capacity
- 300 CFM
- Maximum Sones Rating
- 7 sone
- Minimum Air Flow Capacity
- 105 CFM
- Minimum Sones Rating
- 2.5 sone
- Removable Grease Filter
- Yes
Will it fit?
The product
- Width
- 29⅞"
- Height
- 16.44"
- Depth
- 15.44"
Installed, with the door open
- Depth, door openhow far it projects in use
- 38.81"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
Manuals & Documents
Specifications
Installation
Manuals
