30” Electric Range with No Preheat + Air Fry, Includes Air Fry Tray
SKU PCFE3080AF · Model PCFE3080AF · Stainless Steel
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire Professional
Features in detail
Total Convection System
Gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast and more!
No Preheat
Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time.
Air Fry
Make healthier and delicious meals for your entire family - right in your oven.

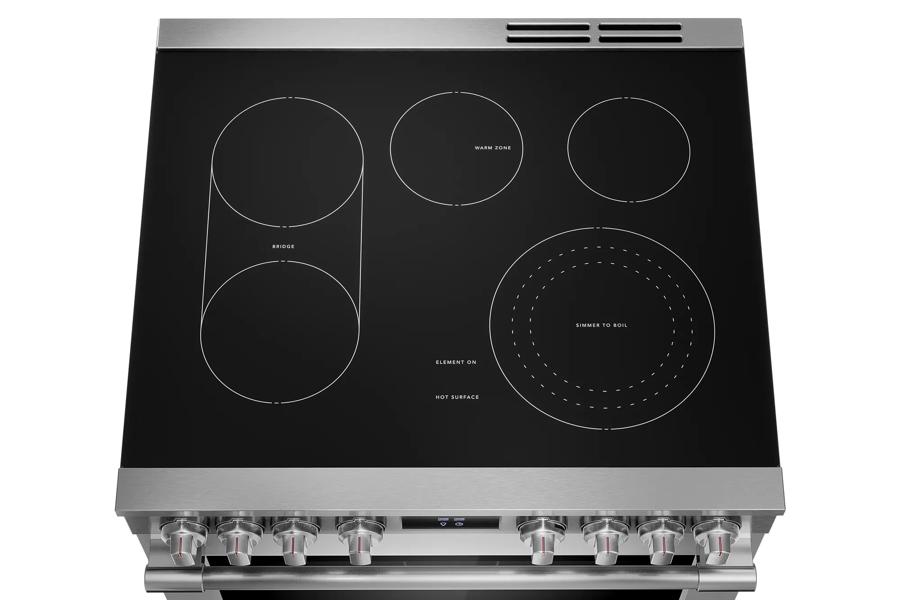

Five Element Cooktop
Designed to handle all of your cooking needs with a powerful 3,200 Watt EvenTemp® Element and convenient Bridge Element.
Slow Cook
With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.
Temperature Probe
Monitors and alerts when the desired finished cooking temperature has been reached.
Steam Bake
With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
Steam Roast
Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.
Backlit LED Knobs
Backlit LED knobs look great and provide visual heat awareness. White glows while cooking. Red glows after shutoff while the surface remains hot.
Premium Glide Rack
Our extending Glide Rack makes it easier to monitor and lift your food out of the oven.
Frigidaire® Fit Promise
We promise that your new 30" Frigidaire front control range will fit your existing range cutout of the same width and configuration, or we will reimburse you up to one hundred dollars for professionally modifying the countertop.
Extra Large Oven Capacity
Cook more at once with our extra large, 6.2 cu. ft. capacity oven.
Description
This electric range features our most powerful and advanced Total Convection system, giving you so many different ways to cook.
Specifications
Configuration
- Color / Finish
- Stainless Steel
Capacity
- Oven Capacity
- 6.2 cu. ft.
Dimensions
- Depth
- 28.5 in
- Depth (door open)
- 47.3 in
- Depth (without door)
- 26 in
- Height
- 35.4 in
- Weight
- 180 lb
- Width
- 30 in
- Depth (as published)
- 26"
- Depth With Door 90° Open
- 47 5/16"
- Depth With Handle
- 28 1/2"
- Maximum Height
- 36 3/8"
- Minimum Height
- 35 3/8"
- Oven Interior Depth
- 19 7/8"
- Oven Interior Height
- 21 5/16"
- Oven Interior Width
- 25 3/16"
Features
- ADA Compliant
- Yes
- Cooktop Technology
- Radiant
- Sabbath Mode
- Yes
Electrical
- Voltage
- 240 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- RoHS
- Yes
- Star-K Certification
- Yes
- UL Listed
- Yes
Cooking Controls
- Air Fry
- Yes
- Bake
- Yes
- Broil
- Yes
- Clock
- Yes
- Convection Bake
- Yes
- Convection Roast
- Yes
- Delay Clean
- Yes
- Delay Start
- Yes
- Hot Surface
- Yes
- Kitchen Timer
- Yes
- Light
- Yes
- Lockout
- Yes
- No Preheat
- Yes
- Oven Light
- Yes
- Preheat
- Yes
- Probe
- Yes
- Quick Preheat
- Yes
- Self Clean
- Yes
- Set Clock
- Yes
- Slow Cook
- Yes
- Steam Bake
- Yes
- Steam Clean
- Yes
- Steam Roast
- Yes
- Temperature Display
- Yes
- User Preferences
- Yes
Cooking Controls Function
- Change between Continuous Bake Setting or 12-Hour Energy Saving Feature
- Yes
- Delayed Bake
- Yes
- Program Fahrenheit or Celsius
- Yes
- Silent Control Panel
- Yes
Cooktop
- Bridge Element
- Yes
- Bridge Element Location
- Left
- Cooking Surface Type
- Smooth
- Element On Indicator Light
- Yes
- Hot-Surface Indicator Light
- Yes
Cooktop Performance
- Center Rear Element Burner
- 100 Watts
- Keep Warm Burner Location
- Center Rear
- Left Front Element Burner
- 1800 Watts
- Left Front Element Burner Size
- 7"
- Left Rear Element Burner
- 1800 Watts
- Left Rear Element Burner Size
- 7"
- Right Front Element Burner
- 3200 Watts
- Right Front Element Burner Size
- 9"
- Right Rear Element Burner
- 1200 Watts
- Right Rear Element Burner Size
- 6"
Display
- Display Interface Color
- White
- Display Type
- Capacitive Touch
Drawer
- Drawer Type
- Storage
Electrical Specifications
- Connected Load @ 240V
- 13 kW
- Minimum Circuit Required
- 40 Amps
- Voltage Rating
- 240 V
Exterior
- Backlit Knobs
- Yes
- Exterior Finish
- Smudge-Proof® Stainless Steel
General Specifications
- AB-1200
- Information available at frigidaire.com/en/ab1200
- Frigidaire Fit Promise
- Yes
- Product Weight
- 180 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Adjustable Leveling Legs
- Yes
Oven
- Bake Element
- 2500 Watts
- Bake Element Pass
- 8
- Bake Element Type
- Hidden
- Broil Element
- 4000 Watts
- Broil Element Pass
- 6
- Cleaning System
- Yes
- Convection Element
- 3800 Watts
- Convection Type
- Total
- Number of Convection Fans
- 1
- Number of Rack Positions
- 7
- Oven Interior Color
- Midnight Black
- Oven Light Quantity
- 2
- Oven Light Type
- Halogen
- Oven Light Watts
- 40 Watts
- Rack Position Type
- Embossed
- Rack Type 1
- Handle
- Rack Type 1 Quantity
- 1
- Rack Type 2
- Glide
- Rack Type 2 Quantity
- 1
- Rack Type 3
- Air Fry Tray
- Rack Type 3 Quantity
- 1
Will it fit?
The product
- Width
- 30"
- Height
- 35⅜"
- Depth
- 28½"
- Depth without doorhow far it sits into the room
- 26"
Installed, with the door open
- Depth, door openhow far it projects in use
- 47.31"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
Manuals & Documents
Specifications
