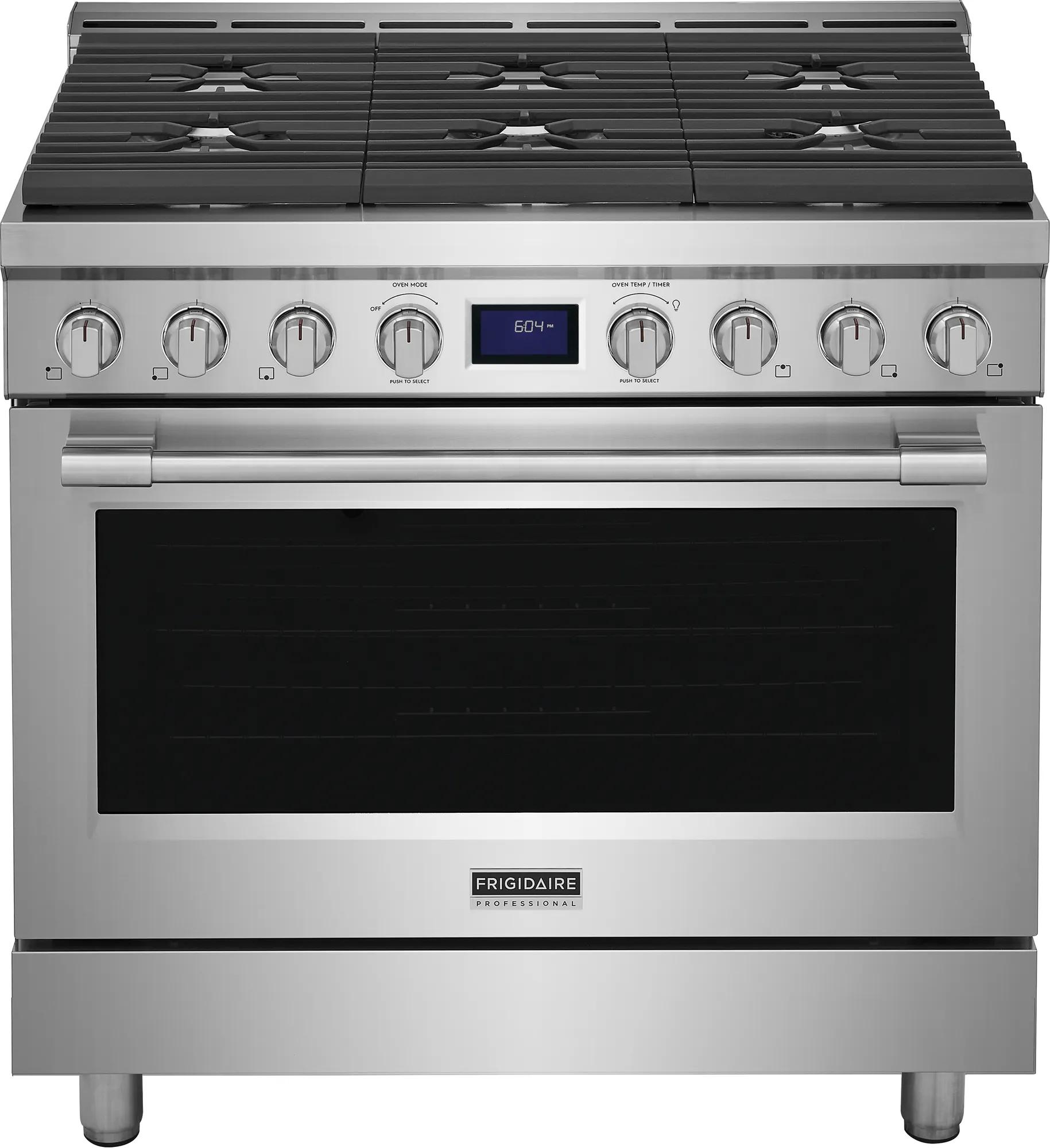

36" Gas Range
SKU PCFG3670AF · Model PCFG3670AF · Stainless Steel
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire Professional
Features in detail
True Convection
Get faster, more even multi-rack baking with a powerful convection fan and third heating element that evenly circulates hot air throughout the oven.

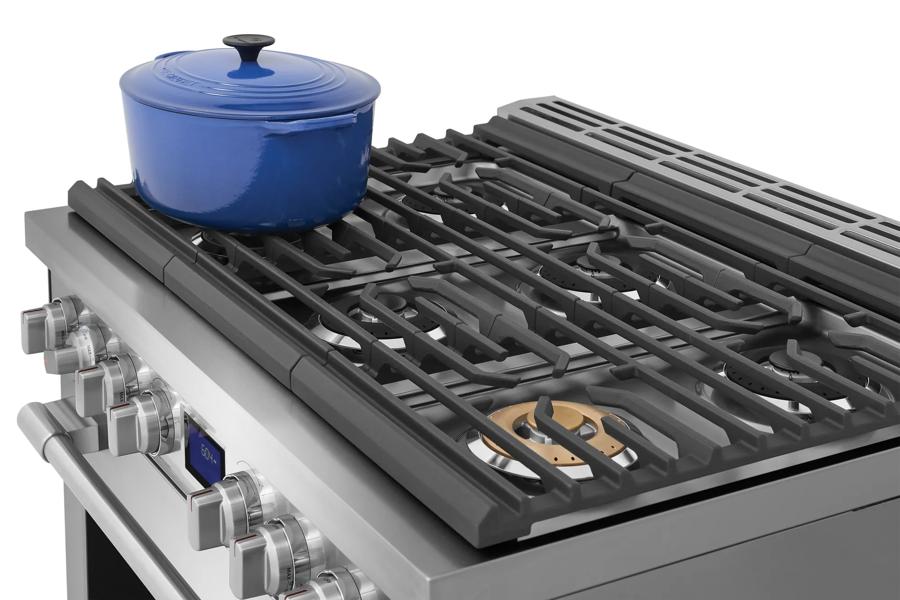

Six Burner Cooktop
Six burner cooktop provides the ultimate cooking flexibility with dual power burners that quickly go from boil to simmer.

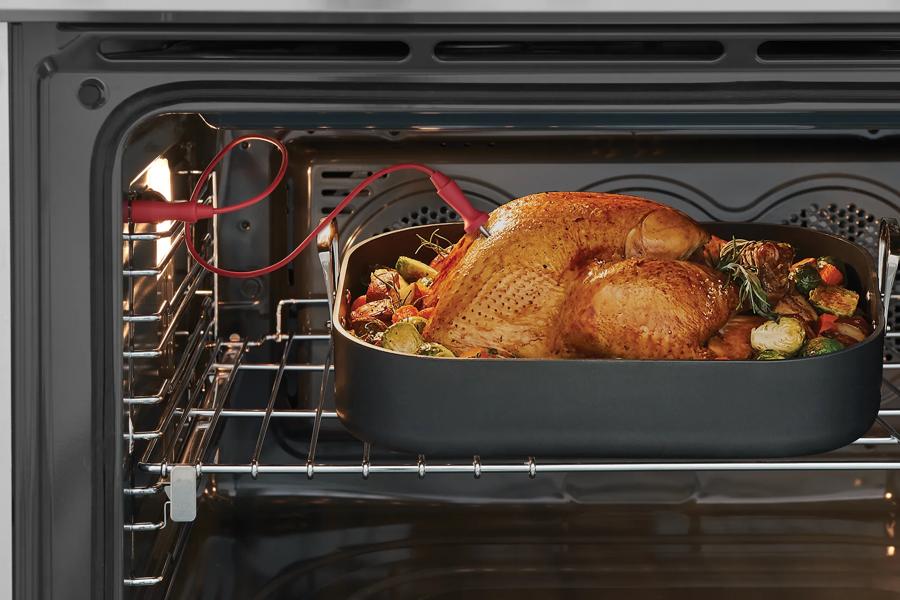

Temperature Probe
Monitors and alerts when the desired finished cooking temperature has been reached.

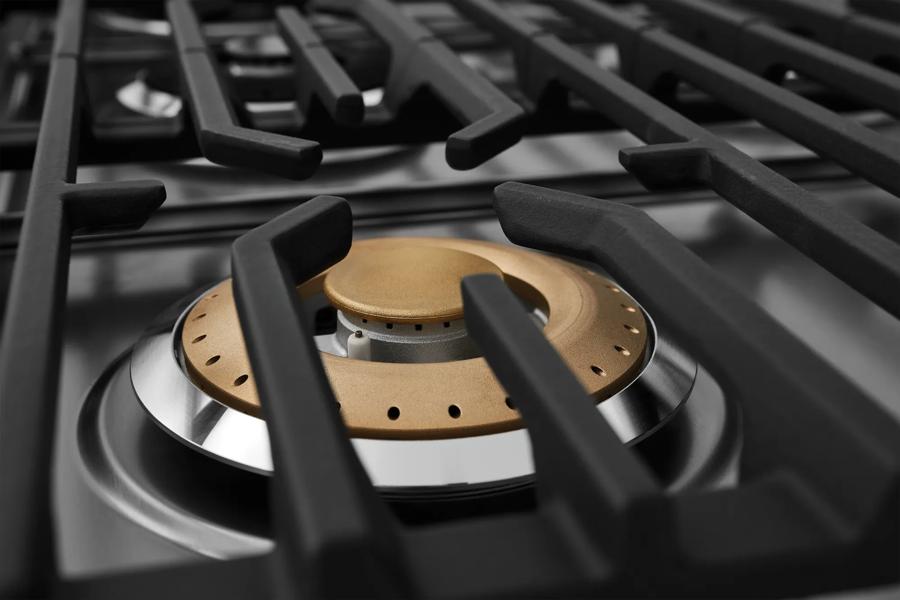

Dual Power Burners
Delivers a powerful boil at 18000 BTU's to a delicate simmer at 750 BTU's to meet all your cooking needs.

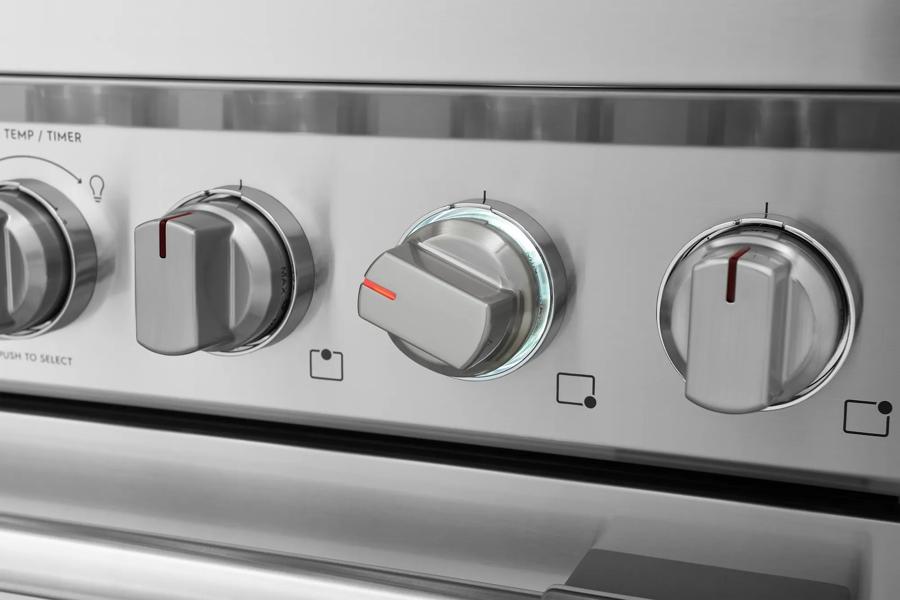

Backlit LED Knobs
Lights up when the cooktop is turned on.

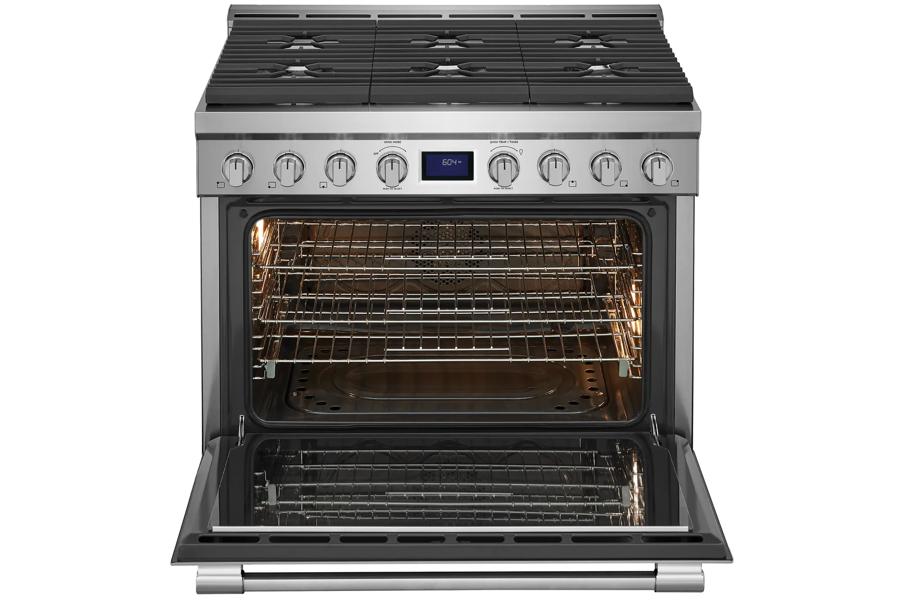

Premium Glide Rack
Our extending Glide Rack makes it easier to monitor and lift your food out of the oven.
Soft-close oven door
Soft-close hinges gently guide the oven door to a closed position.
Continuous Cooktop Grates
Move even your heaviest pots and pans without the need to lift them.
Smudge-Proof® Stainless Steel
Resists fingerprints and cleans easily.
ADA Compliant
Product complies with the Americans with Disabilities Act.
Description
This gas range delivers the ultimate cooking flexibility with six cooktop elements, including Dual Power Burners that quickly go from boil to simmer.
Specifications
Configuration
- Color / Finish
- Stainless Steel
Capacity
- Oven Capacity
- 4.4 cu. ft.
Dimensions
- Depth
- 25.9 in
- Depth (door open)
- 43.9 in
- Height
- 35.6 in
- Weight
- 245 lb
- Width
- 35.9 in
- Depth With Door 90° Open
- 43 15/16"
- Maximum Height
- 36 9/16"
- Minimum Height
- 35 9/16"
- Oven Interior Depth
- 17 1/2"
- Oven Interior Height
- 15 1/16"
- Oven Interior Width
- 28 7/16"
Features
- ADA Compliant
- Yes
- Child Lock
- Yes
- Cooking Zones
- 6
- Cooktop Technology
- Gas
- Sabbath Mode
- No
Electrical
- Amperage
- 9.2 A
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- CSA Listed
- Yes
- RoHS
- Yes
Cooking Controls
- Bake
- Yes
- Bread Proof
- Yes
- Broil
- Yes
- Convection Bake
- Yes
- Convection Roast
- Yes
- Cook Time
- Yes
- Delay Start
- Yes
- Keep Warm
- Yes
- Kitchen Timer
- Yes
- Probe
- Yes
- Self Clean
- No
- Temperature Display
- Yes
Cooktop
- Cooking Surface Type
- Gas
- Grate Material
- Cast Iron
- Grate Quantity
- 3
- Grate Style
- Continuous
- Sealed Burners
- Yes
- Total Number of Burners
- 6
Cooktop Performance
- Center Front Element Burner
- 12,000 / 750 BTU Dual
- Center Rear Element Burner
- 12,000 / 750 BTU Dual
- Left Front Element Burner
- 18,000 / 750 BTU Dual
- Left Rear Element Burner
- 12,000 / 750 BTU Dual
- Right Front Element Burner
- 18,000 / 750 BTU Dual
- Right Rear Element Burner
- 12,000 / 750 BTU Dual
Display
- Display Light Color
- White
- Display Type
- LED
Electrical Specifications
- Amps @ 120 Volts
- 9.2 Amps
- Connected Load @ 120V
- 1.1 kW
- Minimum Circuit Required
- 15 Amps
Exterior
- Backlit Knobs
- Yes
- Exterior Finish
- Smudge-Proof® Stainless Steel
General Specifications
- AB-1200
- Information available at frigidaire.com/en/ab1200
- Product Weight
- 245 lbs
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Adjustable Leveling Legs
- Yes
- LP Conversion Kit Included
- Yes
- Plinth
- Yes
Oven
- Bake Element
- 17000 BTU
- Bake Element Type
- Hidden
- Broil Element
- 14000 BTU
- Convection
- Yes
- Convection Element
- 1000 Watts
- Convection Type
- True
- Number of Convection Fans
- 1
- Number of Rack Positions
- 5
- Oven Interior Color
- Gray
- Oven Light Quantity
- 2
- Oven Light Type
- Halogen
- Oven Light Watts
- 40 Watts
- Rack Position Type
- Ladder
- Rack Type 1
- Flat
- Rack Type 1 Quantity
- 2
- Rack Type 2
- Glide
- Rack Type 2 Quantity
- 1
- Window Type
- Extra Large Visual
Will it fit?
The product
- Width
- 35.94"
- Height
- 35.56"
- Depth
- 25⅞"
Installed, with the door open
- Depth, door openhow far it projects in use
- 43.94"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
