30" Electric Wall Oven and Microwave Combination with No Preheat + Air Fry
SKU PCWM3080AF · Model PCWM3080AF · Stainless Steel
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire Professional
Features in detail
Total Convection System
Gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast and more!
No Preheat
Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time.

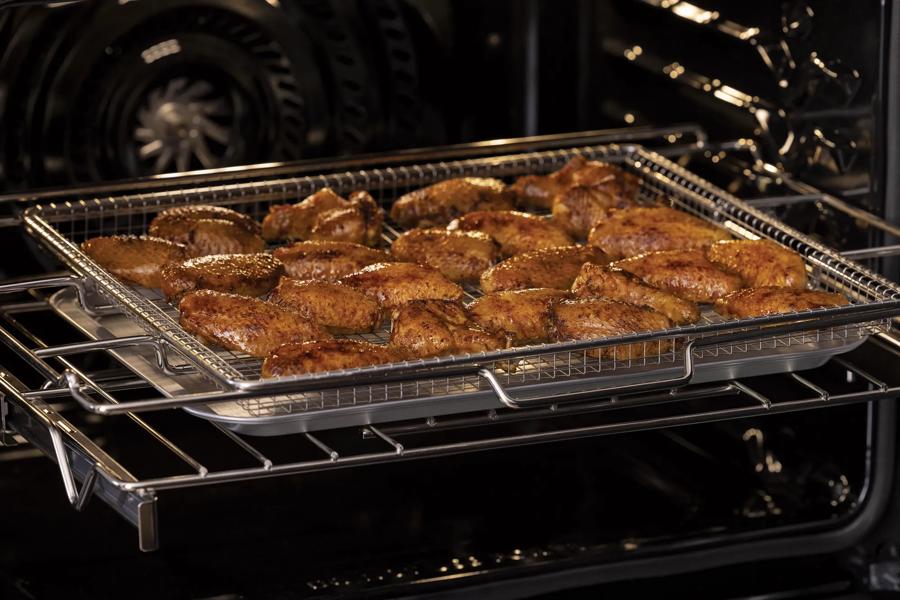

Air Fry
Make healthier and delicious meals for your entire family - right in your oven.

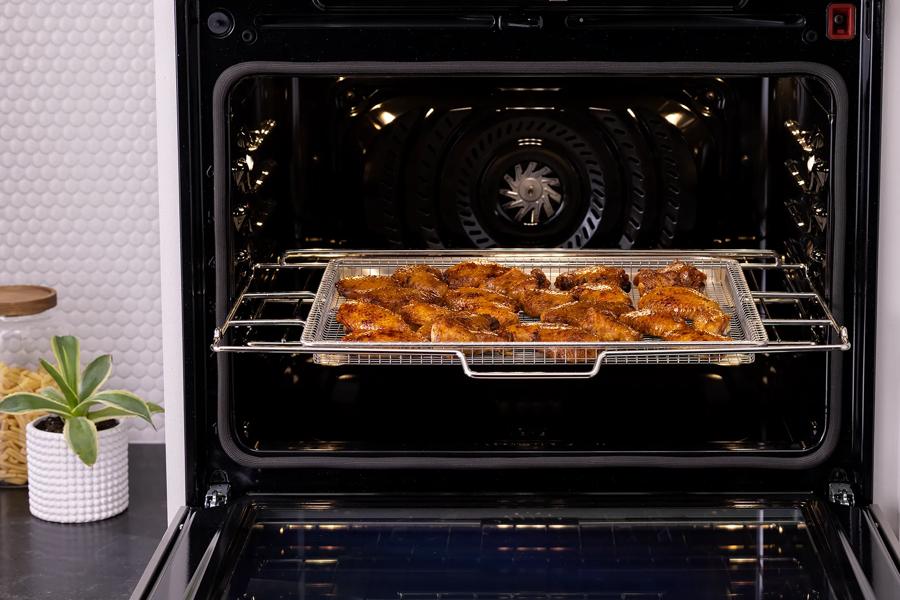

ReadyCook™ Air Fry Tray is included
For perfectly crispy and delicious Air Fry results.
Slow Cook
With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.
Steam Bake
With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
Temperature Probe
Monitors and alerts when the desired finished cooking temperature has been reached.
Frigidaire® Fit Promise
We promise that your new 30" Frigidaire® Professional Microwave Combination Oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs.
Convection Cooking
Get the great tasting results of the conventional convection oven, combined with the speed of microwave technology with our convection bake.
Self and Steam Clean Cycles
Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.

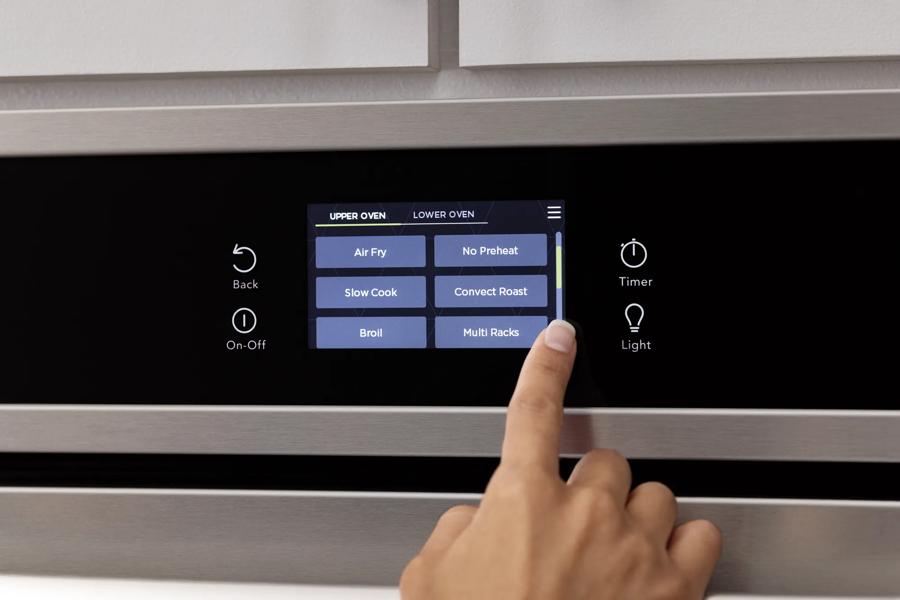

Premium Touch Screen Control Panel
Features a responsive 4.3 inch, full color, capacitive touch digital control panel.
Extra Large Oven Capacity
Cook more at once with our extra large, 5.3 cu.ft. capacity oven.
Description
This microwave combination oven features our most powerful and advanced Total Convection system, giving you so many different ways to cook.
Specifications
Configuration
- Color / Finish
- Stainless Steel
Capacity
- Oven Capacity
- 5.3 cu. ft.
Dimensions
- Cutout Depth
- 23.6 in
- Cutout Height
- 40.6 in
- Cutout Width
- 28.5 in
- Depth
- 27.6 in
- Depth (door open)
- 48.2 in
- Depth (without door)
- 25.2 in
- Height
- 41.6 in
- Weight
- 285 lb
- Width
- 29.9 in
- Depth (as published)
- 25 3/16"
- Depth With Door 90° Open
- 48 3/16"
- Depth With Handle
- 27 3/5"
- Maximum Cutout Height
- 41 1/2"
- Maximum Cutout Width
- 29"
- Microwave Capacity
- 1.7 Cu. Ft.
- Microwave Interior Depth
- 16 1/8"
- Microwave Interior Height
- 9 5/16"
- Microwave Interior Width
- 18 7/8"
- Minimum Cutout Height
- 40 5/8"
- Minimum Cutout Width
- 28 1/2"
- Oven Interior Depth
- 19 7/8"
- Oven Interior Height
- 18 1/8"
- Oven Interior Width
- 25 3/16"
Features
- Child Lock
- Yes
- Sabbath Mode
- Yes
Electrical
- Amperage
- 40 A
- Voltage
- 240 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- CSA Listed
- Yes
- RoHS
- Yes
- Star-K Certification
- Yes
- UL Listed
- Yes
Controls
- Control Lock
- Yes
Convection Cooking
- Convection Cooking - Bake
- Yes
- Convection Element
- 1650 Watts
Cooking Controls
- Air Fry
- Yes
- Air Sous Vide
- Yes
- Bake
- Yes
- Bake Time
- Yes
- Broil
- Yes
- Cancel
- Yes
- Clear Off
- Yes
- Clock
- Yes
- Convection Bake
- Yes
- Convection Roast
- Yes
- Cook Time
- Yes
- Dehydrate
- Yes
- Delay Clean
- Yes
- Delay Start
- Yes
- Fast Preheat
- Yes
- Keep Warm
- Yes
- Kitchen Timer
- Yes
- Light
- Yes
- My Favorite
- Yes
- No Preheat
- Yes
- Off
- Yes
- Oven Light
- Yes
- Preheat
- Yes
- Probe
- Yes
- Self Clean
- Yes
- Set Clock
- Yes
- Slow Cook
- Yes
- Start
- Yes
- Start Time
- Yes
- Steam Bake
- Yes
- Steam Clean
- Yes
- Steam Roast
- Yes
- Stop
- Yes
- Temperature Display
- Yes
- Timed Bake
- Yes
- Timer On / Off
- Yes
- User Preferences
- Yes
Cooking Controls Function
- Change between Continuous Bake Setting or 12-Hour Energy Saving Feature
- Yes
- Delayed Bake
- Yes
- Program Fahrenheit or Celsius
- Yes
- Silent Control Panel
- Yes
- Timed Cooking
- Yes
Display
- Display Interface Color
- White
- Display Light Color
- White
- Display Type
- Capacitive Touch
Electrical Specifications
- Amps @ 240 Volts
- 40 Amps
- Connected Load @ 240V
- 7.6 kW
- Minimum Circuit Required
- 40 Amps
- Voltage Rating
- 240 V
Exterior
- Door Swing
- Drop-Down Door
- Exterior Finish
- Smudge-Proof® Stainless Steel
General Specifications
- AB-1200
- Information available at frigidaire.com/en/ab1200
- Frigidaire Fit Promise
- Yes
- Product Weight
- 285 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Power Supply Connection Location
- Top Left
Internal Specifications
- Rack
- Yes
- Turntable Diameter
- 14"
- Turntable Material
- Glass
Microwave Control Features
- + 30 Seconds
- Yes - One Touch
Microwave Cooking
- Bacon
- Yes
- Beverage
- Yes
- Defrost
- Yes
- Melt / Soften
- Yes
- Microwave Cooking Power
- 1000 Watts
- Popcorn
- Yes
- Reheat
- Yes
- Rice
- Yes
- Top Grill Mode
- Yes
- Veggies
- Yes
Oven
- Bake Element
- 2600 Watts
- Bake Element Pass
- 4
- Bake Element Type
- Hidden
- Broil Element
- 4000 Watts
- Broil Element Pass
- 6
- Broil System
- Yes
- Cleaning System
- Yes
- Convection
- Yes
- Convection Element
- 3800 Watts
- Convection Type
- Total
- Number of Convection Fans
- 1
- Number of Rack Positions
- 6
- Oven Interior Color
- Midnight Black
- Oven Light Quantity
- 2
- Oven Light Type
- Halogen
- Oven Light Watts
- 40 Watts
- Rack Position Type
- Embossed
- Rack Type 1
- Handle
- Rack Type 1 Quantity
- 2
- Rack Type 2
- Glide
- Rack Type 2 Quantity
- 1
Will it fit?
The product
- Width
- 29⅞"
- Height
- 41.56"
- Depth
- 27.6"
- Depth without doorhow far it sits into the room
- 25.19"
Installed, with the door open
- Depth, door openhow far it projects in use
- 48.19"
Cutout
- Cutout width
- 28½"
- Cutout height
- 40⅝"
- Cutout depth
- 23⅝"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
