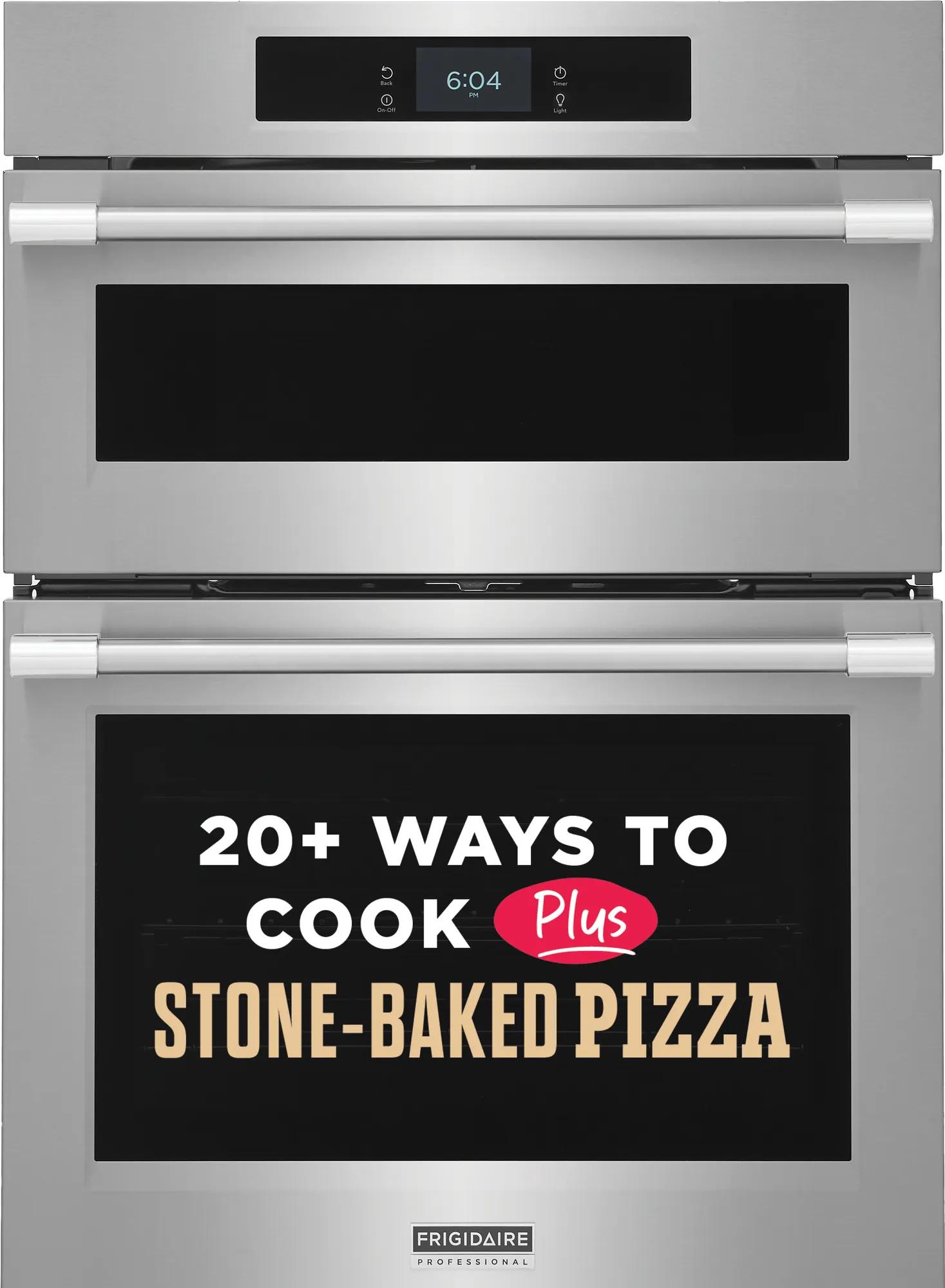

30" Microwave Combination Wall Oven with Stone-Baked Pizza Mode
SKU PCWM3085AF · Model PCWM3085AF · Stainless Steel
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire Professional
Features in detail
Stone-Baked Pizza Mode
Engineered to reach 750°F+, providing the high heat required to bake authentic pizzas, calzones, and gluten-free or cauliflower crusts — in as little as 2 minutes¹ — right in your oven.
Pizza Shield, Stone and Peel Included
Start cooking fresh pizzas immediately, the Stone-Baked Pizza Shield, 15" x 15" Stone and Peel are included.
20+ Ways to Cook with Total Convection
Enjoy over 20+ ways to cook, like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast, Air Sous Vide, Bread Proof, Dehydrate and now Stone-Baked Pizza!
No Preheat
Eliminates time wasted waiting for your oven to heat up - simply place your food in the cold oven and get to mealtime, in no time.
Air Fry
Air Fry allows you to make healthier and delicious meals for the entire family, right in your oven.

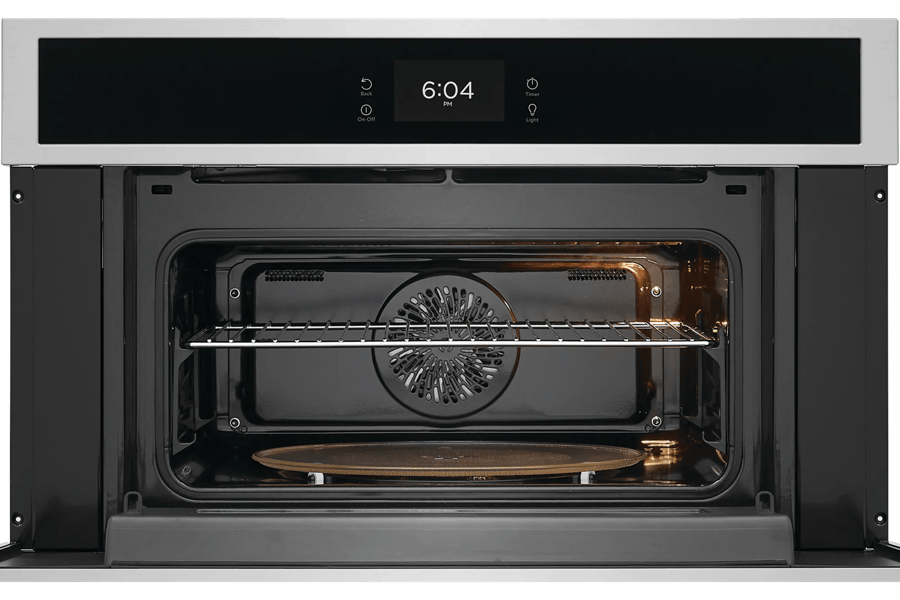

Convection Microwave
Microwave features the great tasting results of a convection oven, combined with the speed of a microwave.
Slow Cook
Foods cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.
Temperature Probe
The Temperature Probe monitors and alerts when the desired finished cooking temperature has been reached.
Frigidaire® Fit Promise
We promise that your new 30" Frigidaire® microwave combination wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs.
Stay Connected with the Frigidaire App
Download the Frigidaire App to your smartphone to connect and to program your oven for remote cooking.
Steam Bake
With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
Steam and Self-Cleaning Options
Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4-hour cycles.
Description
This oven offers 20+ cooking modes, including Frigidaire's Stone-Baked Pizza Mode, built to reach 750°F+ so you can make fresh, neopolitan pizzas, calzones and specialty crust pizzas in as little as two minutes.
Specifications
Configuration
- Color / Finish
- Stainless Steel
Capacity
- Oven Capacity
- 5.3 cu. ft.
Dimensions
- Cutout Depth
- 23.5 in
- Cutout Height
- 40.6 in
- Cutout Width
- 28.5 in
- Depth
- 27.6 in
- Depth (door open)
- 48.2 in
- Depth (without door)
- 25.2 in
- Height
- 41.6 in
- Weight
- 285 lb
- Width
- 29.9 in
- Depth (as published)
- 25 3/16"
- Depth With Door 90° Open
- 48 3/16"
- Depth With Handle
- 27 3/5"
- Maximum Cutout Height
- 41 1/2"
- Maximum Cutout Width
- 29"
- Microwave Capacity
- 1.7 Cu. Ft.
- Microwave Interior Depth
- 16 1/8"
- Microwave Interior Height
- 9 5/16"
- Microwave Interior Width
- 18 7/8"
- Minimum Cutout Height
- 40 5/8"
- Minimum Cutout Width
- 28 1/2"
- Oven Interior Depth
- 19 7/8"
- Oven Interior Height
- 18 1/8"
- Oven Interior Width
- 25 3/16"
Features
- Connected (Smart)
- Yes
- Sabbath Mode
- Yes
Energy
- Annual Energy Use
- 283 kWh/yr
Electrical
- Amperage
- 40 A
- Voltage
- 240 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- CSA Listed
- Yes
- RoHS
- Yes
- Star-K Certification
- Yes
- UL Listed
- Yes
Connectivity
- Wi-Fi Enabled
- Yes
Controls
- Control Lock
- Yes
Cooking Controls
- Air Fry
- Yes
- Air Sous Vide
- Yes
- Bake
- Yes
- Bake Time
- Yes
- Bread Proof
- Yes
- Broil
- Yes
- Clock
- Yes
- Convection Bake
- Yes
- Convection Convert
- Yes
- Convection Roast
- Yes
- Cook Time
- Yes
- Dehydrate
- Yes
- Delay Clean
- Yes
- Delay Start
- Yes
- Door Lock
- Yes
- Keep Warm
- Yes
- Kitchen Timer
- Yes
- Light
- Yes
- Multi-Rack Cooking
- Yes
- My Favorite
- Yes
- No Preheat
- Yes
- Oven Light
- Yes
- Oven Lock
- Yes
- Probe
- Yes
- Self Clean
- Yes
- Set Clock
- Yes
- Slow Cook
- Yes
- Start
- Yes
- Start Time
- Yes
- Steam Bake
- Yes
- Steam Clean
- Yes
- Steam Roast
- Yes
- Stone-Baked Pizza
- Yes
- Temperature Display
- Yes
- Timer On / Off
- Yes
- User Preferences
- Yes
Cooking Controls Function
- Change between Continuous Bake Setting or 12-Hour Energy Saving Feature
- Yes
- Delayed Bake
- Yes
- Program Fahrenheit or Celsius
- Yes
- Silent Control Panel
- Yes
Display
- Display Interface Color
- White
- Display Light Color
- White
- Display Type
- Capacitive Touch
Electrical Specifications
- Amps @ 240 Volts
- 40 Amps
- Minimum Circuit Required
- 40 Amps
- Voltage Rating
- 240 V
Exterior
- Door Swing
- Drop-Down Door
- Exterior Finish
- Smudge-Proof® Stainless Steel
General Specifications
- AB-1200
- Information available at frigidaire.com/en/ab1200
- Annual Energy
- 283 kWh
- Frigidaire Fit Promise
- Yes
- Product Weight
- 285 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Included Pizza Accessories
- Peel
- Yes
- Pizza Shield
- Yes
- Pizza Stone
- Yes
Installation
- Power Supply Connection Location
- Top Left
Internal Specifications
- Rack
- Yes
- Turntable Diameter
- 14"
- Turntable Material
- Glass
Microwave Control Features
- + 30 Seconds
- Yes - One Touch
Microwave Cooking
- Bacon
- Yes
- Beverage
- Yes
- Defrost
- Yes
- Melt / Soften
- Yes
- Microwave Cooking Power
- 1000 Watts
- Popcorn
- Yes
- Reheat
- Yes
- Rice
- Yes
- Top Grill Mode
- Yes
- Veggies
- Yes
Oven
- Bake Element
- 2500 Watts
- Bake Element Pass
- 8
- Bake Element Type
- Hidden
- Broil Element
- 4000 Watts
- Broil Element Pass
- 6
- Broil System
- Yes
- Cleaning System
- Yes
- Convection
- Yes
- Convection Element
- 3800 Watts
- Convection Type
- Total
- Number of Convection Fans
- 1
- Number of Rack Positions
- 6
- Oven Interior Color
- Midnight Black
- Oven Light Quantity
- 2
- Oven Light Type
- Halogen
- Oven Light Watts
- 40 Watts
- Rack Position Type
- Embossed
- Rack Type 1
- Handle
- Rack Type 1 Quantity
- 1
- Rack Type 2
- Glide
- Rack Type 2 Quantity
- 1
- Rack Type 3
- Air Fry Tray
- Rack Type 3 Quantity
- 1
Will it fit?
The product
- Width
- 29⅞"
- Height
- 41.56"
- Depth
- 27.6"
- Depth without doorhow far it sits into the room
- 25.19"
Installed, with the door open
- Depth, door openhow far it projects in use
- 48.19"
Cutout
- Cutout width
- 28½"
- Cutout height
- 40⅝"
- Cutout depth
- 23½"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
