30" Single Wall Oven with No Preheat + Air Fry
SKU PCWS3080AF · Model PCWS3080AF · Stainless Steel
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire Professional
Features in detail
Total Convection System
Gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast and more!
No Preheat
Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time.
Air Fry
Make healthier and delicious meals for your entire family - right in your oven.

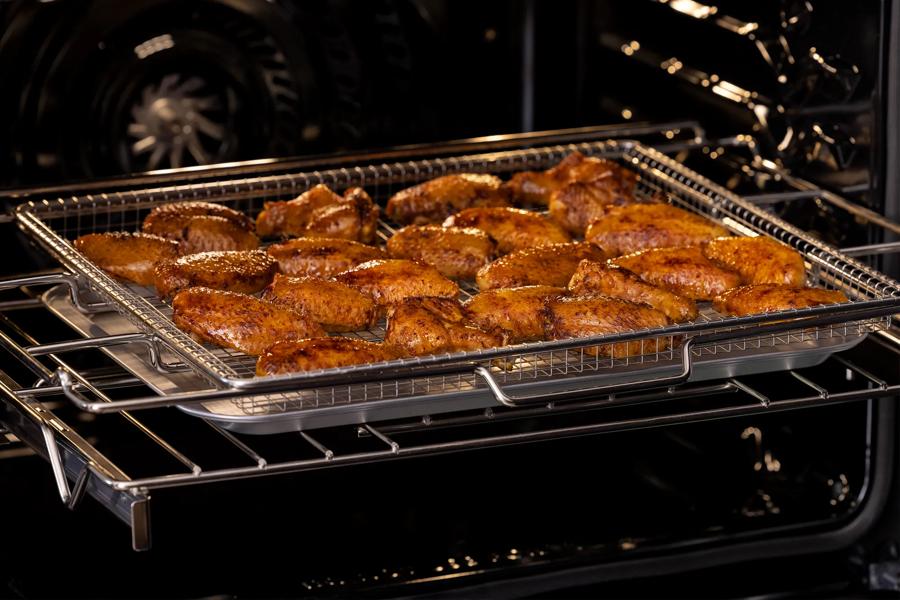

ReadyCook™ Air Fry Tray is included
For perfectly crispy and delicious Air Fry results.
Slow Cook
With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.
Temperature Probe
Monitors and alerts when the desired finished cooking temperature has been reached.
Steam Bake
With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
Frigidaire® Fit Promise
We promise that your new 30" Frigidaire® Professional single wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs.
Self and Steam Clean Cycles
Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
Steam Roast
Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.
Premium Glide Rack
Our extending Glide Rack makes it easier to monitor and lift your food out of the oven.
Extra Large Oven Capacity
Cook more at once with our extra large, 5.3 cu.ft. capacity oven.
Description
This single wall oven features our most powerful and advanced Total Convection system, giving you so many different ways to cook.
Specifications
Configuration
- Color / Finish
- Stainless Steel
Capacity
- Oven Capacity
- 5.3 cu. ft.
Dimensions
- Cutout Height
- 26.8 in
- Cutout Width
- 28.5 in
- Depth
- 27.6 in
- Depth (door open)
- 48.2 in
- Depth (without door)
- 25.2 in
- Height
- 28 in
- Weight
- 163 lb
- Width
- 29.9 in
- Depth (as published)
- 25 3/16"
- Depth With Door 90° Open
- 48 3/16"
- Depth With Handle
- 27 3/5"
- Maximum Cutout Height
- 28"
- Maximum Cutout Width
- 29"
- Minimum Cutout Height
- 26 3/4"
- Minimum Cutout Width
- 28 1/2"
- Oven Interior Depth
- 19 7/8"
- Oven Interior Height
- 18 1/8"
- Oven Interior Width
- 25 1/5"
Features
- ADA Compliant
- Yes
- Child Lock
- Yes
- Sabbath Mode
- Yes
Electrical
- Amperage
- 20 A
- Voltage
- 240 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Accessories
- Optional Trim Kit Part Number
- WOMC3TRIMSS
Certifications and Approvals
- CSA Listed
- Yes
- RoHS
- Yes
- Star-K Certification
- Yes
- UL Listed
- Yes
Controls
- Control Lock
- Yes
Cooking Controls
- Air Fry
- Yes
- Bake
- Yes
- Broil
- Yes
- Cancel
- Yes
- Clear Off
- Yes
- Clock
- Yes
- Convection Bake
- Yes
- Convection Roast
- Yes
- Delay Clean
- Yes
- Delay Start
- Yes
- Fast Preheat
- Yes
- Kitchen Timer
- Yes
- Light
- Yes
- No Preheat
- Yes
- Off
- Yes
- Oven Light
- Yes
- Probe
- Yes
- Self Clean
- Yes
- Set Clock
- Yes
- Slow Cook
- Yes
- Start
- Yes
- Steam Bake
- Yes
- Steam Clean
- Yes
- Steam Roast
- Yes
- Stop
- Yes
- Temperature Display
- Yes
- Timer On / Off
- Yes
- User Preferences
- Yes
Cooking Controls Function
- Change between Continuous Bake Setting or 12-Hour Energy Saving Feature
- Yes
- Delayed Bake
- Yes
- Program Fahrenheit or Celsius
- Yes
- Silent Control Panel
- Yes
Display
- Display Interface Color
- White
- Display Light Color
- White
- Display Type
- Capacitive Touch
Electrical Specifications
- Amps @ 240 Volts
- 20 Amps
- Connected Load @ 240V
- 4.5 kW
- Minimum Circuit Required
- 20 Amps
- Voltage Rating
- 240 V
Exterior
- Exterior Finish
- Smudge-Proof® Stainless Steel
General Specifications
- Frigidaire Fit Promise
- Yes
- Product Weight
- 163 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Power Supply Connection Location
- Top Left
Oven
- Bake Element
- 2500 Watts
- Bake Element Pass
- 8
- Bake Element Type
- Hidden
- Broil Element
- 4000 Watts
- Broil Element Pass
- 6
- Broil System
- Yes
- Cleaning System
- Yes
- Convection
- Yes
- Convection Element
- 3800 Watts
- Convection Type
- Total
- Number of Convection Fans
- 1
- Number of Rack Positions
- 6
- Oven Interior Color
- Midnight Black
- Oven Light Quantity
- 2
- Oven Light Type
- Halogen
- Oven Light Watts
- 40 Watts
- Rack Position Type
- Embossed
- Rack Type 1
- Handle
- Rack Type 1 Quantity
- 1
- Rack Type 2
- Glide
- Rack Type 2 Quantity
- 1
- Rack Type 3
- Air Fry Tray
- Rack Type 3 Quantity
- 1
Will it fit?
The product
- Width
- 29⅞"
- Height
- 28"
- Depth
- 27.6"
- Depth without doorhow far it sits into the room
- 25.19"
Installed, with the door open
- Depth, door openhow far it projects in use
- 48.19"
Cutout
- Cutout width
- 28½"
- Cutout height
- 26¾"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
