24" Stainless Steel Tub Dishwasher with CleanBoost™ and Adaptive Quick Wash
SKU PDSH4816BF · Model PDSH4816BF · Stainless Steel
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire Professional
Features in detail

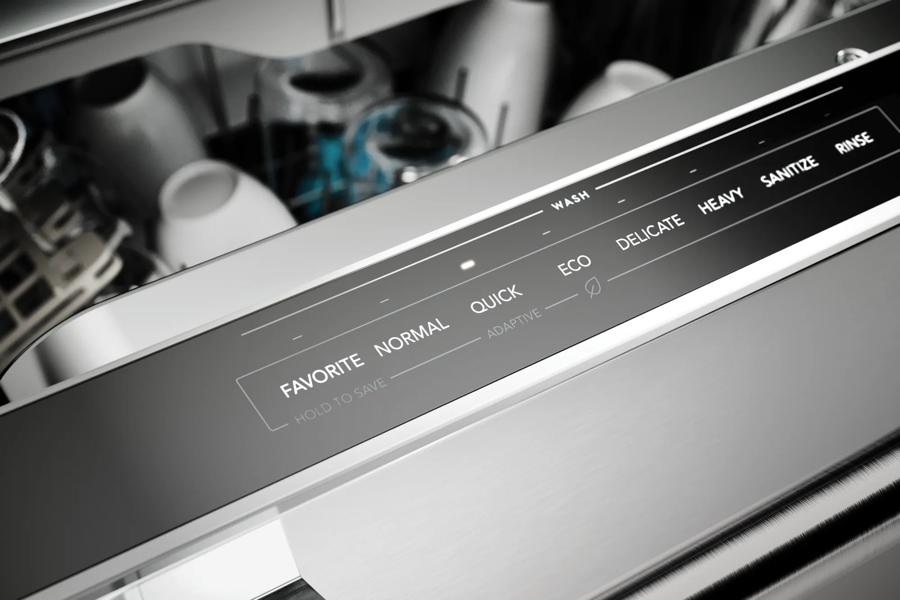

Adaptive Quick Wash
The Adaptive Quick Wash Cycle adjusts cleaning performance and resources based on soil level for the cleanest and fastest quick wash in its class*

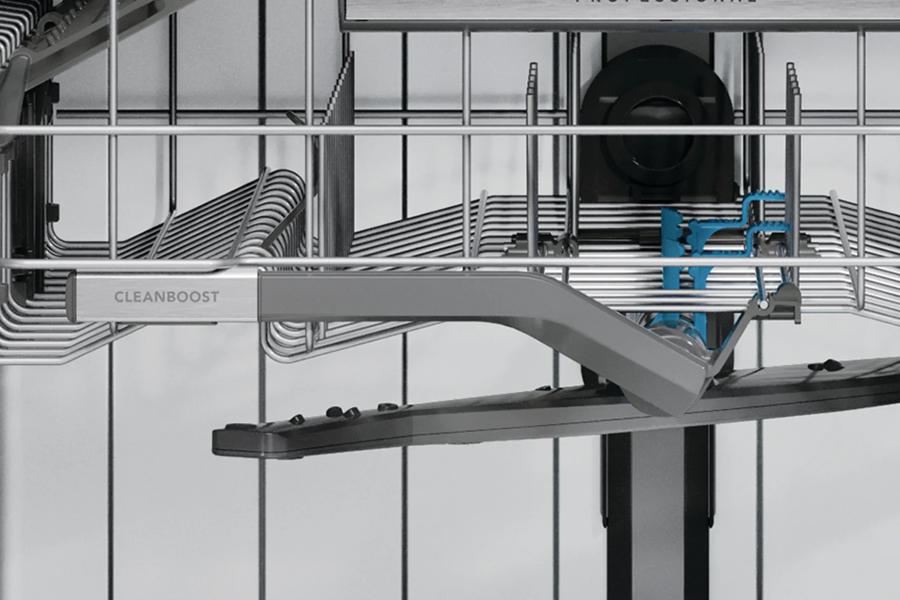

Amplify your Clean with CleanBoost®
Remove tough baked-on foods and boost the cleaning power of any detergent with our patented CleanBoost® premix technology
Keep your Kitchen Quiet with 45 dBa
Keep your kitchen quiet and the noise inside your dishwasher where it belongs with extra, quality insulation

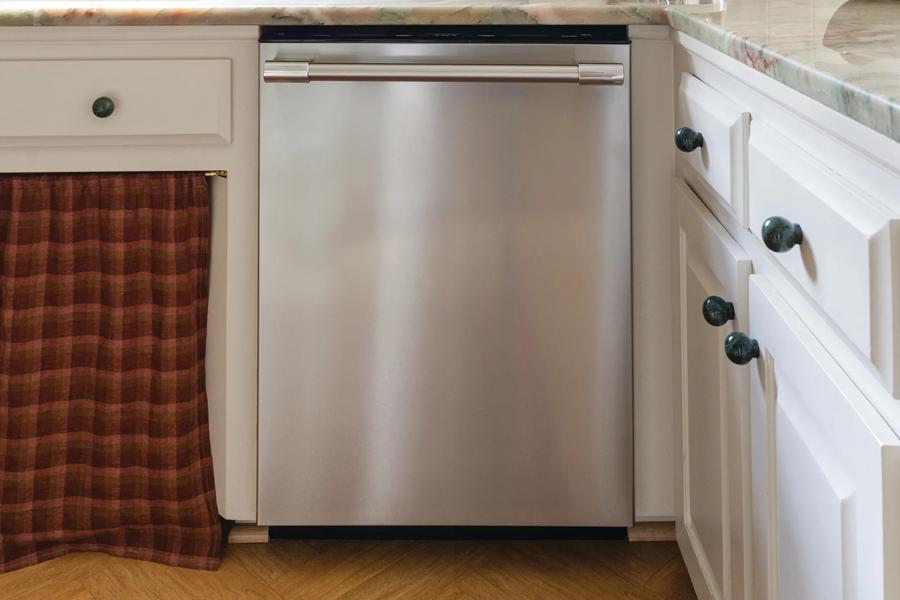

Protecting Floors Against Leaks
In the event of a leak a sensor is triggered stopping the cycle and containing overflowed water in a tray at the bottom of the dishwasher
DishSense® Sensor Technology
Avoid pre-rinsing with our DishSense® sensor technology that automatically adjusts the cycle based on the soil level of your dishes
Target Spray Zones
Clean hard-to-reach spots with our Target Spray Zones that target tough spots for the ultimate clean
OrbitClean® Wash System
Featuring a rotating wash arm with multi-directional spray patterns to provide maximum coverage without using more water
Third-Level Rack
Save time loading and unloading with a third level rack that easily fits silverware, cooking utensils and tools
Smooth Glide Upper Racks
Dish racks so smooth they extend effortlessly to help making loading and unloading easier
Premium Capacitive Touch User Interface
Our sleek designed capacitive multi-touch user interface is intuitive and helps you to easily select the right program for your dishes
Adjustable Racks
Make loading the dishwasher easier with adjustable racks, providing enough space to fit even your largest items
Enhanced Drying with MaxBoost™ Dry
MaxBoost Dry™ technology uses heat and a fan to direct moisture out and pull in fresh air that dries your dishes.
Description
This 24" Stainless Steel Tub Dishwasher offers show-stopping design and cleans baked on foods better with CleanBoost® technology.
Specifications
Configuration
- Color / Finish
- Stainless Steel
Capacity
- Place Settings
- 14
Dimensions
- Depth
- 24.3 in
- Depth (door open)
- 50.3 in
- Depth (with handle)
- 26.7 in
- Height
- 33.8 in
- Weight
- 86 lb
- Width
- 24 in
- Depth With Door Open
- 50 1/4"
- Maximum Height
- 35 3/4"
- Minimum Height
- 33 3/4"
Features
- Sound Level
- 45 dBA
- Tub Material
- Stainless Steel
Energy
- Annual Energy Use
- 240 kWh/yr
- ENERGY STAR Certified
- Yes
Electrical
- Amperage
- 15 A
- Voltage
- 120 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- CEE Tier
- Tier 1
- cUL Listed
- Yes
- ETL Listed
- Yes
- Meets ASSE 1006 Requirements
- Yes
- NSF Certified
- Yes
- UL Listed
- Yes
Controls
- Control Lock
- Yes
- Delay Start Hours
- 1-12 Hours
- Digital Display
- Yes
- Rinse Aid Indicator
- Yes
Dishwasher
- Detergent Dispenser
- Yes
- Filter Material
- Stainless Steel
- Filter Trap
- Removable
- Filtered Water
- 100 %
- Hard Food Disposer or Filtration
- Yes
- Leak Detection System
- Yes
- Lower Spray Arm
- Orbit
- Middle Spray Arm
- Bi-Beam
- Motor Speeds
- Multi-Speed
- Place Setting Capacity
- 14
- Rinse Aid Dispenser
- Yes
- Smart Soil Sensor
- Yes
- Status Indicator Floor Beam
- Yes
- Tub Color
- Stainless Steel
- Tub Design
- Tall Tub
- Upper Spray Arm
- Spray Arm
- Wash Levels
- 5
- Wash System
- Direct Feed
Dishwasher Cycles
- China Crystal
- Yes
- Energy Saver
- Yes
- Favorite
- Yes
- Heavy
- Yes
- Normal
- Yes
- Number of Cycles
- 7
- Quick
- Yes
- Sanitize
- Yes
Dishwasher Options
- Dry - Air
- Yes
- Dry - Heat
- Yes
- Dry - MaxBoost
- Yes
- Drying System
- MaxBoost
- Heated Dry
- Yes
- Start/Cancel
- Yes
Electrical Specifications
- Amps @ 120 Volts
- 15 Amps
- Voltage Rating
- 120 V
Exterior
- Door Latch
- Pull
- Door Type
- StayPut
- Exterior Finish
- Smudge-Proof® Stainless Steel
General Specifications
- Annual Energy
- 240 kWh
- Product Weight
- 86 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Connection Location
- Right Bottom
- Number of Leveling Legs
- 3
- Water Inlet Location
- Left Bottom Front
Lower Rack
- Maximum Height Clearance
- 13 1/4"
- Minimum Height Clearance
- 11 1/4"
- Number of Silverware Basket
- 1
- Number of Silverware Basket Lids
- 2
- Rack Coating
- Nylon
- Rack Type
- Deluxe
Third Level Rack
- Rack Coating
- Nylon
- Third Level Rack
- Yes
Upper Rack
- Cup Shelf
- Yes
- Fold-Down
- Yes
- Maximum Height Clearance
- 10 3/8"
- Minimum Height Clearance
- 8 1/2"
- Rack Coating
- Nylon
- Rack Type
- Adjustable
- Stemware Holder
- Yes
- Targeted Wash Zone
- Yes
Will it fit?
The product
- Width
- 24"
- Height
- 33¾"
- Depth
- 24¼"
- Depth with handle
- 26.69"
Installed, with the door open
- Depth, door openhow far it projects in use
- 50¼"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
