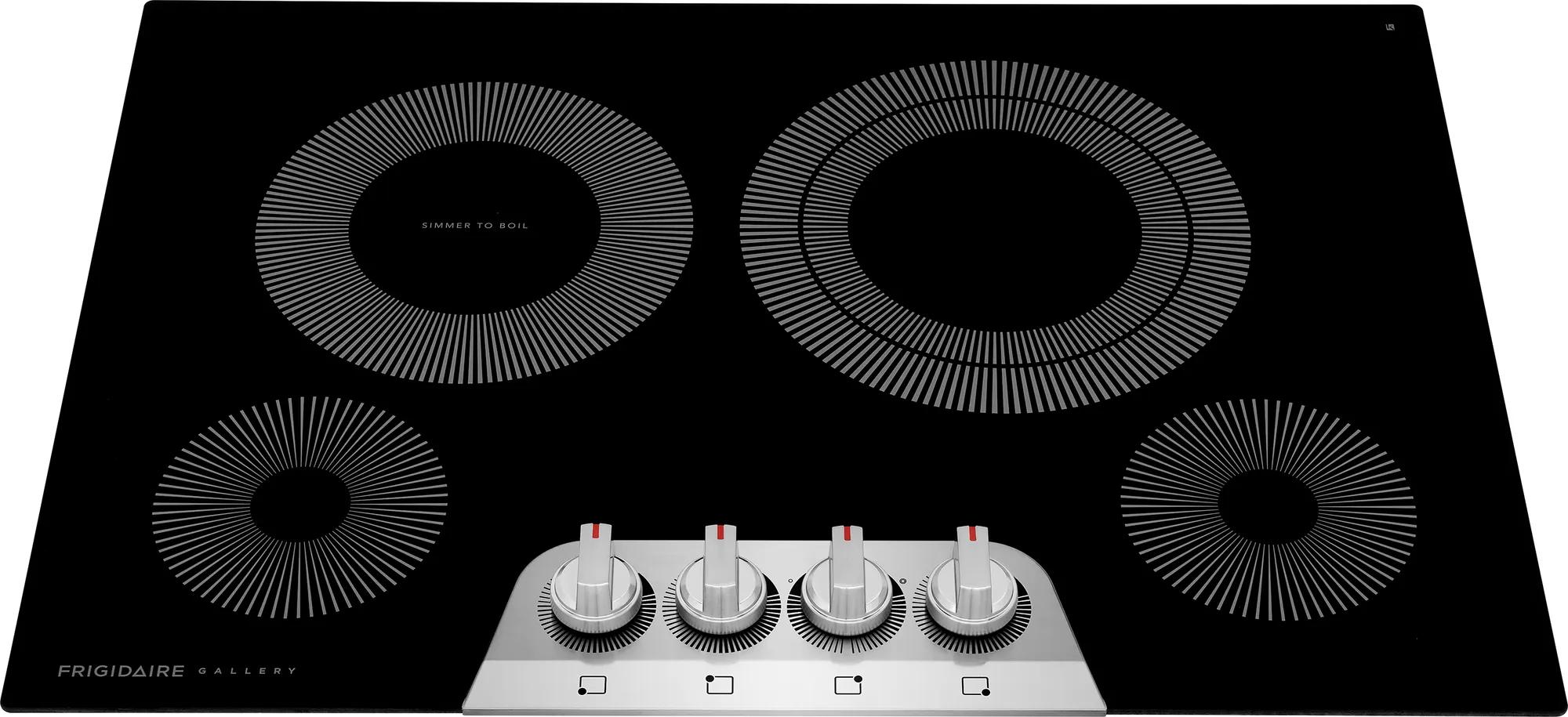

30" Electric Cooktop with PowerPlus®
SKU GCCE3049AS · Model GCCE3049AS · Stainless Steel
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire Gallery
Features in detail
PowerPlus® Element
The 3,200-watt PowerPlus® Element brings water to a boil faster, while EvenTemp™ technology helps create consistently delicious meals.

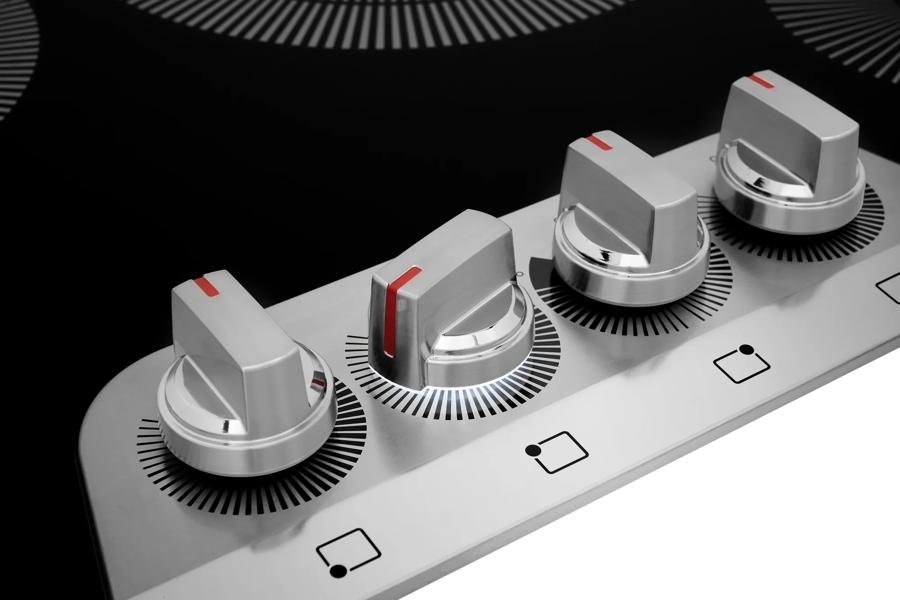

Backlit LED Knobs
Backlit LED knobs look great and provide visual heat awareness. White glows while cooking. Red glows after shutoff while the surface remains hot.
Frigidaire® Fit Promise
We promise that your new 30" Frigidaire radiant cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.

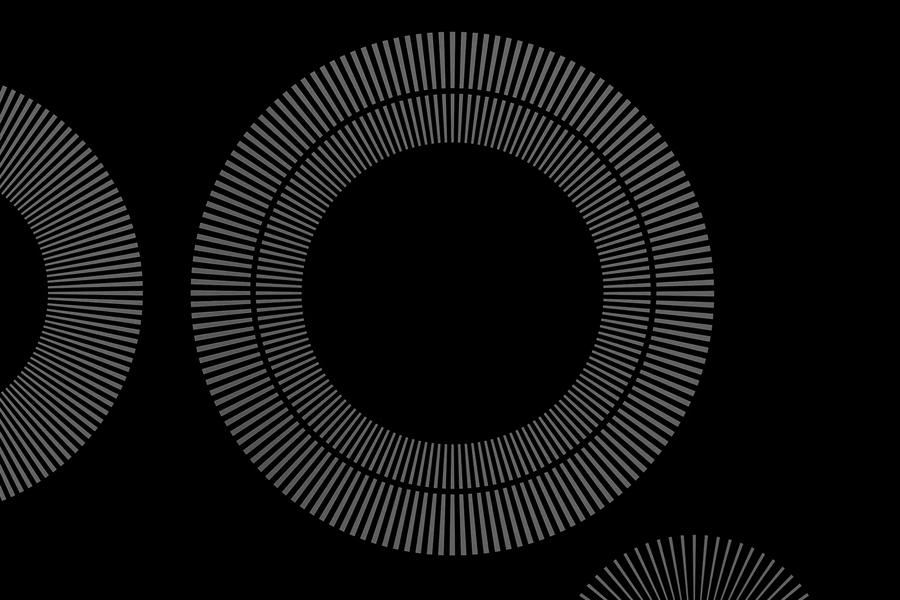

2-in-1 Dual Expandable Element
Our convenient 2-in-1 element expands from 9" for smaller pots to 12" for larger cookware, providing more cooktop flexibility.

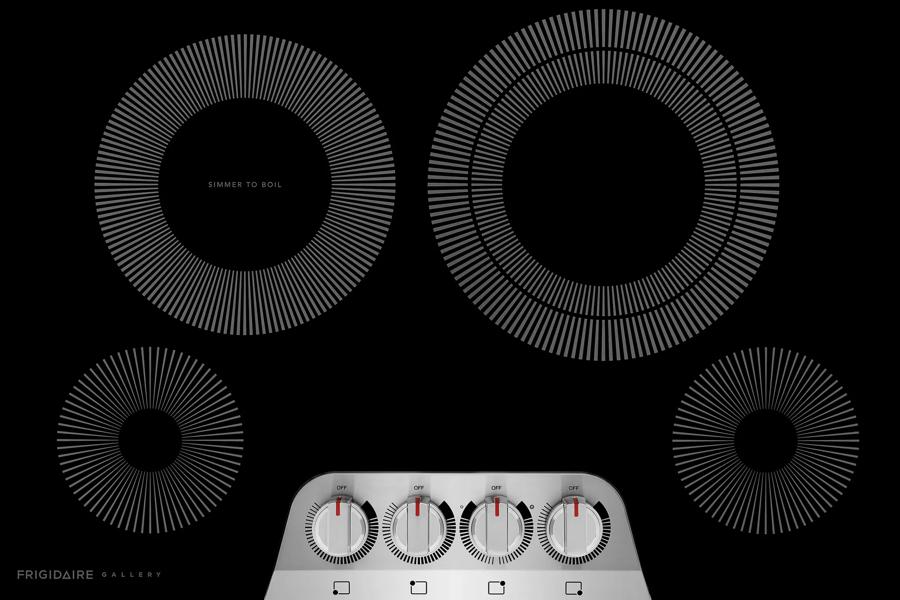

Cooktop Keep Warm Zone
Keep food warm until everything - and everyone - is ready.

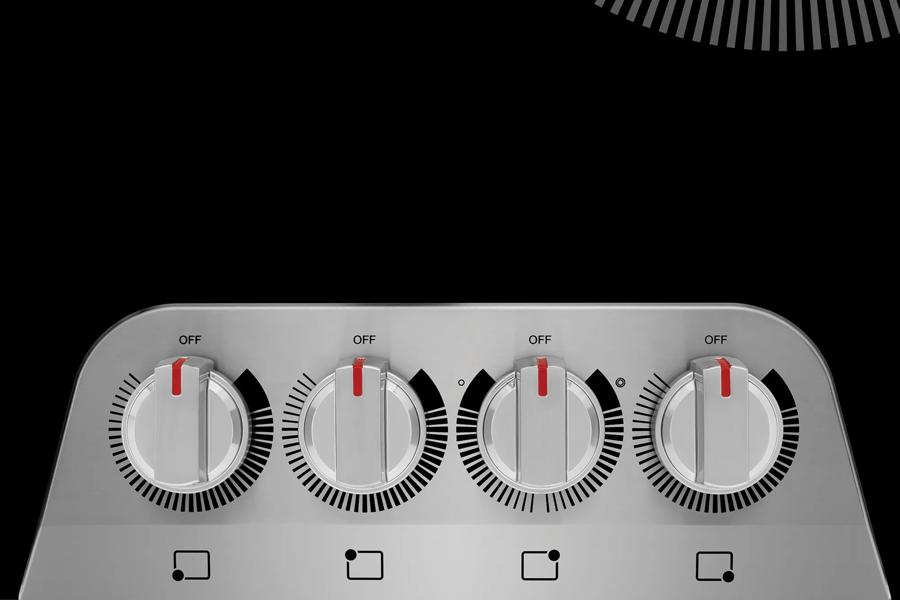

Easy to Use Front Controls
Located on the front of the cooktop so you to adjust the temperature without reaching over hot items.
Easy-to-Clean Glass Cooktop
Wipe away spills more easily with the smooth ceramic glass cooktop.
Installation over Wall Oven Approved
Cooktops are approved for installation above any of our Frigidaire electric wall ovens.
Description
Features five cooktop elements, including a powerful 3,200-watt element delivers rapid heat for faster boils
Specifications
Configuration
- Color / Finish
- Stainless Steel
Dimensions
- Cutout Depth
- 19.6 in
- Cutout Height
- 5 in
- Cutout Width
- 28.5 in
- Depth
- 21.4 in
- Height
- 2.6 in
- Weight
- 31 lb
- Width
- 30.6 in
- Maximum Cutout Depth
- 20 1/2"
- Maximum Cutout Width
- 29 7/8"
- Minimum Cutout Depth
- 19 5/8"
- Minimum Cutout Width
- 28 1/2"
Features
- ADA Compliant
- Yes
- Cooktop Technology
- Radiant
- Sabbath Mode
- No
Electrical
- Amperage
- 35.8 A
- Voltage
- 240 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- CSA Listed
- Yes
- UL Listed
- Yes
Cooktop
- Cooking Surface Type
- Smooth
- Hot-Surface Indicator Light
- Yes
Cooktop Performance
- Left Front Element Burner
- 1200 Watts
- Left Front Element Burner Size
- 6"
- Left Rear Element Burner
- 3200 Watts
- Left Rear Element Burner Size
- 9"
- Right Front Element Burner
- 1200 Watts
- Right Front Element Burner Size
- 6"
- Right Rear Element Burner (Large)
- 3000 Watts
- Right Rear Element Burner (Small)
- 1800 Watts
- Right Rear Element Burner Size (Large)
- 12"
- Right Rear Element Burner Size (Small)
- 9"
Display
- Display Type
- Mechanical
Electrical Specifications
- Amps @ 240 Volts
- 35.8 Amps
- Connected Load @ 240V
- 8.6 kW
- Minimum Circuit Required
- 40 Amps
- Voltage Rating
- 240 V
General Specifications
- AB-1200
- Information available at frigidaire.com/en/ab1200
- Frigidaire Fit Promise
- Yes
- Product Weight
- 31 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Installed Over a Wall Oven
- Yes
- Power Supply Connection Location
- Right Center
Will it fit?
The product
- Width
- 30⅝"
- Height
- 2⅝"
- Depth
- 21⅜"
Cutout
- Cutout width
- 28½"
- Cutout height
- 5"
- Cutout depth
- 19⅝"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
