30" Electric Cooktop — Stainless Steel (GCCE3070BS)
SKU GCCE3070BS · Model GCCE3070BS · Stainless Steel
Color: Stainless Steel
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire Gallery
Features in detail

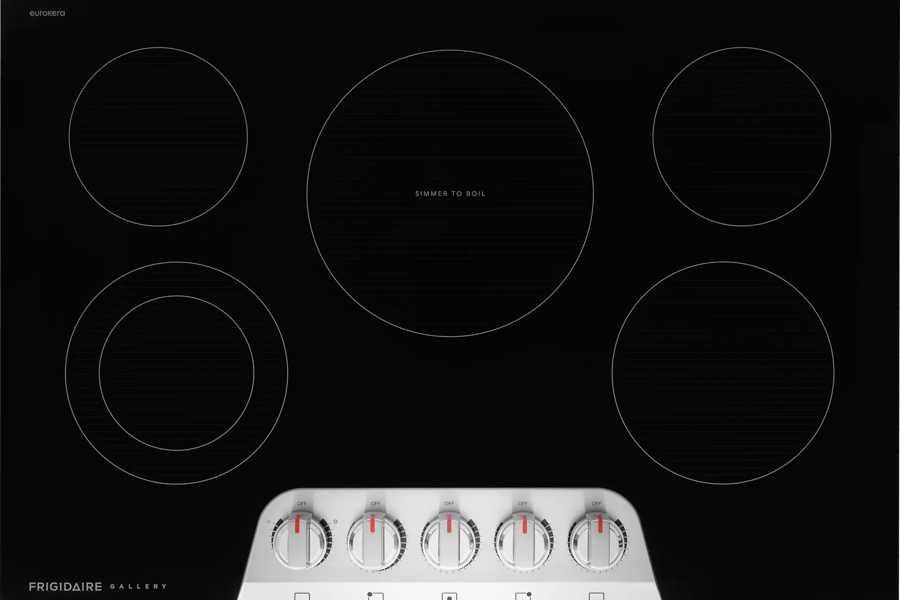

Five Element Cooktop
Designed to handle all of your cooking needs with a powerful 3,200-watt PowerPlus® Element, a versatile 2-in-1 Dual Element, and convenient Keep Warm Zone.

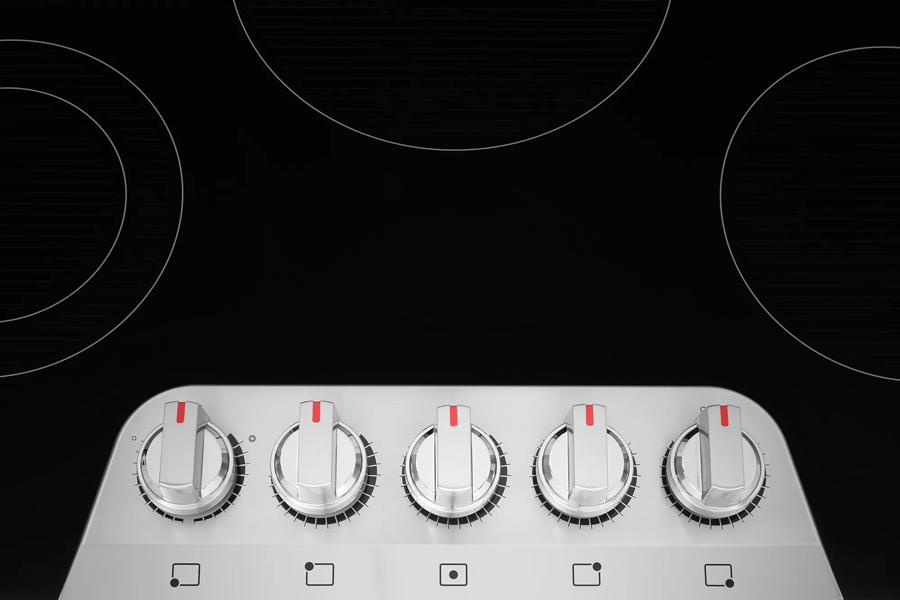

Backlit LED Knobs
Backlit LED knobs look great and provide visual heat awareness. White glows while cooking. Red glows after shutoff while the surface remains hot.
Frigidaire® Fit Promise
We promise that your new 30" Frigidaire electric cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
PowerPlus® Element
The 3,200-watt PowerPlus® Element brings water to a boil faster, while EvenTemp™ technology helps create consistently delicious meals.

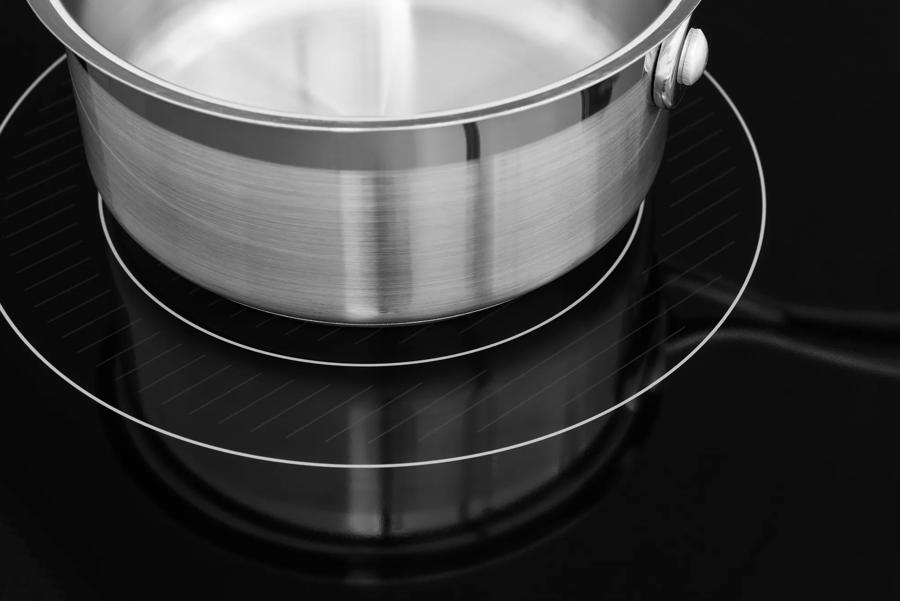

2-in-1 Dual Element
Expands from 5" to 7" to accommodate various sizes of cookware.
Ceramic Glass Cooktop
Easily wipe away spills from the smooth glass cooktop.
Front Control Design
Controls that are located on the front of the cooktop allow you to adjust the temperature without reaching over hot items.
Keep Warm Zone
Keeps food warm until everything - and everyone - is ready.
Approved Over Frigidaire® Electric Wall Ovens
Cooktops are approved for installation above any of our Frigidaire electric wall ovens.
Description
Enjoy power and consistency with the 3,200-watt PowerPlus® Element
Specifications
Configuration
- Color / Finish
- Stainless Steel
Dimensions
- Cutout Depth
- 19.6 in
- Cutout Height
- 5 in
- Cutout Width
- 28.5 in
- Depth
- 21.4 in
- Height
- 2.6 in
- Weight
- 31 lb
- Width
- 30.6 in
- Maximum Cutout Depth
- 20 1/2"
- Maximum Cutout Width
- 29 7/8"
- Minimum Cutout Depth
- 19 5/8"
- Minimum Cutout Width
- 28 1/2"
Features
- ADA Compliant
- Yes
- Cooktop Technology
- Radiant
Electrical
- Amperage
- 38.3 A
- Voltage
- 240 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- CSA Listed
- Yes
- UL Listed
- Yes
Cooktop
- Cooking Surface Type
- Smooth
- Hot-Surface Indicator Light
- Yes
Cooktop Performance
- Center Rear Element Burner
- 3200 Watts
- Center Rear Element Burner Size
- 9"
- Left Front Element Burner (Large)
- 1800 Watts
- Left Front Element Burner (Small)
- 750 Watts
- Left Front Element Burner Size (Large)
- 7"
- Left Front Element Burner Size (Small)
- 5"
- Left Rear Element Burner
- 1200 Watts
- Left Rear Element Burner Size
- 6"
- Right Front Element Burner
- 1800 Watts
- Right Front Element Burner Size
- 7"
- Right Rear Element Burner
- 1200 Watts
- Right Rear Element Burner Size
- 6"
Electrical Specifications
- Amps @ 240 Volts
- 38.3 Amps
- Connected Load @ 240V
- 9.2 kW
- Minimum Circuit Required
- 40 Amps
- Voltage Rating
- 240 V
Exterior
- Backlit Knobs
- Yes
General Specifications
- AB-1200
- Information available at frigidaire.com/en/ab1200
- Frigidaire Fit Promise
- Yes
- Product Weight
- 31 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Installed Over a Wall Oven
- Yes
- Power Supply Connection Location
- Right Center
Will it fit?
The product
- Width
- 30⅝"
- Height
- 2⅝"
- Depth
- 21⅜"
Cutout
- Cutout width
- 28½"
- Cutout height
- 5"
- Cutout depth
- 19⅝"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
