30" Electric Cooktop — Black Stainless Steel (GCCE3070BD)
SKU GCCE3070BD · Model GCCE3070BD · Black Stainless Steel
Color: Black Stainless Steel
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire Gallery
Features in detail
Five Element Cooktop
With five elements, this cooktop is designed to handle all of your cooking needs, including our powerful 3,200-Watt EvenTemp™ Element, a versatile 2-in-1 Dual Element, and convenient Keep Warm Zone.

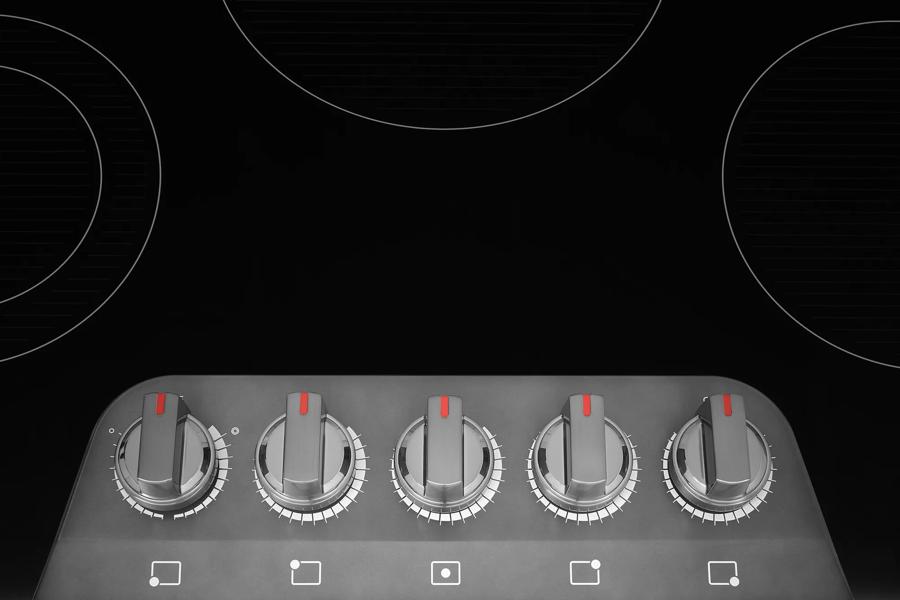

Backlit LED Knobs
Backlit LED knobs look great and provide visual heat awareness. White glows while cooking. Red glows after shutoff while the surface remains hot.
Frigidaire® Fit Promise
We promise that your new 30" Frigidaire electric cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
Powerful 3,200-Watt Element
Experience fast, even heat with our 3,200-Watt EvenTemp™ element—reducing hot and cold spots for consistent results every time.

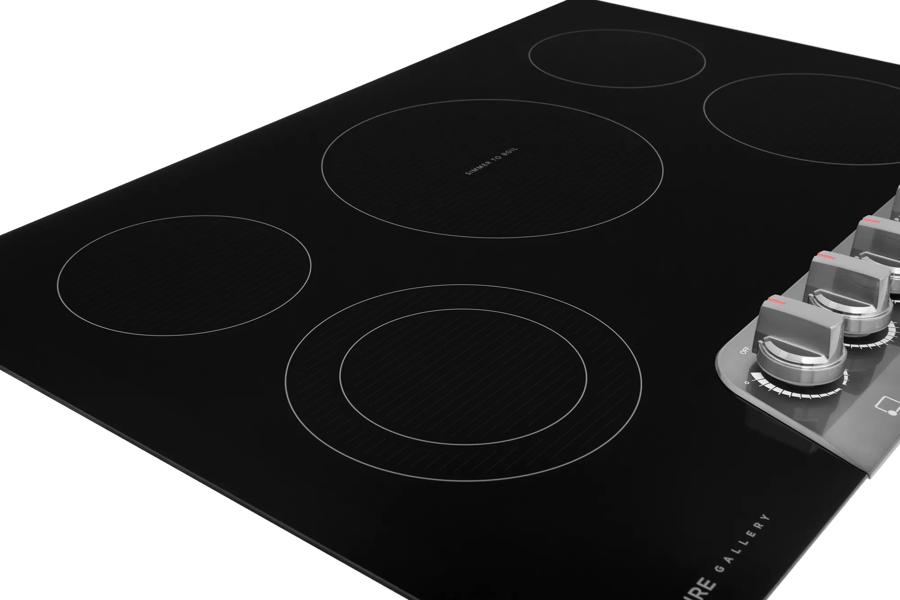

2-in-1 Dual Element
Expands from 9" to 12" to accommodate larger pots or cookware.

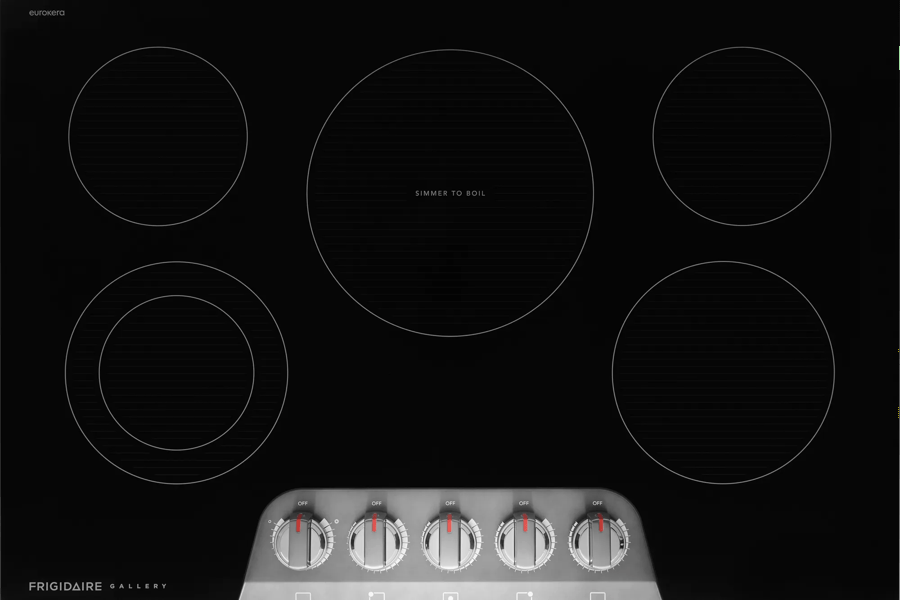

Ceramic Glass Cooktop
Easily wipe away spills from the smooth glass cooktop.
Front Control Design
Controls that are located on the front of the cooktop allow you to adjust the temperature without reaching over hot items.
Keep Warm Zone
Keeps food warm until everything - and everyone - is ready.
Approved Over Frigidaire® Electric Wall Ovens
Cooktops are approved for installation above any of our Frigidaire electric wall ovens.
Description
Enjoy power and consistency with the 3,200-Watt EvenTemp™ cooktop element.
Specifications
Configuration
- Color / Finish
- Black Stainless Steel
Dimensions
- Cutout Depth
- 19.6 in
- Cutout Height
- 5 in
- Cutout Width
- 28.5 in
- Depth
- 21.4 in
- Height
- 2.6 in
- Weight
- 31 lb
- Width
- 30.6 in
- Maximum Cutout Depth
- 20 1/2"
- Maximum Cutout Width
- 29 7/8"
- Minimum Cutout Depth
- 19 5/8"
- Minimum Cutout Width
- 28 1/2"
Features
- ADA Compliant
- Yes
- Cooktop Technology
- Radiant
Electrical
- Amperage
- 38.3 A
- Voltage
- 240 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- CSA Listed
- Yes
- UL Listed
- Yes
Cooktop
- Cooking Surface Type
- Smooth
- Hot-Surface Indicator Light
- Yes
Cooktop Performance
- Center Rear Element Burner
- 3200 Watts
- Center Rear Element Burner Size
- 9"
- Left Front Element Burner (Large)
- 1800 Watts
- Left Front Element Burner (Small)
- 750 Watts
- Left Front Element Burner Size (Large)
- 7"
- Left Front Element Burner Size (Small)
- 5"
- Left Rear Element Burner
- 1200 Watts
- Left Rear Element Burner Size
- 6"
- Right Front Element Burner
- 1800 Watts
- Right Front Element Burner Size
- 7"
- Right Rear Element Burner
- 1200 Watts
- Right Rear Element Burner Size
- 6"
Electrical Specifications
- Amps @ 240 Volts
- 38.3 Amps
- Connected Load @ 240V
- 9.2 kW
- Minimum Circuit Required
- 40 Amps
- Voltage Rating
- 240 V
Exterior
- Backlit Knobs
- Yes
General Specifications
- AB-1200
- Information available at frigidaire.com/en/ab1200
- Frigidaire Fit Promise
- Yes
- Product Weight
- 31 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Installed Over a Wall Oven
- Yes
- Power Supply Connection Location
- Right Center
Will it fit?
The product
- Width
- 30⅝"
- Height
- 2⅝"
- Depth
- 21⅜"
Cutout
- Cutout width
- 28½"
- Cutout height
- 5"
- Cutout depth
- 19⅝"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
