30" Gas Cooktop — Stainless Steel (GCCG3048AS)
SKU GCCG3048AS · Model GCCG3048AS · Stainless Steel
Color: Stainless Steel
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire Gallery
Features in detail

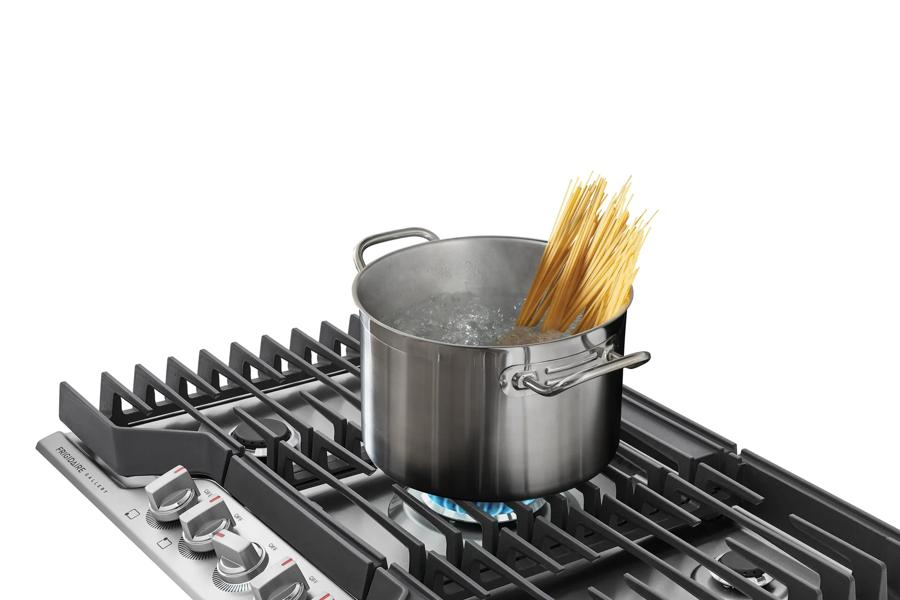

PowerPlus® Burner
This powerful 18,000-BTU PowerPlus® Burner delivers rapid heat for quick boils, while EvenTemp™ technology helps keep heat evenly distributed for consistent results - ideal for everyday cooking.

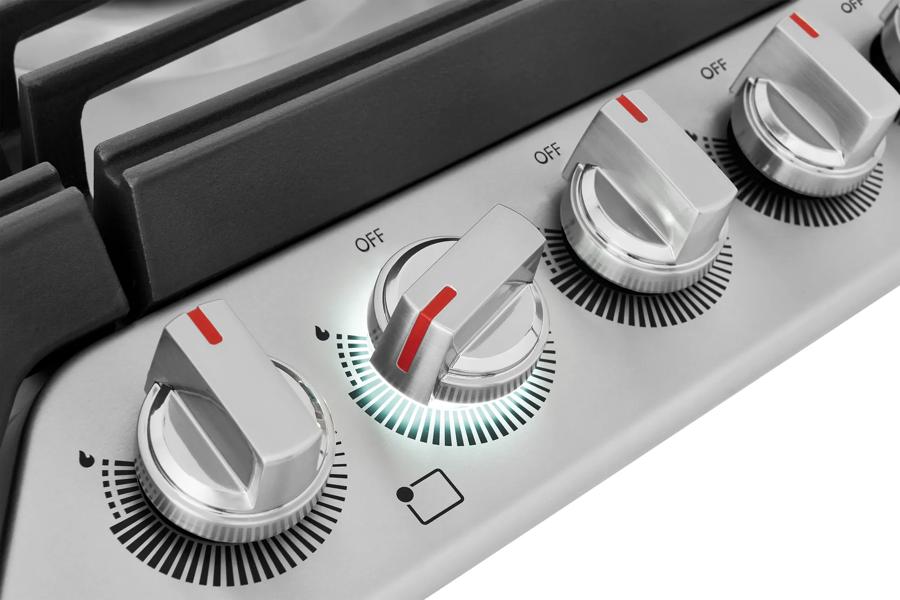

Backlit LED Knobs
Backlit LED knobs look great and provide visual heat awareness. White glows while cooking. Red glows after shutoff while the surface remains hot.

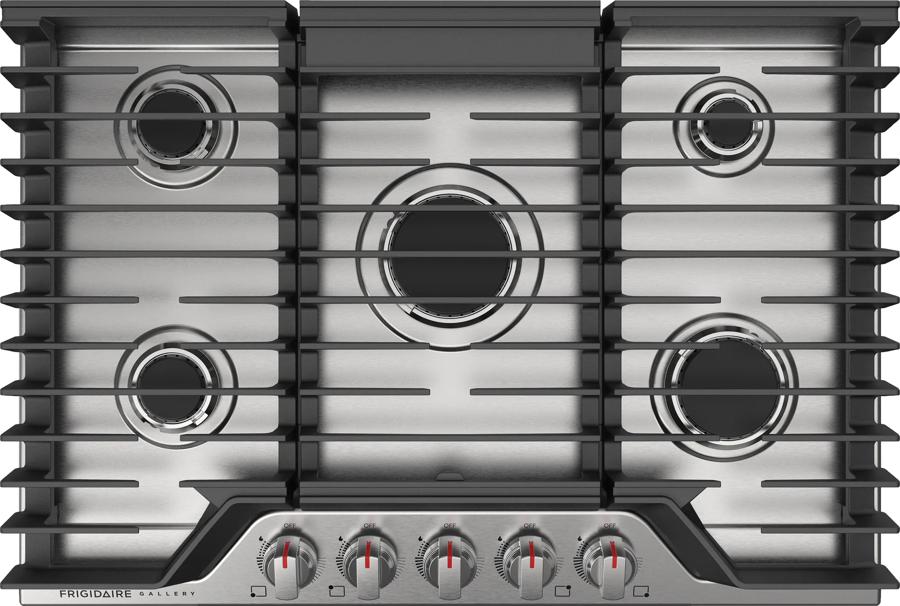

Five Burner Cooktop
This cooktop features five burners including a 5,000-BTU simmer burner and an 18,000-BTU PowerPlus® Burner that gets meals on the table, faster.

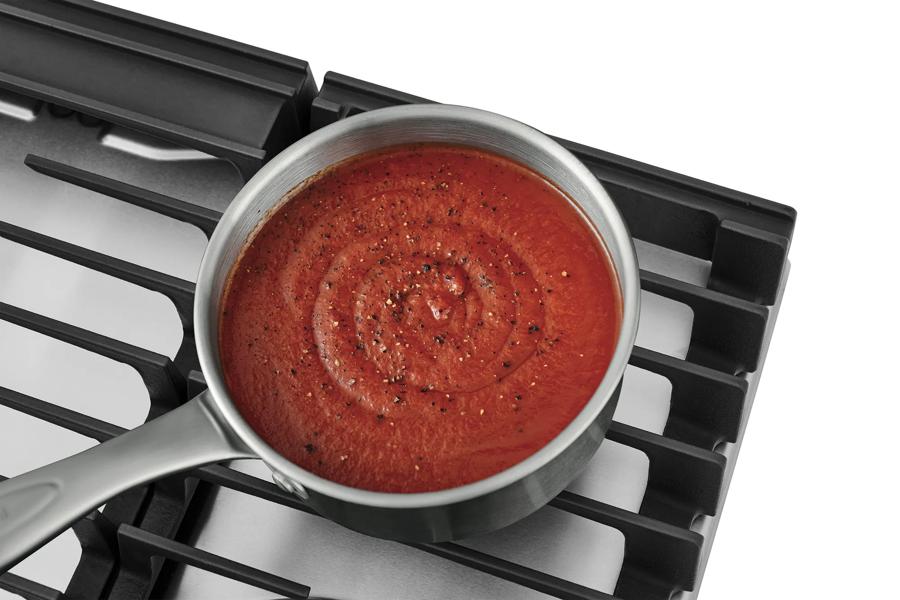

Low Simmer Burner
Delivers a low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.

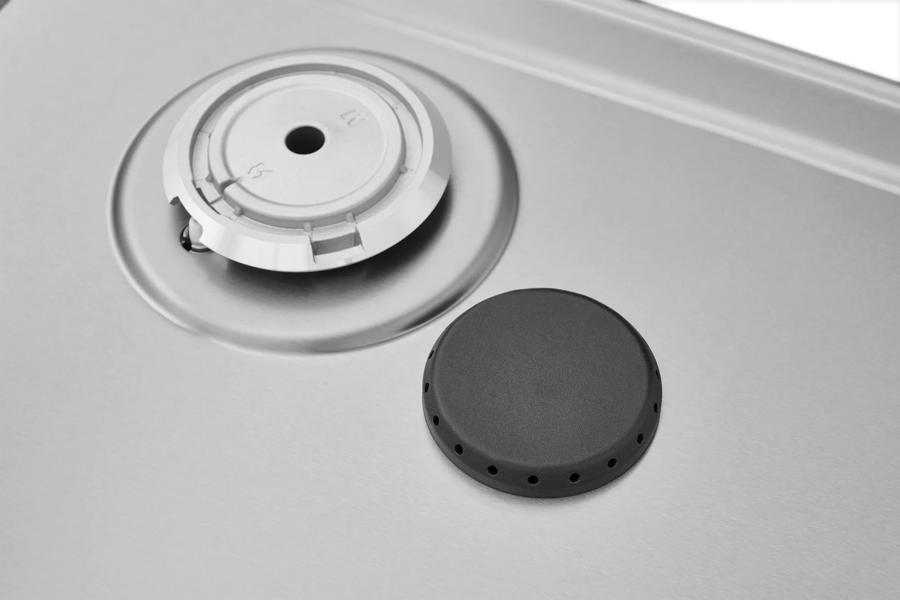

Dishwasher Safe Burner Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.

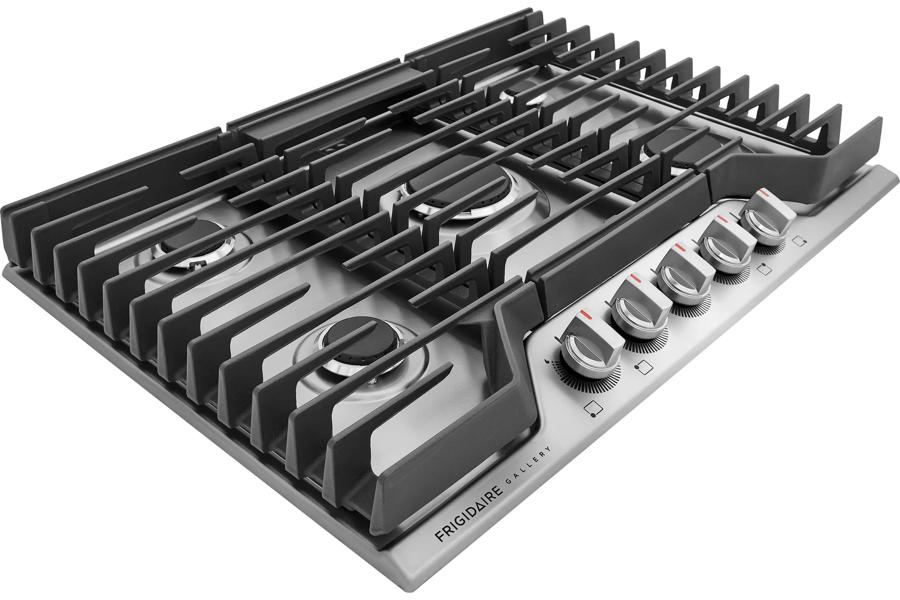

Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
Spill Safe® Cooktop
Clean-up is less of a hassle with the recessed cooktop that contains spills and common cooking messes.
Frigidaire® Fit Promise
We promise that your new 30" Frigidaire Gallery gas cooktop will fit your existing cut-out, or we will reimburse up to one hundred dollars for professionally modifying the countertop.1
Installation over Wall Oven Approved
Cooktops are approved for installation above any of our Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
Description
This gas cooktop features five burners, including our 18,000-BTU PowerPlus® Burner.
Specifications
Configuration
- Color / Finish
- Stainless Steel
Dimensions
- Cutout Depth
- 19 in
- Cutout Height
- 7.5 in
- Cutout Width
- 27.3 in
- Depth
- 21 in
- Height
- 2.4 in
- Weight
- 43 lb
- Width
- 30 in
- Maximum Cutout Depth
- 20"
- Maximum Cutout Width
- 29 5/16"
- Minimum Cutout Depth
- 19"
- Minimum Cutout Width
- 27 1/4"
Features
- ADA Compliant
- Yes
- Cooking Zones
- 5
- Cooktop Technology
- Gas
Electrical
- Voltage
- 120 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- CSA Listed
- Yes
- UL Listed
- Yes
Cooktop
- Cooking Surface Type
- Gas
- Grate Material
- Cast Iron
- Grate Quantity
- 3
- Grate Style
- Continuous
- Total Number of Burners
- 5
Cooktop Performance
- Center Front Element Burner
- 18000 BTU
- Left Front Element Burner
- 9500 BTU
- Left Rear Element Burner
- 7500 BTU
- Right Front Element Burner
- 12000 BTU
- Right Rear Element Burner
- 5000 BTU
Electrical Specifications
- Minimum Circuit Required
- 5 Amps
- Voltage Rating
- 120 V
Exterior
- Backlit Knobs
- Yes
General Specifications
- Frigidaire Fit Promise
- Yes
- Product Weight
- 43 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Gas Supply Connection Location
- Top Right
- Installed Over a Wall Oven
- Yes
- LP Conversion Kit Included
- Yes
- Power Cord Included
- Yes
- Power Supply Connection Location
- Top Right
Will it fit?
The product
- Width
- 30"
- Height
- 2.44"
- Depth
- 21"
Cutout
- Cutout width
- 27¼"
- Cutout height
- 7½"
- Cutout depth
- 19"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
