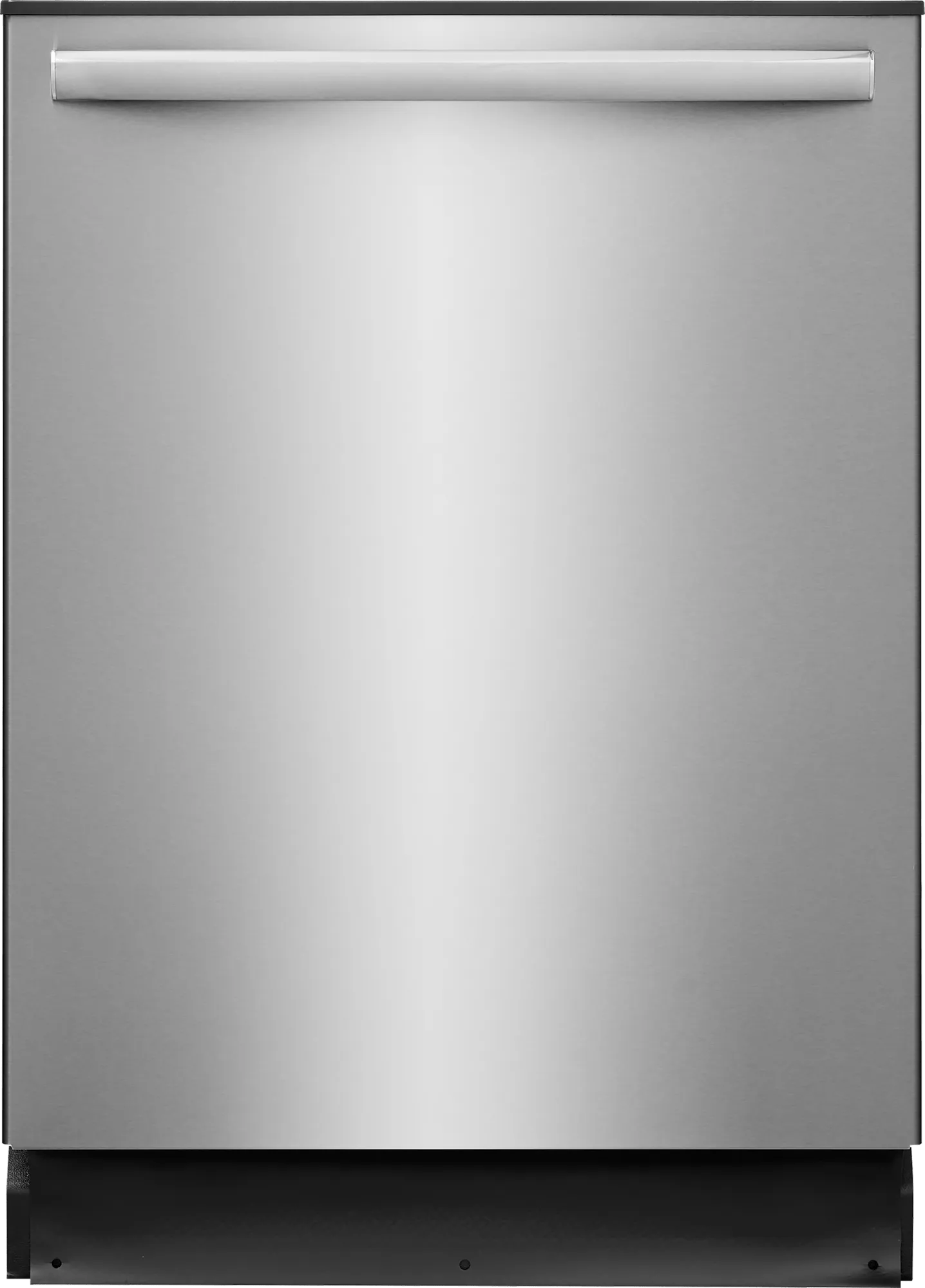

24" Hybrid Tub Dishwasher
SKU GDHH4527AF · Model GDHH4527AF · Stainless Steel
How do you want your item?
Live stock by store + same-day pickup ETA — syncs with UpChannels inventory
Connects to UpChannelsMore from Frigidaire Gallery
Features in detail

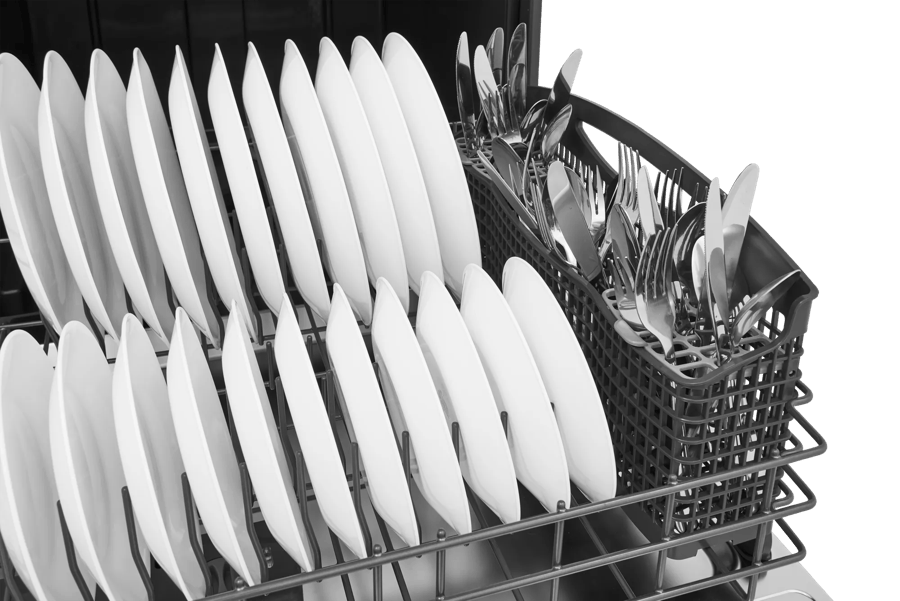

DishSense® Sensor Technology
Our sensor technology delivers better cleaning by matching performance to soil levels

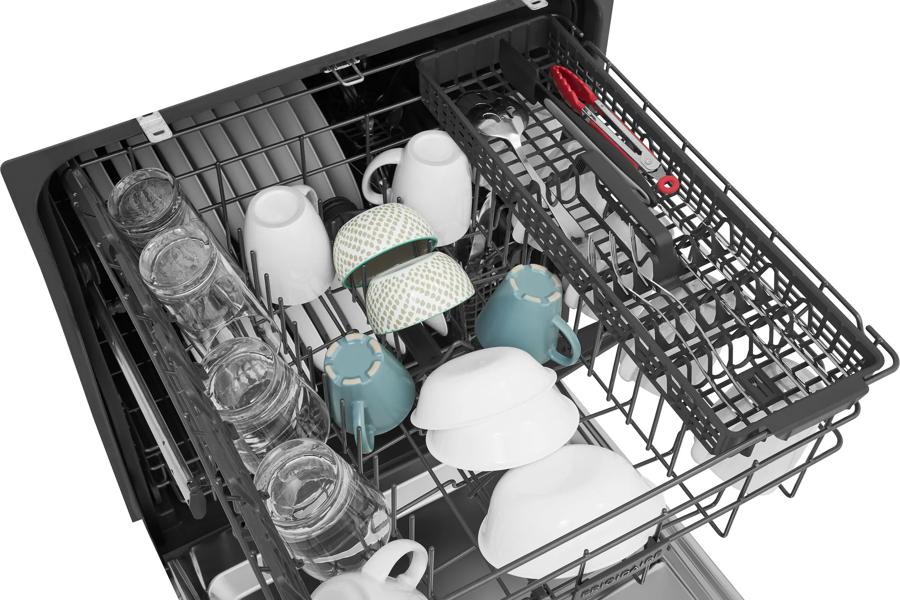

FlexSlide Upper Tray
A movable upper tray lets you maximize every inch of space, perfect for silverware, utensils, and kitchen tools

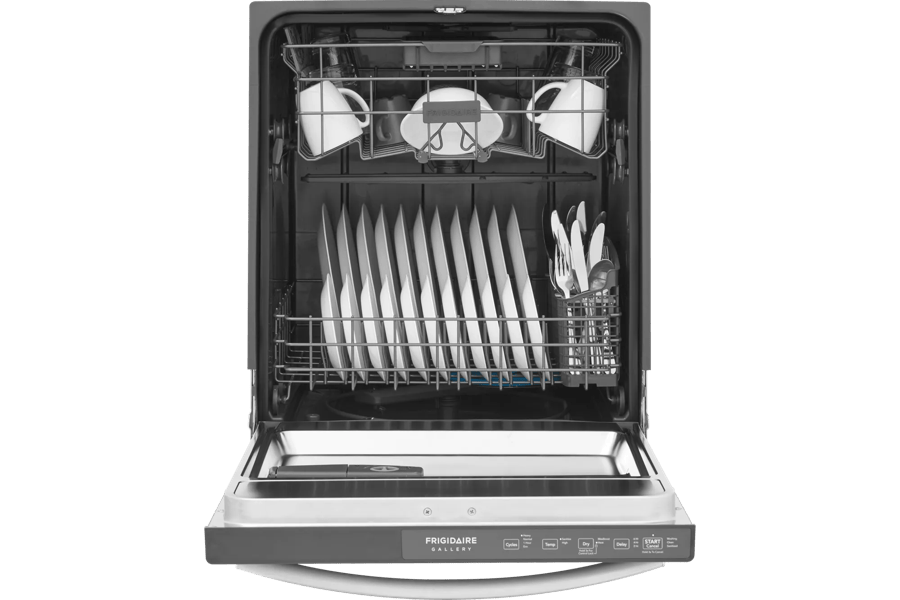

Enhanced Drying with MaxBoost™ Dry
MaxBoost™ Dry technology circulates heated air to push out moisture and pull in fresh, dry air, so you don’t have to hand dry

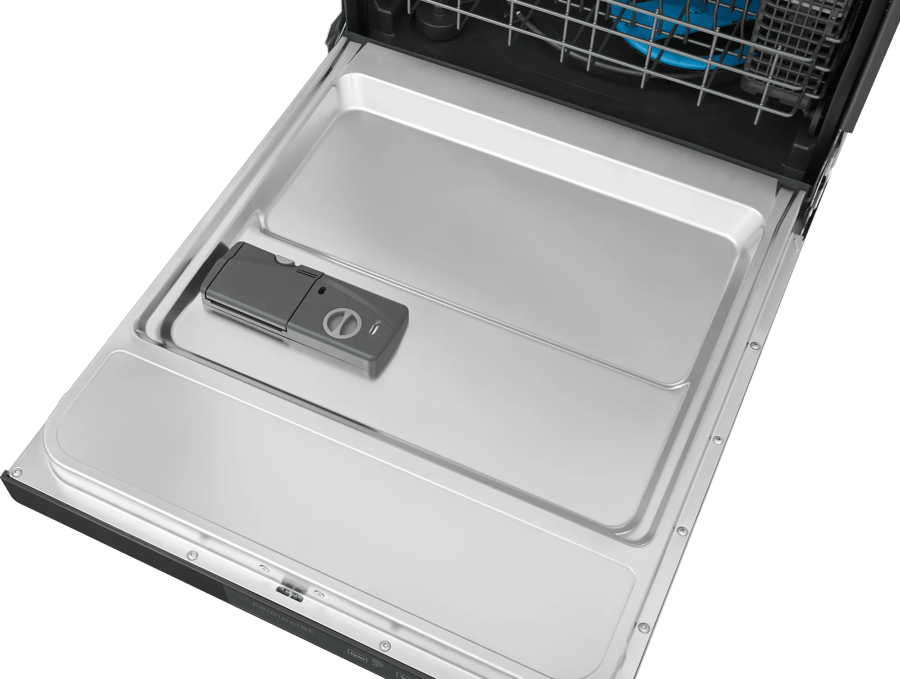

Premium Stainless-Steel Inner Door
Stainless Steel is durable, sleek, resists odors and stains, and is easy-to-clean

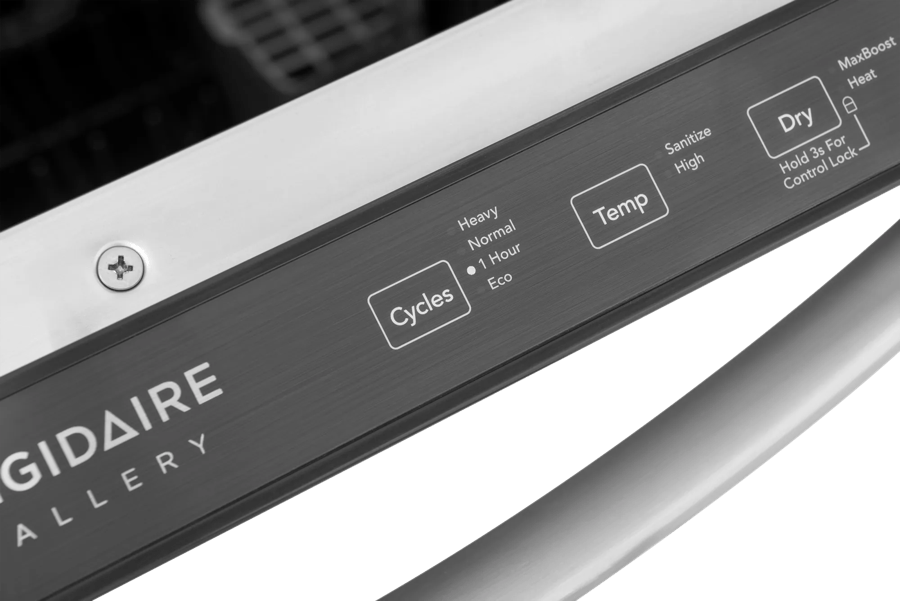

1-Hour Wash
Clean dishes in just 1 hour, perfect for busy nights or hosting, with the option to add MaxBoost™ Dry for sparkling, cabinet-ready results

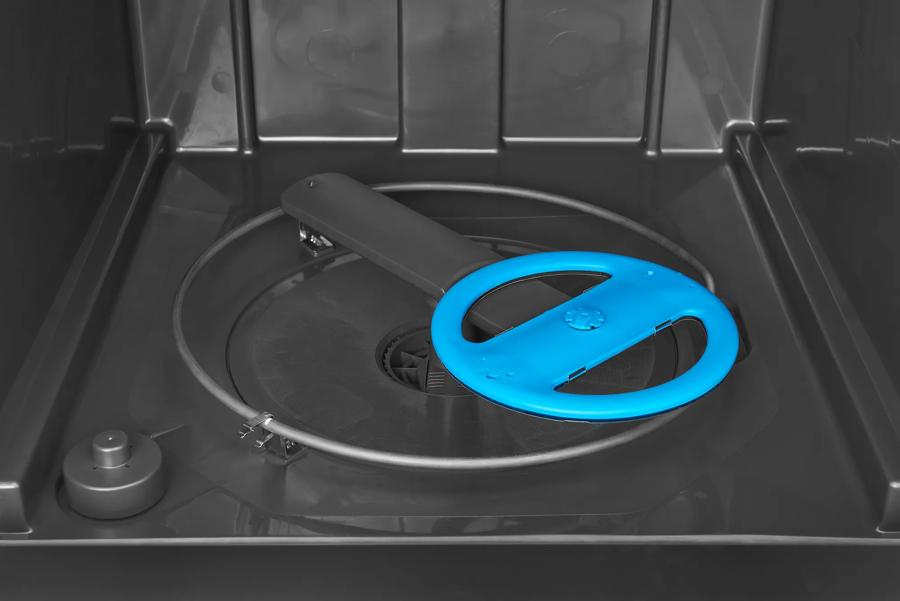

OrbitClean® Wash System
OrbitClean® wash system uses a rotating wash arm with multi-directional spray patterns for maximum coverage without using more water
Quiet as a whisper at 51 dBa
Watch TV or have a conversation, our quiet dishwasher won't disrupt your home
Energy Star® 7.0 Certified
Certified to the latest ENERGY STAR® 7.0 water and energy consumption standards
Status Indicator Floor Beam
Always know your dishwasher's status, floor beam shines blue when running and white when cycle is complete
Sanitize Option
Remove 99.9% of common household bacteria with NSF®-Certified Sanitize Option
Overflow Detection System
Help protect your kitchen with an overflow detection system that automatically stops water if levels get too high, preventing leaks
Removable Racks
Make loading the dishwasher easier with removable racks to allow for your largest items
Description
This 24" dishwasher delivers a complete clean and dry with the OrbitClean™ wash system and MaxBoost™ Dry, plus a FlexSlide tray for utensils and a 1-hour wash and dry.
Specifications
Configuration
- Color / Finish
- Stainless Steel
Capacity
- Place Settings
- 14
Dimensions
- Depth
- 25 in
- Depth (door open)
- 49.3 in
- Depth (with handle)
- 26.8 in
- Height
- 33.5 in
- Weight
- 86 lb
- Width
- 24 in
- Depth With Door Open
- 49 1/4"
- Maximum Height
- 35"
- Minimum Height
- 33 1/2"
Features
- Sound Level
- 51 dBA
- Tub Material
- Plastic
Energy
- Annual Energy Use
- 240 kWh/yr
- ENERGY STAR Certified
- Yes
Electrical
- Amperage
- 10 A
- Voltage
- 120 V
Warranty
- Warranty (labor)
- 1 yr
- Warranty (parts)
- 1 yr
Certifications and Approvals
- CEE Tier
- Tier 1
- cUL Listed
- Yes
- ETL Listed
- Yes
- Meets ASSE 1006 Requirements
- Yes
- NSF Certified
- Yes
- UL Listed
- Yes
Controls
- Control Lock
- Yes
- Delay Start Hours
- 2-4-6 Hours
- Rinse Aid Indicator
- Yes
Dishwasher
- Detergent Dispenser
- Yes
- Filter Material
- Plastic
- Filter Trap
- Removable
- Filtered Water
- 100 %
- Hard Food Disposer or Filtration
- Yes
- Interior Light
- No
- Lower Spray Arm
- Orbit
- Middle Spray Arm
- Bi-Beam
- Motor Speeds
- Single-Speed
- Place Setting Capacity
- 14
- Rinse Aid Dispenser
- Yes
- Smart Soil Sensor
- Yes
- Status Indicator Floor Beam
- Yes
- Tub Color
- Midnight Ink
- Tub Design
- Tall Tub
- Tub Material
- Hybrid
- Upper Spray Arm
- Blade
- Wash Levels
- 5
- Wash System
- Direct Feed
Dishwasher Cycles
- Energy Saver
- Yes
- Heavy
- Yes
- Normal
- Yes
- Number of Cycles
- 4
- Quick
- Yes
Dishwasher Options
- Dry - Heat
- Yes
- Dry - MaxBoost
- Yes
- Drying System
- MaxBoost
- High Temperature
- Yes
- Start/Cancel
- Yes
- Washing Temperature - High
- Yes
- Washing Temperature - Sanitize
- Yes
Electrical Specifications
- Amps @ 120 Volts
- 10 Amps
- Connected Load @ 120V
- 1.2 kW
- Voltage Rating
- 120 V
Exterior
- Door Latch
- Pull
- Door Type
- StayPut
- Exterior Finish
- Smudge-Proof® Stainless Steel
General Specifications
- Annual Energy
- 240 kWh
- Product Weight
- 86 lbs
- Prop 65 Label
- Yes
- Warranty - Labor
- 1 Year
- Warranty - Parts
- 1 Year
Installation
- Connection Location
- Right Bottom
- Number of Leveling Legs
- 4
- Water Inlet Location
- Left Bottom Front
Lower Rack
- Maximum Height Clearance
- 13"
- Minimum Height Clearance
- 11"
- Number of Silverware Basket
- 1
- Number of Silverware Basket Lids
- 2
- Rack Coating
- PVC
- Rack Type
- Standard
Upper Rack
- Fold-Down
- Yes
- Minimum Height Clearance
- 8"
- Rack Coating
- PVC
- Rack Handles
- No
- Rack Spacer
- Yes
- Rack Type
- Standard
- Silverware Tray
- Yes
Will it fit?
The product
- Width
- 24"
- Height
- 33½"
- Depth
- 25"
- Depth with handle
- 26¾"
Installed, with the door open
- Depth, door openhow far it projects in use
- 49¼"
Manufacturer measurements in inches. Measure your opening before ordering — allow for flooring, baseboard and the door swing.
Warranty
- Parts
- 1 Year
- Labor
- 1 Year
As published by the manufacturer. Confirm terms before purchase.
